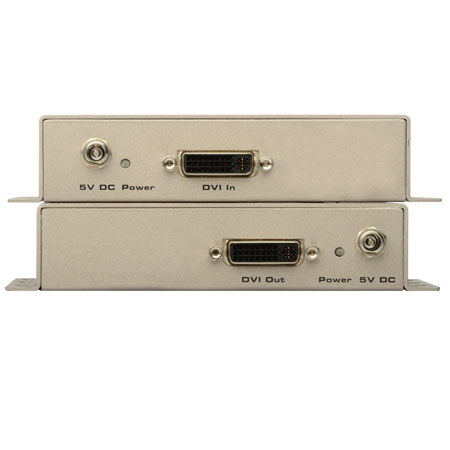

Gefen DVI Extra Long Range Extender, 1.2V p-p Input Video Level

See all Gefen items
SKU: GEDVIELR MFR: EXT-DVI-ELR
Gefen : Picture 1 thumbnail Gefen : Picture 2 thumbnail Gefen : Picture 3 thumbnail

About Gefen

The Gefen DVI Extra Long Range Extender over Single Cat-5 Cable allows you to extend any DVI source to a monitor, touch screen display, or other digital signage applications placed at a distance of up to 330' (100m) using a single Cat-5 cable. It supports DVI resolutions up to 1920 x 1200 @ 60 Hz or 1080p.

The Gefen ELR technology, in addition to delivering uncompressed DVI video over a single Cat-5 cable, makes installation easy. There is zero signal loss in transmissions over Cat-5 cable. The Extra Long Range Extender has EDID management that helps in local management and pass-through. It features locking power connectors for securing the connections, a power save mode to reduce power consumption and is wall mountable.

Gefen Features

  • Supports DVI Resolutions to 1920x1200@60 Hz or 1080p at 330 feet (100 meters)
  • EDID Management for Local and Pass-through modes
  • Locking Power Supplies for secure connections
  • Wall mountable

Gefen Specifications

Maximum Pixel Clock
165 MHz
Input Video Signal
1.2 Volts p-p
Input DDC Signal
5 Volts p-p (TTL)
DVI Connector (Sender / Receiver)
DVI-I, 29-pin, female (digital only)
Link Connector (Sender / Receiver)
RJ-45
Power Supply (Sender / Receiver)
5V DC
Power Consumption
10 W per unit (max.)
Operating Temperature
0 - 40 deg.C
Dimensions (W x H x D)
5.0" x 1.25" x 3.4" (12.7 x 3.2 x 8.6cm)
