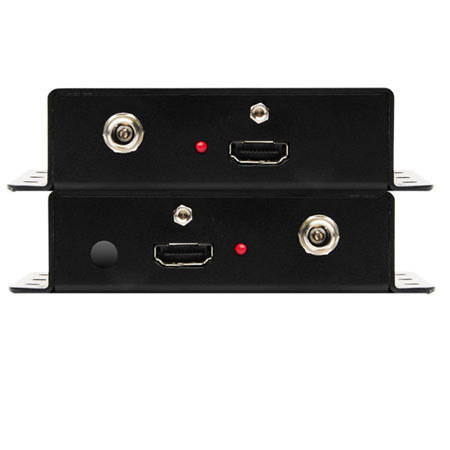

Gefen ToolBox Extender for HDMI 3DTV, 225MHz Bandwidth, Black

See all Gefen items
Gefen : Picture 1 thumbnail Gefen : Picture 2 thumbnail Gefen : Picture 3 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Gefen

The Gefen ToolBox Extender for HDMI 3DTV extends HDMI including multi-channel digital audio at resolutions of up to 1080 Full HD up to 330 feet (100 meters) away from any Hi Def source using one CAT-5e cable for the extension. This product also provides an IR back channel to control AV sources using the same CAT-5 cable extension. Using this channel with the built-in IR "eye" on the receiver, or an optional RMT IR Extender, simply point IR remote(s) of the A/V device towards the display to control Hi-Def sources as if they were located in the same room or proximity to the display.

Gefen Features

  • Extends 1080p Full HD and 3DTV up to 330 feet (100 meters) using one CAT5 (or better) cable
  • Allows IR remote control of source devices
  • Supports high bit-rate audio formats (Dolby TrueHD / DTS Master Audio)
  • Fully HDCP-compliant
  • Locking power supplies
  • Easy surface mounting

Gefen Specifications

Video Amplifier Bandwidth
225 MHz
Input Video Signal
1.2 V p-p
Input DDC Signal
5 V p-p (TTL)
Maximum Video Resolution
1080p, supports 3D HDMI signals
Video Input Connector Sender
HDMI Type A 19-pin, female
Video Output Receiver
HDMI Type A 19-pin, female
Link Connectors
RJ-45, Shielded (Sender/Receiver)
Indicator LED
Red power-on LED
IR Extender Port
3.5mm mini-stereo jack (Receiver)
IR Blaster Port
3.5mm mini-mono jack (Sender)
Power Supplies
(2) 5V DC, Locking
Power Consumption
10W (max.)
Operating Temperature
0 - 40 Deg. C
Dimensions (W x H x D)
4.5 x 3.4 x 1" / 11.43 x 8.63 x 2.54 cm
