Gefen

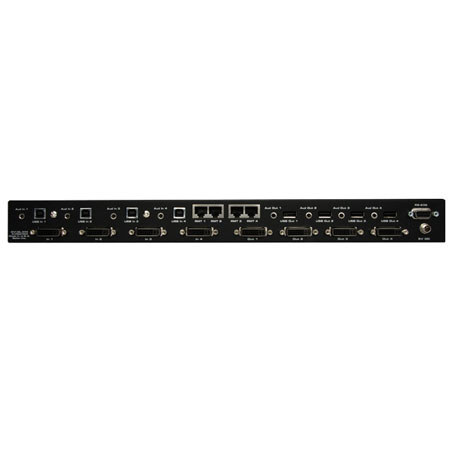

Gefen 4x4 DVI KVM Dual-Link Switcher, 2 x 165MHz Bandwidth, 1.2 Volts p-p Input Video Signal

SKU: GEKVM444DL MFR: EXT-DVIKVM-444DL
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,499.00 $60 per week
Free Shipping
Qty:
Add to Wishlist In Stock

About this item

The Gefen 4x4 DVI KVM Dual-Link Switcher allows you to route any of (4) cross-platform DVI dual-link computers to any of (4) DVI dual-link displays. This solution allows you to set up workstations that can access any of multiple computers by remote control. The workstations can be set up locally or may be placed at great distances from the switcher by using separately available extenders.

When used with computers, USB and audio matrix control signals follow the DVI dual-link input for optimal control. This device maintains resolution with no signal loss. It supports resolutions up to 3840 x 2400 and DDWG standards for DVI monitors. This unit can be managed via an included IR remote control. Furthermore, it can be used as a standalone device or mounted in a rack using the included rack ears.

What's Included With This Item

  • Gefen 4x4 DVI KVM Dual-Link Switcher -RMT-16IR Infrared Remote Control
  • 5V Power Supply
  • 4 x 6ft DVI-DL Cables
  • 4 x 6ft USB Cables
  • Rack Ears
  • Gefen 2 Years Warranty

Key Features

  • Increases productivity by providing access to four computers from four Dual Link workstations
  • Maintains highest resolution digital video with no loss of quality
  • Supports either PC or Mac USB keyboards/mice
  • Supports analog audio matrixing
  • Discrete IR remote (included)
  • Supports single and dual link resolutions up to 3840x2400
  • Supports DDWG standards for DVI monitors

Technical Specs

Video Amplifier Bandwidth 165MHz x 2
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Dual Link Maximum Resolution 3840x2400 @ 60 Hz
DVI Connector DVI-I 29 pin female (digital signal only)
USB Input Connectors Type "B"
USB Output Connectors Type "A"
Audio Connectors 3.5mm mini stereo jack
Power Supply 5V DC
Power Consumption 40 watts (max)
Rack mountable 1U Rack Space
Dimensions( W x H x D) 17.1 x 1.8 x 4.2" / 43.43 x 4.57 x 10.66 cm
