Gefen

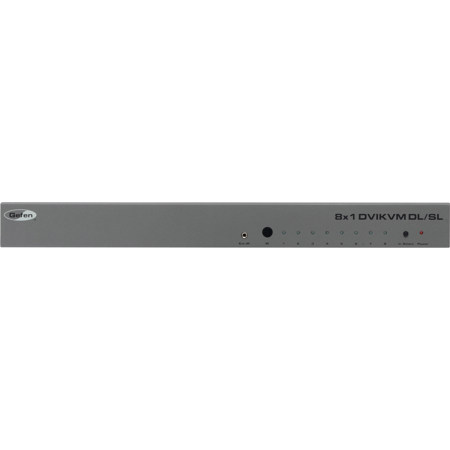

Gefen 8x1 DVI KVM Dual-Link Switcher, 2 x 165MHz Bandwidth, 1.2 Volts p-p Input Video Signal

SKU: GEKVM841DL MFR: EXT-DVIKVM-841DL
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$999.00 $40 per week
Free Shipping
Qty:
Add to Wishlist In Stock

About this item

The Gefen 8x1 DVI KVM Dual-Link Switcher allows you to switch between (8) cross-platform DVI computers using just one DVI display and USB 2.0 keyboard & mouse. This unit supports single- and dual-link DVI. Use this solution to save time and avoid duplicating hardware purchases by managing multiple computers with a single set of controls. This unit supports resolutions up to 3840 x 2400. It can be controlled via the included IR remote control. Also supported is DDWG standards for DVI monitors. It can be used as a standalone solution or mounted in a rack using the included rack ears.

What's Included With This Item

  • Gefen 8x1 DVI KVM DL Switcher
  • 8 x 6' DVI Cables (M -M)
  • 8 x 6' USB Cables (A-B)
  • 8 x 6' Audio Cables
  • 5V DC Power Supply
  • RMT-8IR Remote Control
  • Rack Ears
  • User Manual
  • Gefen 2 Years Warranty

Key Features

  • Supports EDID Management (local or pass-through)
  • Switches easily between any eight DVI-DL computers with USB 2.0 and audio
  • Maintains highest resolution single link and dual link video
  • Saves space on your desktop
  • Use either PC or Mac USB keyboard/mouse
  • Discrete IR remote (included)
  • Supports resolutions up to 1920x1200 and 3840x2400
  • Supports DDWG standards for DVI monitors

Technical Specs

Video Amplifier Bandwidth 165MHz x 2
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Maximum resolutions 1920 x 1200 (single link), 3840x2400 (dual link)
DVI Connector DVI-I 29 Pin Female (digital only)
USB Input Connection Type "B"
USB Output Connection Type "A"
Audio Connector 3.5mm mini Stereo
RS-232 port DB9
Power Supply 5V DC
Power Consumption 12.5 Watts (minimum) / 32.5 Watts (maximum)
Rackmountable 1U Rack space
Dimensions( W x H x D) 17.1 x 1.8 x 4.2" / 43.43 x 4.57 x 10.66 cm
