Gefen VGA RS232 Extender Sender With Receiver, 350MHz Bandwidth

See all Gefen items
SKU: GERS232141 MFR: EXT-VGARS232-141
Gefen RS232: Picture 1 thumbnail Gefen RS232: Picture 2 thumbnail Gefen RS232: Picture 3 thumbnail
Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Gefen RS232

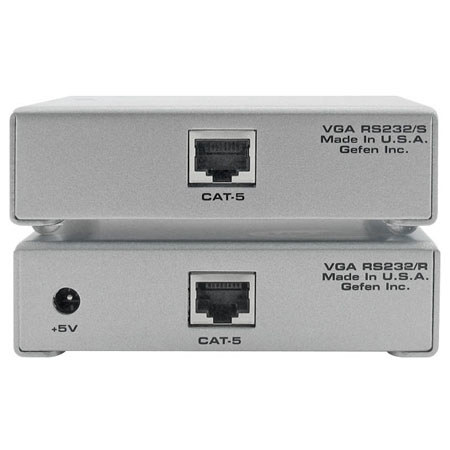

The Gefen VGARS232-141 VGA & RS232 Extender is a transmitter and matching receiver kit that allows a user to separate computer components up to 330' (100 m)-far beyond the reach of standard desktop cables. It uses inexpensive and common CAT5 network cable to connect the sender and receiver over great distances. It supports HD video and does not degrade the resolution during transmission. Sample applications include broadcast or security installations where a computer needs to be in a remote and/or secure location away from the displays.

Gefen RS232 Features

  • Extends any VGA or high definition component display and RS-232 device up to 330 feet (100 meters)
  • Trim pot and dip switches for fine video equalization
  • Perfect for digital signage applications
  • One CAT-5 cable for extension
  • Supports resolutions up to 1080p, 2K and 1920 x 1200

Gefen RS232 Specifications

Video Amplifier Bandwidth
Input Video Signal
1.2 Volts p-p / Input
Horizontal Frequency Range
15-70 KHz
Vertical Frequency Range
30 - 170 Hz
Video In
HD-15 male
Video out
HD-15 female
RS232 Input Connector
DB-9 female
RS232 Output Connector
DB-9 male
Link Connector
RJ-45 Shielded
Power Supply
Power Consumption
5 Watts (max.) each
Dimensions( W x H x D)
4 x 1.2 x 3" / 10.16 x 3.04 x 7.62 cm
