Gefen 4x2 Matrix for HDMI, White

Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

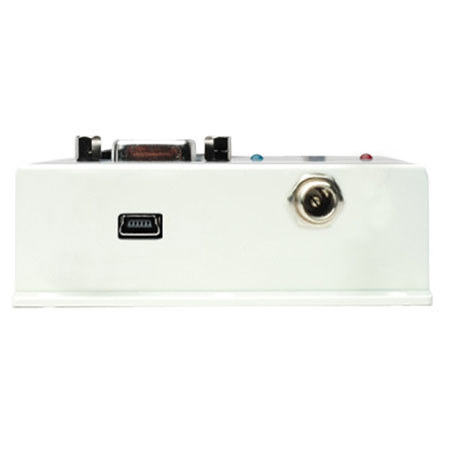

The Gefen 4x2 Matrix for HDMI (White) is designed to be both compact and lightweight. The unit can take (4) HDMI devices and output to up to (2) discreet HDMI display. Ideal for Blu-ray players, satellite set-top boxes and much more, the unit provides a simple and reliable way to extend multiple devices to (2) outputs. The device is compliant with HDCP, HDMI 1.1-1.3 and DVI 1.0, as well as being RoHS certified.

What's Included With This Item

  • Gefen 4x2 Matrix for HDMI
  • 4 x 6' HDMI Cables (CAB-HD-LCK-06MM)
  • IR Remote Control Unit (RMT-8MIR)
  • 5V DC Locking Power Supply (EXT-PS526AIP-LP)
  • Quick Start Guide (QSG-GTB-MHDMI1.3-442)
  • Gefen 2 Years Warranty

Key Features

  • Switch easily between (4) HDMI 1.3 sources to up to (2) displays
  • Maintains high resolution video; beautiful, sharp HDTV resolutions up to 1080p @ 60Hz
  • Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
  • Supports DVI source and DVI displays using HDMI-to-DVI converter cable
  • Extends the range of HDMI compliant devices by equalizing and reclocking the HDMI signal
  • HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution
  • HDMI input/output cables may be up to 6/10 meters with 1080p/12-bit resolution
  • Serial RS-232 remote port
  • HDMI and HDCP pass-through
  • RoHS, CE and UL Certified; Complies with US/EU Standards
  • Wall-mountable
  • HDMI 1.3, HDMI 1.2, HDCP 1.1 and DVI 1.0 Compliant

Technical Specs

Video Amplifier Bandwidth 225 MHz
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Maximum Video Resolution 1080pat60 Hz up to 12-bit Deep Color
HDMI Connector Type A 19 pin female; 4 x input, 2 x output
Power Supply 5V DC with locking power connector
Power Consumption 20 Watts (max)
Operating Temperature 0-40 degrees C
Dimensions (WxHxD) 3x10-1/2x3/4" / 7.62x26.67x1.90cm
