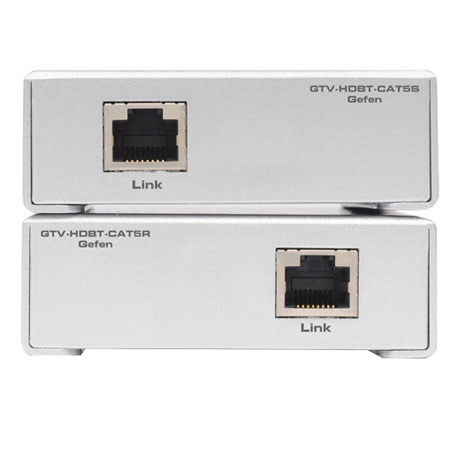

Gefen HDBaseT Extender for HDMI with One CAT-5e Cable

Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

The Gefen HDBaseT Extender for HDMI uses one CAT-5e/CAT-6a cable to extend 3DTV over 230 feet (70 meters) away from the source. It supports resolutions up to 1080p Full HD and high bit-rate audio formats such as Dolby TrueHD and DTS-HD Master Audio. 3D content is supported when a 3D-capable display and 3D source are connected. DVI-D is also supported when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several different commercial displays.

By using standard CAT-5e cables, it makes HDMI signal extensions easier to install within a room or through walls. The Extender's digital transmission uncompressed method insures 100% signal integrity. It consists of a Sender and a Receiver unit. The HDMI source (such as a set-top box, Blu-ray player, or gaming console) connects to the Sender unit with the supplied 6 foot HDMI cable. The Receiver unit connects to the HDTV display in the same way - up to 230 feet (70 meters) away. One CAT-5e cable links the Sender to the Receiver unit. Power is applied to the Sender and the Receiver with the two included 5 V DC power supplies. A crisp, flawless high-definition picture appears on the HDTV display.

What's Included With This Item

  • Gefen Extender for HDMI Over One CAT5 Sender Unit (GTV-HDBT-CAT5S)
  • Extender for HDMI Over One CAT5 Receiver Unit (GTV-HDBT-CAT5R)
  • 6' Locking HDMI Cable (CAB-HD-LCK-06MM)
  • 2 x 5V/2.6A Locking Power Supplies (EXT-PS526AIP-LP)
  • Set of Mounting Plates (EXT-MP20)
  • Quick-Start Guides (QSG-GTV-HDBT-CAT5)
  • Gefen 2 Years Warranty

Key Features

  • Resolutions up to 1080p Full HD
  • HDCP-compliant
  • 12 bit Deep Color
  • LPCM 7.1 Audio, Dolby TrueHD and DTS-HD Master Audio
  • 3DTV Pass-through
  • CEC Pass-through
  • Lip Sync Pass-through
  • Extends HDMI up to 230 feet (70 meters) using one CAT-5e cable
  • Uses HDBaseT Technology
  • Locking power supplies

Technical Specs

Maximum Pixel Clock 225 MHz
Video Input Connector (Sender): HDMI Type A 19-pin, female
Video Output Connector (Receiver): HDMI Type A 19-pin, female
Link Connector (Sender/Receiver): RJ-45, Shielded
Indicators (Sender/Receiver): Blue Power-On LED
Power Supplies (Sender/Receiver): 5V DC, Locking
Power Consumption 10W (max.) each
Dimensions (WxHxD) 3.4x1.3x3.3" / 8.63x3.30x8.38cm (Sender/Receiver)
