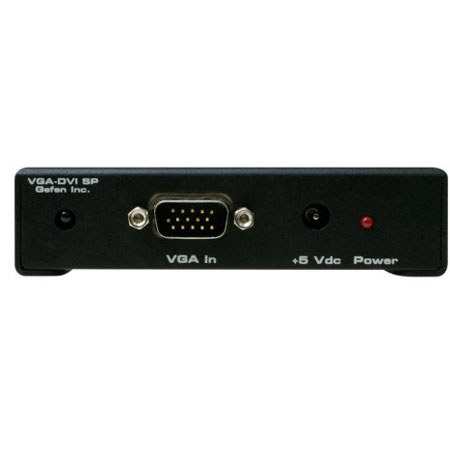

Gefen VGA to DVI Scaler Plus Adapter, 350MHz Bandwidth

See all Gefen items
SKU: GEVGA2DVISP MFR: EXT-VGA-2-DVISP
Gefen : Picture 1 thumbnail Gefen : Picture 2 thumbnail

Our Price

$202.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Gefen

The Gefen VGA-to-DVI Scaler PLUS is a solution that allows you to convert (1) traditional analog VGA signal to (1) DVI output. The unit will also work with Component video sources, such as DVD players and cable boxes. This is an ideal solution when you need to connect legacy equipment with HD-15 video connections to the new DVI video-display format. DVI output enables an all-digital rendering of video without the losses associated with an analog interface, making it ideal for use with a number of digital displays, including LCD, Plasma and DLP projectors.

The scaler can be controlled manually or with the included IR remote control. Aspect-ratio control for native and full-view modes is included. This unit offers 48MB frame memory for frame-rate conversion. Input resolution is automatically detected and output resolution and refresh rate can be selected through an on-screen display menu and front-panel push buttons. The output picture features adjustment controls that include brightness, contrast, color, RGB level and H-V position.

Gefen Features

  • The input is analog PC or HDTV signal in the format of either RGBHV, YPbPr or YCbCr
  • The output is digital+analog PC or HDTV signal in the format of digital RGBHV bitstream plus analog RGBHV, known as DVI-I (Integrated digital and analog)
  • The input resolution is automatically detected while the output resolution and refresh rate can be selected through the OSD menu via the front panel push buttons
  • 48MB frame memory for frame rate conversion
  • Output picture adjustment on brightness, contrast, color, RGB level and H-V position
  • DVI output enables an all digital rendering of video without the losses associated with an analog interface and is an ideal for use with digital display such as LCD, Plasma and DLP projectors
  • High Performance Scaler that converts and scales analog RGB inputs to DVI-I (digital or analog) outputs
  • Output resolution can be easily selected using the OSD (On Screen Display)
  • Supports input/output computer resolutions up to 1920x1200 / 2048 x 1080 (2K) @ 60Hz
  • Supports HDTV resolution up to 1080p as input and output
  • Supports DDWG standard for DVI compliant monitors
  • Aspect ratio control for native and full view modes

Gefen Specifications

Maximum Pixel Clock
165 MHz (DVI)
Video Amplifier Bandwidth
350 MHz (VGA)
Input DDC Signal
5 Volts p-p (TTL)
DVI Output Connector
DVI-I 29 pin female
VGA Input Connector
HD-15 VGA female
Power Supply
5V DC
Power Consumption
10 W (max)
Dimensions
5.8 x 1 x 4.1'' / 14.73 x 2.54 x 10.41 cm
Weight
2 lbs / 0.90 kg
