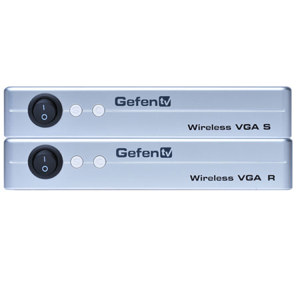

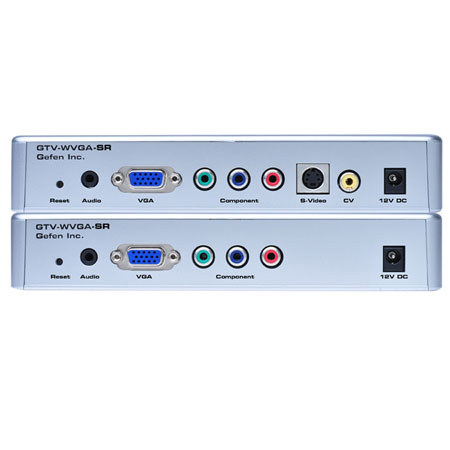

Gefen Wireless SR VGA Sender & Receiver
Gefen

Gefen Wireless SR VGA Sender & Receiver, IEEE 802.11b/g/n Wireless Standard

SKU: GEWVGASR MFR: GTV-WVGA-SR
What's Included
What's Included With This Item:
  • Gefen GTV-WVGA-SR Wireless VGA Sender
  • GTV-WVGA-SR Wireless VGA Receiver
  • 2 x 12V / 1A Power Supplies
  • 6 ft VGA Cable (M-M)
  • User's Manual
  • Gefen 2 Years Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$334.99
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Gefen Wireless SR VGA Extender allows a VGA display or projector to be located up to 30' from the source signal. It features signal transmission through walls at resolutions of up to 1280 x 1024 using 2.4GHz, 802.11b/g/n wireless network technology. The device can be operated on any one of 4 channels to minimize interference.

This is a plug-and-play solution that requires no special configuration. The system consists of a sender and a receiver. The sender is connected to the VGA source with a VGA cable. The receiver is connected to the display with a VGA cable. 12V external power supplies are connected to the sender and the receiver.

What's Included With This Item

  • Gefen GTV-WVGA-SR Wireless VGA Sender
  • GTV-WVGA-SR Wireless VGA Receiver
  • 2 x 12V / 1A Power Supplies
  • 6 ft VGA Cable (M-M)
  • User's Manual
  • Gefen 2 Years Warranty

Key Features

  • Wireless extension of VGA up to 30 feet
  • Maximum Input Resolutions: 1080p@60Hz (Y/Pb/Pr), 1280x1024@60Hz (VGA), 480i@60Hz, 576i@50Hz (SVideo, Composite)
  • Maximum Output Resolutions: 720p@60Hz (Y/Pb/Pr), 1280x1024@60Hz (VGA), 480i@60Hz, 576i@50Hz (SVideo, Composite)
  • Can switch amongst up to four audio/video sources at the display
  • Plug-and-Play installation with no special configuration required
  • 4 wireless channels for resistance to interference
  • L/R Analog Audio supported

Technical Specs

Wireless Standard IEEE 802.11b/g/n
Antenna Type Internal Dipole antenna 2dBi
PCM Encoding 48KHz 16-bit sampling
Switchable 802.11b/g/n Channels 3, 6, 9, 11
Inputs Audio:
3.5mm mini-stereo jacks
Video:
Composite & S-Video: NTSC / PAL / SECAM
Y/Pb/Pr: 480i/p, 576i/p, 720p (50/60Hz), 1080i/p (50/60Hz).
VGA: 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 960, 1280 x 1024
Outputs Audio:
3.5mm mini-stereo jacks
VIDEO
Y/Pb/Pr: 480p (60Hz), 576p (50Hz), 720p (60Hz)
VGA: 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024
Maximum Transmission Distance 30'
Power 12V @ 1A (each)
Operating Humidity 90% maximum (non-condensing)
Dimensions (W x H x D) 7.5 x 1.3 x 4.6" / 19.05 x 3.30 x 11.68cm
