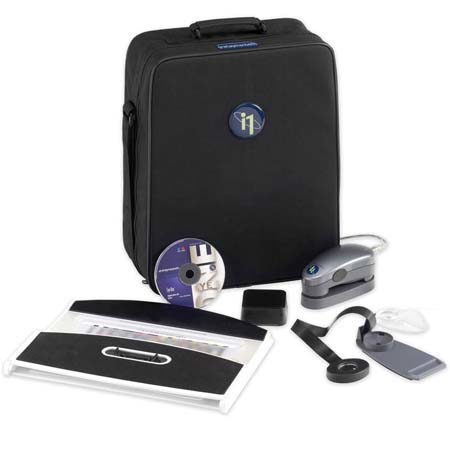

X-Rite Eye-One Proof Complete, with PC Training, Mac & Windows Compatibility
Mfr. Part: EOPRFT SKU: GHEOPRPCT
enlarge image
|
|
|
|
|
|
Item Includes
Gretag Eye-One Proof - Personal Color Trainer (PCT) Web-Based Personalized Training - New Accelerated Eye-One Pro Spectrophotometer - Eye-One Match Software for Mac and PC - Eye-One Share Software for Mac & PC (includes full Pantone library) - NEW Ruler and Backup Board - NEW Carrying Case to hold all Eye-One Components - Scanner Profiling Chart (reflectance) - Measurement Accessories - $400 Upgrade Voucher to ProfileMaker Solutions - Gretag Twelve Month Limited Warranty
|
Description
If you're a small prepress house, in-house repro departments, commercial printing shop such as quick print, print-for-pay or large format printing, then Eye-One Proof offers a sophisticated solution for CMYK workflows requiring more robust color needs. Ensure accurate, consistent color from scan to monitor to proof and final print. The advanced CMYK output profiling makes this the best package for anyone using a Postscript RIP. Other great features include the ability to profile projectors, edit profiles, measure and share spot and PANTONE colors and measure lighting conditions.
Eye-One Proof calibrates and profiles Monitors, RGB, CMYK Easy, Scanners, Digital Projectors & Digital Cameras. It also provides the ability to Edit Profiles, Capture Flash and Ambient Light, Measure Spot Colors. |
Features
 |
NEW accelerated Eye-One Pro, delivering twice the speed and improved ease-of-use for concise consistent measurements every time! |
|
NEW highly sophisticated ruler system enabling easy one hand scanning operation, usable with or without new backup board |
|
NEW Backup board with white surface, scanning up to 3mm and foldable for easy transport |
|
NEW Softcase which accommodates all components of Eye-One including new ruler and backup board |
|
NEW Eye-One Editor for easiest global color edits on profiles |
|
FREE Nik Photographic Filters - four free filters plus special offer for additional filters |
|
One measuring device for both emissive (monitors) and reflective (print) modes |
|
Flash and ambient light measurement with the Eye-One Pro |
|
Easy-to-use, step-by-step software interface - no extra manuals needed |
|
NEW "how to video" for scanning test charts and "optical beep" added for even greater usability |
|
Laptop mode for better, more neutral laptop LCD profiles |
|
Luminance settings for matching multiple monitors to each other |
|
Gray balance optimization on monitors for more neutral and better defined grays |
|
Includes the ideal color tool to measure, mix and share spot colors, capture both flash and ambient light and build CxF files - all with the powerful Eye-One Share software |
|
Edit profiles with Eye-One Match Editor - includes simple editing functions for the most popular editing needs |
|
Create digital camera modules with the new Digital Camera module with simplified features for the most popular photo settings |
|
Full automated with the Eye-One iO scanning table |
|
One Push Button Monitor Calibration support for Eizo CG18, CG19, CG21 and LaCie Electron b4 monitors |
|
USB powered - no extra power cable required |
Specifications
| Measurement Modes | Reflectance single measurement,
Reflectance scanning measurement with automatic patch detection
Emission |
| Spectral analyzer | Holographic diffraction grating with diode array |
| Spectral range | 380 - 730 nm |
| Spectral reporting | 10 nm |
| Emission spectra | Spectral radiometric emission measurement of the luminance |
| Measurement aperture | 4.5 mm |
| Measurement range | 0...300 cd/m2 |
| Short-term repeatability | x,y: +0.002 typical (CRT 5000°K white patch 80 cd/m2) |
| Interface | USB |
| Measurement geometry | 45/0 ring optics, DIN 5033 |
| Light source | Gas filled tungsten (Type A) |
| Physical filters | No or UV cut (Filters not exchangeable, neutral incandescent lamp light A) |
| Inter-instrument agreement | Average 0.4, max 1.0
(deviation from GMB manufacturing standard at a temperature of 23°C for a single measurement on 12 BCRA tiles (D50, 2°)) |
| Short term repeatability | 0.1(d50, 2°), mean value of 10 measurements every 3 seconds on white |
| Macintosh Requirements | Mac OS X (10.2 or higher)
128 MB of available RAM
48 MB of available hard disk space
Monitor resolution of 1024 x 768 pixels or higher
USB support |
| Windows Requirements | Windows 2000, Windows XP
Processor: Pentium II, 266 MHz or higher
128 MB of available RAM
48 MB of available hard disk space
Monitor resolution of 1024 x 768 pixels or higher |
| Power Conditions | Powered by USB, no additional charger required: USB 1.1 high power device |
| Accessories included | Calibration plate, USB cable, CRT monitor holder, flat panel holder, positioning target scanning ruler |
| Physical dimensions | Length 151mm, width 66mm, height 67mm (6 x 2.6 x 2.6 in) |
| Weight | 185 g (6.5 oz) |
| Warranty | Gretag twelve month limited warranty |
| | |
|
|
|
|
|
|
|
|
|
|
|
