Glyph Technologies Glyph-EC2 2 Port Pcie Esata Card
Glyph Technologies

Glyph Technologies Glyph-EC2 2 Port PCIe eSATA Card for Use with GT050Q

SKU: GLYPHEC2 MFR: GLYPHEC2
What's Included
What's Included With This Item:
  • Glyph Technologies Glyph-EC2 2 Port PCIe eSATA Card
  • 1-meter eSATA Cable
  • CD with Drivers
  • Glyph Technologies 1 Year Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$48.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

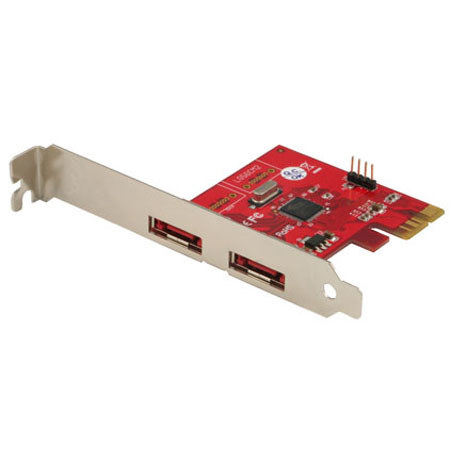

The EC2 is an eSATA card capable of delivering higher bandwidth than FireWire can, up to 125MB/s on each of it's eSATA connections. It's a 3Gbps/port SATA II card which uses a PCIe slot in your computer. Using eSATA, copy speeds will increase significantly when moving large amounts of data from one drive to another. Typically, a GT 050Q can transfer around 70MB/s when connected via FireWire 800. If connected to the EC2 card, speeds of over 110MB/s are easily attainable using the same drive. Higher bandwidth is quite handy when you need to backup the entire contents of your 1.5TB GT 050Q drive. Best of all, it's quite affordable and ships with a 1-meter eSATA cable.

What's Included With This Item

  • Glyph Technologies Glyph-EC2 2 Port PCIe eSATA Card
  • 1-meter eSATA Cable
  • CD with Drivers
  • Glyph Technologies 1 Year Warranty

Key Features

  • Supports Native Command Queuing
  • Supports port multipliers with FIS-based switching
  • Supports up to 10 hard disks using port multipliers
  • Supports hot plugging of hard drives under Mac OS X
  • RoHS Compliant

Technical Specs

External Interface Two 3Gb/sec eSATA external ports
Bus Interface One-lane PCI Express
Chipset Silicon Image SiI3132
Sustained transfer rate 125MB/s per eSATA port
Compatible Operating Systems Mac OS 10.4.x and 10.5.x
Microsoft XP SP2, Vista
Modern Unix-based, Linux, or BSD
Compatible Computer Systems PC computer with PCIe slots
PowerMac G5 with PCIe slots
Mac Pro (all Mac Pro computers have PCIe slots)
