Grandstream Networks

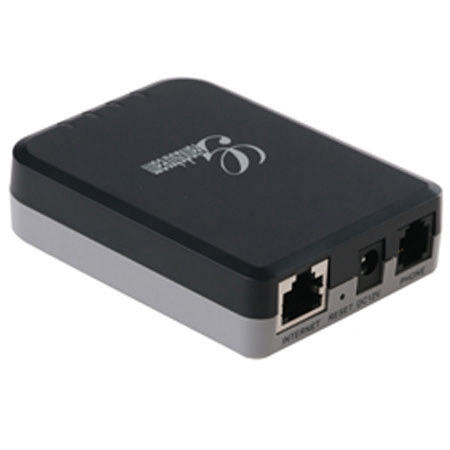

Grandstream Networks HandyTone 701 Analog Telephone Adapter

SKU: GSHT701 MFR: HT701
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$29.12
Qty:
Add to Wishlist In Stock

About this item

The Grandstream HandyTone 701 is a next generation, powerful IP ATA (analog telephone adapter) for residential and road warriors. Its ultra-compact size, superb voice quality, rich functionalities, strong security protection, excellent manageability and auto provisioning, as well as unrivaled affordability enable service providers to offer high quality IP service at extremely competitive price. The HT701 is an ideal single-port ATA for large scale commercial IP voice service deployment.

Key Features

  • Single FXS telephone port(supporting 5 REN) single 10/100M Ethernet port
  • LEDs for Power, Internet, LINK/ACT and Phone status
  • Strong security protection of voice/data privacy using TLS/SRTP/HTTPS, secure and automated provisioning using TR069 and HTTP/HTTPS/TFTP
  • Advanced Telephony features including caller ID, call waiting, 3-way conference, transfer, forward, do not disturb, message waiting indication, multi-language voice prompt, T.38 Fax, flexible dial plan
  • Support comprehensive voice codecs including G.711 with Annex I/II, G.723.1, G.729A/B, G.726, iLBC

Technical Specs

Telephone Interface 1 RJ11 FXS port
Network Interface 1 RJ45 10/100 Mb Base-TX, Full Duplex
LED Indicators Power, Internet, Link/Activity, Phone
Factory Reset Button Yes
Voice over Broadband Capabilities G.711 + Annex I (PLC), Annex II (VAD/CNG format) encoder and decoder, G.723.1, G.726, iLBC, Dynamic jitter buffer, advanced line echo cancellation
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Passthrough
Short Haul Loop 5REN, Up to 1Km on 24 AWG wire
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT and DTMF-based CID
Polarity Reversal / Wink Yes
Network Protocols TCP/UDP/IP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, SIP, SIP over TCP/TLS, SRTP, TR069
QoS Diffserve, TOS, 802.1 P/Q VLAN tagging
DTMF Method In-audio, RFC2833 and/or SIP Info
Provisioning & Control TFTP, HTTP, HTTPS, TELNET, TR-069, secure and automated provisioning using AES encryption, syslog
Security Management Syslog support, telnet, remote management using Web browser
Security Control TLS/SIPS/HTPPS
Security Media SRTP
Universal Power Supply Input: 100-240 VAC/50-60 Hz 0.18A Max
Output: 12VDC, 0.5A, UL certified
Environmental Operational: 32deg. - 104deg. F or 0deg. - 40deg. C
Storage: 14deg. - 140deg. F or -10deg. - 60deg.
Humidity: 10-90% Non-condensing
EMC & Safety FCC part15 Class B, C-Tick, AS/NZS CISPR22, CISPR24, EN55022, EN55024, EN60950-1, EN61000-3-3 & UL (Power supply)
Dimensions (HxWxD) 26x65x86mm / 1.02x2.56x3.38"
Weight 0.31kg / 0.68lbs
