Grandstream Networks

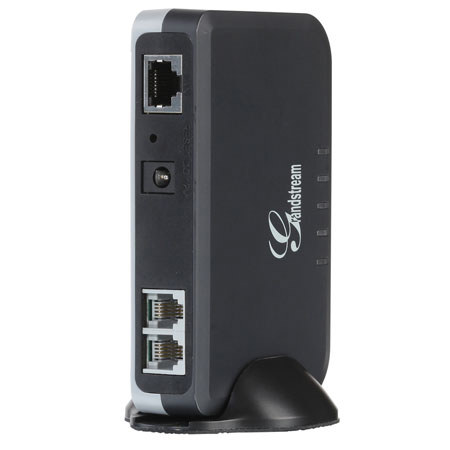

Grandstream HandyTone 702 Analog Telephone Adapter

SKU: GSHT702 MFR: HT702
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$36.40
Qty:

Add to Wishlist In Stock

About this item

The Grandstream HandyTone 702 are next generation, powerful 2/4-port IP ATA (analog telephone adapter) for residential users and small businesses. Their compact size, superb voice quality, rich functionalities, strong security protection, excellent manageability and auto provisioning, as well as unrivaled affordability enable service providers to offer high quality IP voice service at extremely competitive price. The HT702 are ideal 2-port ATAs for large scale commercial IP voice service deployment.

Key Features

  • 2 FXS port (HT702) or 4 FXS port (HT704), supporting 3 REN and single 10/100M Ethernet port
  • LEDs for Power, Internet, LINK/ACT and Phone status
  • Advanced telephony features including caller ID, call waiting, 3-way conference, transfer, forward, do not disturb, message waiting indication, multi-language voice prompt, T.38 Fax, flexible dial plan
  • Support comprehensive voice codecs including G.711 with Annex I/II, G.723.1, G.729A/B, G.726, iLBC
  • Strong security protection of voice/data privacy using TLS/SRTP/HTTPS, secure and automated provisioning using TR069 and HTTP/HTTPS/TFTP

Technical Specs

Telephone Interface 2 RJ11 FXS ports
Network Interface 1 RJ45 10/100 Mb Base-TX, Full Duplex
LED Indicators Power, Internet/Link-ACT/PHONE 1/PHONE 2
Factory Reset Button Yes
Voice over Broadband Capabilities G.711 + Annex I (PLC), Annex II (VAD/CNG format) encoder and decoder, G.723.1, G.726, iLBC, Dynamic jitter buffer, advanced line echo cancellation
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Passthrough
Short Haul Loop Ring Load 5REN, Up to 1Km on 24 AWG wire
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT and DTMF-based CID
Network Protocols TCP/UDP/IP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, SIP, SIP over TCP/TLS, SRTP, TR069
QoS Diffserve, TOS, MPLS, 802.1 P/Q VLAN tagging
DTMF Method In-audio, RFC2833 and/or SIP Info
Provisioning & Control TFTP, HTTP, HTTPS, TELNET, TR-069, secure and automated provisioning using AES encryption, syslog
Security Management Syslog support, telnet, remote management using Web browser
Security Control TLS/SIPS/HTPPS
Security Media SRTP
Universal Power Supply Input: 100-240 VAC/50-60 Hz
Output: 12VDC, 0.5A
Environmental Operational: 32deg. - 104deg. F or 0deg. - 40deg. C
Storage: 14deg. - 140deg. F or -10deg. - 60deg.
Humidity: 10-90% Non-condensing
EMC & Safety FCC part15 Class B, C-Tick, AS/NZS CISPR22, CISPR24, EN55022, EN55024, TBR21, EN60950, EN61000-3-2, EN61000-3-3 & UL (Power supply)
Dimensions (HxWxD) 28x115x75mm / 1.10x4.53x2.95"
Weight 0.31kg / 0.68lbs
