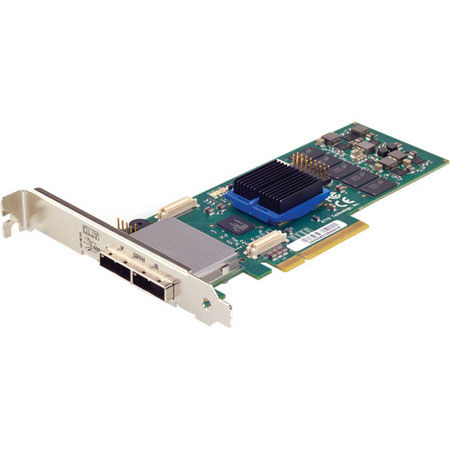

G-Technology ExpressSAS R680 8-Port 6Gbps SAS/SATA RAID Adapter

SKU: GTE0G02068 MFR: 0G02068
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About G-Technology R680

The G-Technology ATTO Technology ExpressSAS R680 8-Port 6Gbps SAS/SATA RAID Adapter is an external RAID Adapter that adds high performance RAID protection to direct attached SAS and SATA JBOD storage. The ExpressSAS R680 gives cost effective and reliable transition from 3 to 6 Gbps SAS/SATA storage infrastructures in general IT, media and entertainment environments. It also gives transition of 6 Gbps SAS/SATA connectivity to Direct Attached Storage via 8 external ports.

With transfer rates of up to 1200Mbps per port, the ExpressSAS R680 is ideal for workflows such as digital content creation, streaming video and audio, transactional databases, Email and web servers. The RAID stack and exclusive latency management features help you create, share and protect data and digital assets more effectively.

G-Technology R680 Features

  • RAID Levels Supported: ExpressSAS R680 supports RAID levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID, an advanced RAID level for digital video environments
  • Long-Standing RAID Experience: ExpressSAS R680 features the time-proven ATTO RAID Stack, DVRAID and CacheAssure, proprietary technologies developed to provide the most robust RAID based connectivity solution in the industry
  • Flexible Connectivity Solutions: The ExpressSAS R680 is ideal for a wide variety of IT and digital media environments that require high-performance and parity RAID protected data
  • Performance Engineered: The ExpressSAS R680 allows users to instantly protect their critical data to enhance performance. ExpressSAS R680 is designed to maintain full performance in degraded mode and to minimize downtime with 50% faster rebuilds, limiting exposure to a second drive failure
  • Advanced Management Tools: The ExpressSAS R680 Adapter's easy-to-use configuration tool features an intuitive GUI that simplifies RAID group configuration, management and monitoring
  • Advanced Data Streaming Technology: Latency management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently
  • DriveAssure Technology: Drive assessment and latency management technology that prevents premature drive failures to ensure uninterrupted access to data
  • CacheAssure Technology: NV cache data protection module provides a maintenance free solution that safeguards against the loss of cached data during a power or system failure
  • Data Recovery Mode: Mechanism that increases the probability of fully or partially recovering data that is lost due to a disk failure and offline RAID group
  • High performance host-based RAID for direct attached storage
  • Four port configurations for flexible connectivity
  • Full performance in degraded or rebuild mode
  • Flash-based cache protection protects against lost data during power or system failure
  • More options for retrieving data from a failed drive with data recovery mode
  • 50% faster rebuilds
  • Efficient scalability with host level RAID
  • Maintain high priority workflows with tunable rebuilds
  • RAID group partitioning for better management
  • User-friendly GUI for quick and easy RAID setup
  • Command line interface for advanced functionality
  • ATTO config tool: BIOS-based RAID management and configuration utility

G-Technology R680 Specifications

Data Transfer Rate
8 external
x8 PCIe 2.0 host interface
Form Factor
Low profile
2 mini SAS (4x) SFF 8088 external
Operating System Support
Windows Server 2003, 2008
Windows XP, Vista, 7
SUSE Linux
RedHat Linux
Mac OS X (10.4.x - 10.7.x)
Agency Approvals and Compliance
FCC Part 15, Subpart B, Class B
EN55024: 1998 + A1: 2001 + A2: 2003
EN55022: 2006, + A1: 2007 Class B
EN60950 - 1
EU RoHS compliant (2002 / 95 / EC)
RAID Features and Functionality-1
SAS 2.0, SAS, SATA and SATA II support
RAID levels 0, 1, 4, 5, 6, 10, 40, 50, 60, JBOD, DVRAID
Command coalescing
Staggered drive spin-up
RAID level migration
Hot swap with auto rebuild
Online performance metrics and event logs
Native command queuing
512 MB ECC protected cache memory
SES, SNMP and S.M.A.R.T. support
Pass-through support for tape and tape devices
Configurable stripe size
RAID Features and Functionality-2
Online capacity expansion
Global and dedicated hot spares
Automatic and tunable online rebuilds
N-way mirroring
Operating Temperature
32 to 104deg.F (0 to 40deg.C)
Storage Temperature
-40 to 157deg.F (-40 to 70deg.C)
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 95% non- condensing
Operating Voltage
9.6 W (typical)
Air Flow
150 lf/m (min) recommended
Dimensions (LxH)
6.60x2.71" (16.76x6.88 cm)
