Galaxy Audio AS-1100-L Audio Personal Wireless Stage Monitoring System, Frequency 655-679MHz

SKU: GXAS1100L MFR: AS-1100-L
Special Order Item - This item is typically shipped to you directly from Manufacturer within 1-2 Weeks. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$399.00 $16 per week
Free Shipping
Add to Wishlist

Protect your investment

About the Galaxy Audio AS-1100-L

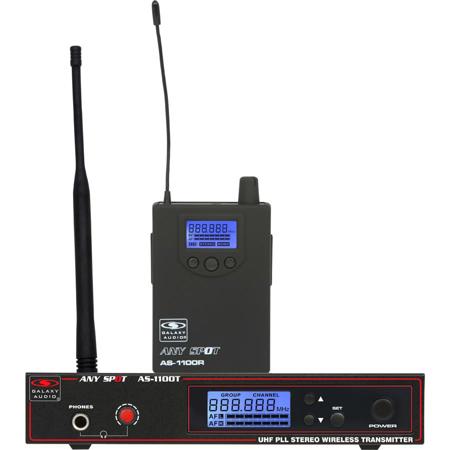

The Galaxy AS-1100-L wireless personal monitor system has a range of up to 300 feet and features a transmitter with stereo XLR/1/4" inputs, headphone output and LCD display (channel and input level). The receiver has an LCD with channel, battery level and RF/AF indicator. This operates in the frequency band (655-679MHz).

Galaxy Audio AS-1100-L Includes

  • Galaxy Audio AS-1100T Transmitter
  • AS-1100R Receiver
  • Ear Buds
  • Rack Ears
  • Manual
  • Galaxy Audio 1 Year Limited Warranty

Galaxy Audio AS-1100-L Features

  • RF Signal LED, Lights when RF Signal is received
  • Earphone Jack
  • Output Level Control and On/Off Switch

Galaxy Audio AS-1100-L Specifications

System: Transmitter Output Level Band UHF
System: Frequency Range 584-607 MHz
System: Transmitter Output Level 10dBm
System: Operating Range Under Typical Conditions: 300' (92m)
System: Audio Frequency Response +/-3dB
System: Total Harmonic Distortion +/-30KHz deviation
1KHz tone <1%
System: Dynamic Range >90dB A-weighted
System: Operating Temperature Range 14deg.F to 122deg.F (-10deg. C to +50deg. C)
Bodypack Receiver: Audio Output Level 100mW
Bodypack Receiver: Sensitivity -94dBm for 30dB
Bodypack Receiver: Image Rejection >55dB
Bodypack Receiver: Power Requirements 2 size alkaline or rechargeable batteries (AA)
Bodypack Receiver: Battery Life About 5 hours
Transmitter: Max Audio input level +6dBV
Transmitter: Gain Adjustment Range 40dB
Transmitter: Input Impedance 100KOhms
Transmitter: XLR input Impedance balanced
Pin1 Ground (cable shield)
Pin2 Audio
Pin3 No Audio
Transmitter: Power Requirements: 12-18 V DC at 300mA supplied by external power supply
Bodypack Receiver: Dimensions 3.74" x 2.6" x 1" (95mm x 65mm x 25mm) (H x W x D)
Transmitter: Dimensions (H x W x D) 1.5" x 8.3" x 3.78" (38mm x 212mm x 96mm)
Bodypack Receiver: Weight 3.5oz (100g) without batteries
Transmitter: Weight 21oz. (605g)
