Galaxy Audio AS-HH5CK Any Spot Handheld Wireless Camera Kit

SKU: GXASHH5CK MFR: AS-HH5CK
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 1 to 2 weeks.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$339.99
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Galaxy Audio AS-HH5CK

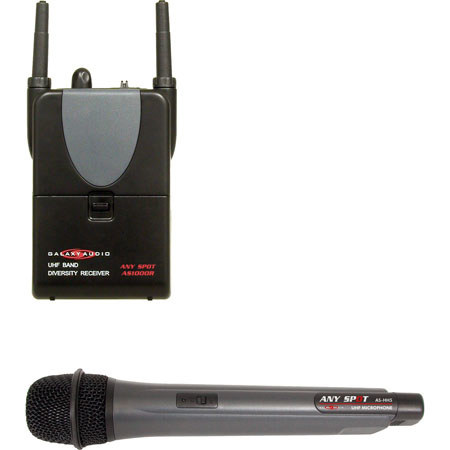

The Galaxy Audio AS-HH5CK Any Spot Wireless Handheld Camera System provides a convenient way to transmit the audio of an event to the video camera, where it is recorded or transmitted along with the video. The equipment in the Any Spot Handheld system includes the AS-1000R receiver, which is attached to the camera and the AS-HH5 Handheld Microphone. The Galaxy Any Spot is a great choice for single performer events or news field reporting. The AS-1000R receiver features a line output for connection to the camera, as well as a headphone output, which allows the camera operator to monitor the audio and video production.

The AS1000R is a true diversity receiver that gives the system its flexibility. The AS1000R receiver has two antennas that seek the signal from the transmitter individually. This means fewer dropouts than a non-diversity system. In the rare event of a dropout, the 'Auto-Mute' feature kicks in. Auto-Mute prevents intermittent static from going into the users ears.

The receiver features a stereo 1/8" (3.5mm) ear-bud output with volume control and a 1/8" (3.5mm) line output. This enables users to monitor input signal with headphones, while simultaneously sending signal to a video camera, mixer, recorder, PA system, etc. Headphone volume is independently adjustable without affecting line output audio. The receiver features 64-channels of UHF diversity operation and operates on 2 AA alkaline or rechargeable batteries.

The AS-HH5 handheld microphone operates on UHF band frequencies with PLL synthesized control. 64 pre-programmed selectable UHF frequencies are provided to avoid interference. The AS-HH5 is equipped with a uni-directional dynamic cartridge. Power is supplied by two 1.5V AA size batteries.

Galaxy Audio AS-HH5CK Includes

  • Galaxy Audio AS-1000R Receiver
  • AS-HH5 Handheld Mic/Transmitter
  • 3.5mm Line Cable
  • Ear Buds
  • Velcro for Mounting
  • Galaxy Audio 1 Year Limited Warranty

Galaxy Audio AS-HH5CK Features

  • Designed for dual operation as a wireless microphone and in-ear monitor receiver
  • Lightweight and portable design suitable for camera, guitar strap and belt mounting
  • Two 1/4-wave antennas for true diversity reception with minimal dropout and noise
  • Two stereo 1/8" outputs for earbuds and interfacing with recording equipment
  • Multi-Color LED indicator allows the user to obtain more status information from the receiver
  • Charging input allows for re-charging of batteries without having to remove them (For use only with optional charger unit and rechargeable batteries, not included)
  • Up to 64 selectable frequencies are available to set up a multi-frequency broadcasting system while avoiding interference
  • Frequency group and channel selection switches are contained inside the battery compartment to prevent the accidental changing of channels during use
  • Auto-Mute circuitry prevents intermittent static from going into the users ears
  • Uni-directional dynamic capsule
  • Low battery LED
  • Squelched On/off switch prevents popping
  • Group selector changes transmitter group setting
  • Channel selector changes transmitter channel setting
  • Powered from 2-AA batteries (can be rechargeable)
  • Charging input for charging rechargeable batteries
  • DC-plug charger cable included

Galaxy Audio AS-HH5CK Specifications

Receiver: Carrier Frequency Range UHF band 682-698MHz, 64Channel
Receiver: Oscillator PLL synthesized
Receiver: Modulation FM
Receiver: Receiving Mode Single channel. Diversity
Receiver: Frequency Stability +/-0.005%
Receiver: Selectivity > 50dB
Receiver: S/N Ratio >94 dB, at 15kHz deviation and 60dBuVantenna input
Receiver: Power Supply DC 3V (2 x 1.5V AA batteries or rechargeable batteries)
Receiver: Image and Spurious Rejection 80 dB minimum
Receiver: Receiving Sensitivity At 5 dBuV over 80 dB S/N ratio Selectivity >50dB
Receiver: AF Response Headphone 100Hz to 10kHz (+/-3dB)
Receiver: Line 100Hz to 10kHz (+/-3dB)
Receiver: T.H.D. <1% (at 1kHz)
Receiver: IF Frequency 1st 56MHz; 2nd 10.7MHz
Receiver: Dynamic Range >96dB
Receiver: Audio Output Headphone 20mW (stereo output)
Receiver: Line Stereo output level -10dB
Receiver: Current Consumption 130mA +/-10mA
Transmitter: Carrier Frequency Range UHF band 682-698MHz
Transmitter: Oscillator PLL synthesized, 64-selectable channels
Transmitter: Frequency Stability ±0.005%
Transmitter: Maximum Deviation ±48KHz
Transmitter: Spurious Emission >60dB below carrier frequency
Transmitter: T.H.D. <1%(at 1KHz)
Transmitter: Microphone Cartridge Handheld: uni-directional dynamic
Lavalier: uni-directional electret condenser
Headset: omni-directional electret condenser
Transmitter: Power Supply DC 3V (2 x 1.5V AA batteries or rechargeable batteries)
Transmitter: Current Consumption 65mA ± 5mA
Transmitter: Dimension (W x H x D) 3" x 4.2" x 1.2" (76 x 106 x 29mm)
Receiver: Dimension (W x H x D) 3" x 4.2" x 1.2" (76 x 106 x 29mm)
