| LCD Panel |
0.55" (1.4cm) P-Si TFT x 3 |
| Resolution |
XGA |
| Brightness |
Normal Mode 2000 ANSI Lumens Eco Mode 1500 ANSI Lumens |
| Contrast Ratio |
5000:1 |
| Lens |
Manual focus, digital zoom x 1.35 |
| Lamp |
180W UHB |
| Lamp life |
3000 hours (Normal Mode) 4000 hours (Eco Mode) |
| Diagonal display |
60-100" (80" @ 86cm) |
| Size |
152-254cm (203cm @ 93cm) |
| Number of colors |
8 Bit/Color, 16.7M colors |
| Keystone Correction |
Fixed, 5.1:-1 upward shift |
| Distance to Width Ratio |
0.5:1 (fixed) |
| Computer Compatibility |
IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA compressed, MAC16" |
| Composite/S-Video |
NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43/PAL60 SDTV: 480i, 480p, 576i, 576p HDTV: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Plug & Play |
DDC2B |

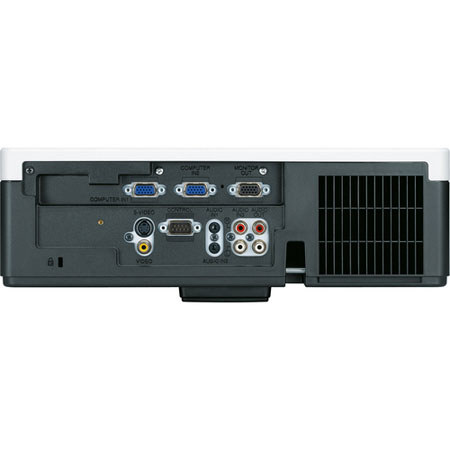

| Computer input |
2 x 15-pin Mini D-sub |
| Computer output |
1 x 15-pin Mini D-sub |
| Video input |
2 x Component D-sub (shared with analogue RGB) 1 x RCA for composite 1 x Mini-DIN for S-Video |
| Audio Input |
2 x Stereo Mini jack 1 pair RCA(L / R) (Selectable on OSD) |
| Audio output |
1 x pair RCA (L/R) |
| Control |
1 x 9-pin D-sub for RS232 Control |
| Power supply |
100-120/220-240V, auto switching |
| Power consumption/Standby |
250W/<1W |
| Noise level |
28dB (Eco Mode)/36dB (Normal Mode) |
| Air filter |
Hybrid |
| Certification |
UL 60950 / C-UL, FCC Part 15 Class B CE, AS / NZS CISPR22 Class B |
| Dimensions (W x H x D) |
13.1 x 4.1 x 11.9 (333 x 103 x 303 mm) |
| Weight |
7.7 lb (3.49 kg) |
