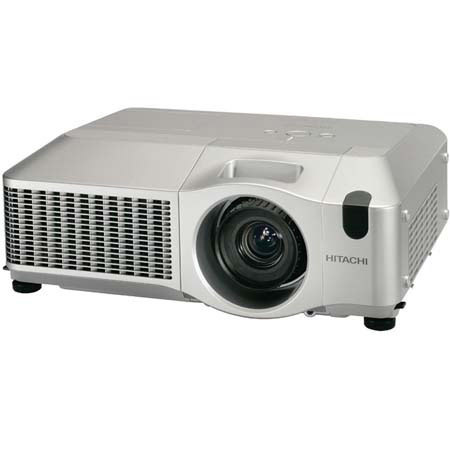

Hitachi CP-WX625 LCD Multimedia Projector, 4000 ANSI Lumens, WXGA (1024 x 768) Resolution
Mfr. Part: CPWX625 SKU: HICPWX625
|
|
 |
|
|
|
Item Includes
Hitachi CP-WX625 LCD Multimedia Projector - Remote Control - Batteries (AA) - RGB Cable - US Power Cord - Multiple Language Operator / Safety Manual - Security Label - Hitachi 3 Year Projector & 90 Day Lamp Warranty
|
Description
The Hitachi CP-WX625 LCD projector features a brightness of 4,000 ANSI lumens and a 2,000-hour hybrid filter, along with networking functionality and Hitachi's proprietary My Image Campus Notification system. It is specially designed for use with widescreen-format laptops and imaging applications that use 16:10 aspect ratios.
Additionally, the CP-WX625 features picture-by-picture functionality as well as an HDMI terminal, allowing digital signals such as DVD players/recorders and HD to be transmitted digitally to the projector. A 16-watt speaker output provides sufficient audio coverage, while the hybrid filter is side-mounted, allowing for easier maintenance. Further simplifying maintenance, the CP-WX625 also features a top-door lamp, making replacement much easier.
The CP-WX625 also features one RGB input, one RGB output and one BNC input, as well as component, composite and S-Video connections. It offers horizontal and vertical lens shift, an Instant On/Off option and a lamp life of approximately 3,000 hours in Whisper Mode. Providing advanced anti-theft capabilities, the CP-WX625 features a security bar and transition detector. |
Features
 |
4,000 ANSI Lumens |
|
Native WXGA Resolution |
|
1 RGB / 1 BNC / 1 HDMI input |
|
1 RGB out |
|
16W speaker output |
|
Lamp door on the top |
|
29 dB (Whisper Mode) |
|
Horizontal & Vertical lens shift |
|
Side-Mounted High Efficiency Filter |
|
Component / Composite / S-Video |
|
Approx. 3,000 hrs. Lamp (whisper Mode) |
|
Security Bar & Transition Detector |
|
Network Control, Maintenance & Security |
|
Instant On/Off |
|
Picture by Picture |
Specifications
| Liquid Crystal Panel Structure | 0.75" Polysilicon Active-matrix TFT x 3 |
| Number of Pixels | 1,024,000 Pixels |
| Resolution Video | 540 TV lines |
| Resolution RGB | 1280 dots x 800 lines |
| Colors | 16.7 million colors |
| Aspect Ratio | Native 16:10 / 4:3 compatible |
| Lens | F1.7 - 1.9, manual zoom x 1.2 |
| Throw Ratio (distance : width) | 1.5 - 1.8 : 1 |
| Lamp | 275W UHB |
| Brightness | 4,000 ANSI lumens |
| Expected lamp Life | Approximately 2,000 hours (normal) 3,000 hours (whisper) |
| Contrast Ratio | 1000 : 1 (using Active Iris) |
| Speaker Output | 16W (4 speakers) |
| Power Supply | AC100 - 120V / AC220 - 240V 50/60 Hz Power |
| Power Consumption | 460W |
| Operating Temperature | 5°C - 35°C (41°F - 95°F) |
| Input Signals RGB | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13", MAC16" |
| Input Signals Composite Video | NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N |
| Input Signals Component Video | 480i, 576i, 480p, 720p, 1080i |
| Acoustic Noise Level | 35 dB (29 dB in whisper mode) |
| H-Sync | 15 kHz - 106 kHz |
| V-Sync | 50 kHz - 120 kHz |
| Vertical Keystone | + / - 40° |
| Horizontal Keystone | + / - 20° |
| Approvals | UL60950 / C-UL, FCC Part15, Class B, EN60950 |
| RGB Input | Analog RGB:15-pin D-sub connector x 1, BNC Terminal x 1 |
| RGB Output | RGB:15-pin D-sub connector x 1 |
| Digital Input | RGB:HDMI X1 |
| Video Input S-Video | Mini DIN 4-pin connector x 1 |
| Video Input Composite Video | RCA jack x 1 |
| Video Input Component Video | RCA jack x 3, BNC Terminals (Shared with Analog RGB) |
| Audio Input | Stereo mini jack x 2, RCA (L/R) x 2 pairs |
| Audio Output | Stereo mini jack x 1 |
| Ethernet | RJ-45 port / 100 base-T |
| Control Terminals | 9-pin D-sub connector x 1 (RS-232 control)
USB Type-B x 1 (Remote Mouse) |
| Lamp | CPWX625LAMP (DT00873) |
| Remote Control | HL02196 |
| Filter | MU05661 |
| Additional Features | Kensington Slot, MyMemory / MyScreen / MyButtons, Digital Gamma Correction, Whiteboard/Blackboard Mode, Input Source Naming, Wired Remote |
| Dimensions (W x D x H) | 16.5" x 12.6" x 5.5" |
| Weight | 15.8 lbs |
| Warranty | Hitachi 3 year projector & 90 day lamp warranty |
| | |
|
|
|
|
|
|
|
|
|
|
