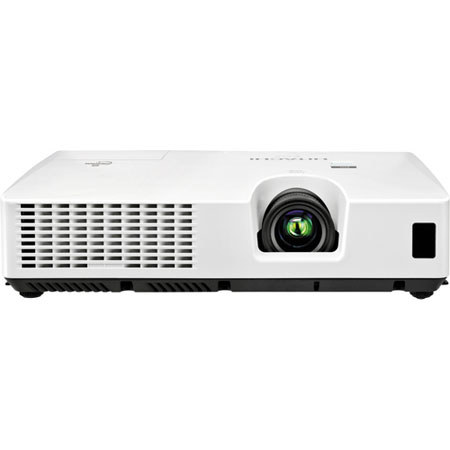

Hitachi CP-X3021WN Portable LCD Projector
Hitachi

Hitachi CP-X3021WN Portable LCD Projector, 3200 ANSI Lumens Brightness, 1024 x 768 XGA Resolution, 3000:1 Contrast Ratio, Blackboard/Whiteboard Mode

SKU: HICPX3021WN MFR: CPX3021WN
What's Included
What's Included With This Item:
  • Hitachi CP-X3021WN Portable LCD Projector
  • Remote Control with Batteries (HL02771)
  • Computer Cable
  • Power Cord
  • Lens Cap
  • Security Label
  • User Manual
  • USB Wireless Adaptor
  • Replacement Lamp (DT01191)
  • Hitachi 3 Years Projector & 6 Months Lamp Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$589.95
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Hitachi CP-X3021WN XGA-resolution (1024 x 768) Portable Projector has 3200 ANSI lumens of projection power at a 2000:1 contrast ratio so it will give you a brilliant image, even when you can't achieve optimum lighting. No matter where you use it, if you need to make presentations, you'll appreciate how you can use the remote control's mouse function. Just plug one end of a USB cable (available separately) into your laptop and the other into the projector's USB Type B port and you're no longer tied to your computer when presenting.

If you want to go computer-less, slip a thumbdrive into the CP-X3021WN's USB port and screen video or still content. At only 5.1 pounds (2.3kg) the projector is eminently portable, making multiple venue presentations plausible. Images can be displayed in a wide variety of formats. Of course, the CP-X3021WN can project in 720p, 1080i and 1080p high definition. Its international credentials are equally impressive. It can project images in the NTSC, NTSC 4.43, PAL, PAL-M, PAL-N and SECAM video formats and it has a 100 to 240VAC 50/60Hz power supply.

Finally, the CP-X3021WN possesses superior connectivity and control features. HDMI, component and a microphone input are all on board. The RJ-45 connection allows network control and maintenance of multiple Hitachi projectors or any compatible projector.

What's Included With This Item

  • Hitachi CP-X3021WN Portable LCD Projector
  • Remote Control with Batteries (HL02771)
  • Computer Cable
  • Power Cord
  • Lens Cap
  • Security Label
  • User Manual
  • USB Wireless Adaptor
  • Replacement Lamp (DT01191)
  • Hitachi 3 Years Projector & 6 Months Lamp Warranty

Key Features

  • 3LCD Technology: A sophisticated, innovative technology that utilizes three chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences
  • Hybrid Filter: It lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly
  • Blackboard/Whiteboard Mode: Projecting onto colored or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white
  • Advanced Networking: Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network
  • Wireless Networking: Wireless networking offers quick, easy and secure network access. Browser based software provides easy management, control and monitoring of networked projectors
  • Daytime Mode: It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colorful in a bright environment with daytime mode
  • Input Source Naming: Personalize devices and inputs to the projector - re-name a device input for easy recognition
  • My Button: Assign custom functions or common tasks to a programmable button on your remote control
  • Audio Pass Through: When all you need is sound and not pictures, this convenient feature lets you hear the projector's speakers whilst the rest is on standby - helping to preserve lamp life
  • Basic Functions: Freeze, magnifying, blank, auto adjustment, search, page up and down (for USB mouse function)
  • Picture Adjustments: Equalizing gamma correction, 2-3 pull down for NTSC, progressive scan, noise reduction
  • Advanced Features: My Screen, My Memory, eco button, My Button, My Text, My Source, resolution setting, template, closed caption (for NTSC and component 480i only)
  • Outward: Easy lamp replacement from the top; air filter on the side
  • Power On and Off: Quick power on, direct on, auto off, auto eco mode

Technical Specs

LCD Panel 0.63" (1.6cm) P-Si TFT x 3
Resolution XGA (1024x768)
Light output (Brightness) 3200 ANSI Lumens (Normal Mode)
2000 ANSI Lumens (Eco Mode)
Color light output (Color brightness) 3200 ANSI Lumens (Normal Mode)
2000 ANSI Lumens (Eco Mode)
Contrast ratio 2000:1 (Intelligent Eco Mode)
Lens Manual focus, manual zoom x 1.2
Lamp wattage 215W UHP
Lamp Life 3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)
Distance to width ratio 1.5 (Wide), 1.7 (Tele)
Diagonal display size 30-300" (76-762cm)
Number of colors 8 Bit/color, 16.7M colors
Keystone correction Fixed, 6:1 upward shift
Computer compatibility IBM Compatible VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WXGA, WXGA+, MAC 16"
Composite/S-Video NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43/PAL60
Component Video SDTV: 480i, 480p, 576i, 576p HDTV: 720p(@50/60Hz), 1080i(@50/60Hz), 1080p(@50/60Hz)
Plug & Play DDC2B
Speakers 1W Mono
Basic Functions Freeze, Magnifying, Blank, Auto adjustment, Search, Page UP & DOWN (for USB mouse function)
Picture adjustments Equalizing Gamma Correction, 2-3 pull down for NTSC, Progressive Scan, Noise Reduction
Digital keystone Auto V keystone ±30 degrees (@ XGA 60Hz)
Outward Easy lamp replace from top, Air filter on side
Power on & off Quick Power On, Direct On, Auto Off, Auto Eco Mode
Security systems Security bar, PIN-Lock, MyScreen Password, Keypad-Lock, Kensington slot, Transition detector, My Text, Security label
OSD languages English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese
Digital Input 1 x HDMI (HDCP Compliant)
Computer Input 2 x 15-pin Mini D-sub
Computer Output 1 x 15-pin Mini D-sub
Video input 2 x Component D-sub (shared with analogue RGB)
1 x RCA for composite
1 x Mini-DIN for S-Video
Audio Input 2 x Stereo Mini Jack
Audio output 1 x Stereo Mini Jack
USB 1 x USB Type A (for PC-less presentation or wireless adaptor)
1 x USB Type B (for USB display or USB mouse control)
Wired network 1 x RJ-45
Wireless Network Option, IEEE801.11b/g/n ready
Control 1 x 9-pin D-sub for RS232C Control
Power supply 100-120/220-240V, auto switching
Power Consumption/Standby 310W/<0.4W (AC 220-240V)
Noise level 35dB (Normal Mode)/28dB (Eco Mode)
Air Filter Hybrid (up to 5000 hours)
Certifications UL/C-UL, FCC Part 15 Class B, CE, AS/NZS CISPR22 ClassB, WEEE/RoHS/ErP(lot6) compliant, DEMKO-GS
Dimensions (W x H x D) Excluding Feet and Extrusions: 12 x 3 x 8.7" (306 x 77 x 221mm)
Weight 5.1 lb (2.3kg)
