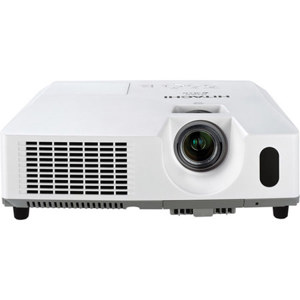

Hitachi CP-X3511 XGA 3LCD Projector
Hitachi

Hitachi CP-X3511 XGA 3LCD Projector, 3500 ANSI Lumens, 1024 x 768 Resolution, 2000:1 Contrast Ratio, IR Wireless with Remote Mouse Function

SKU: HICPX3511 MFR: CP-X3511
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$899.95
Free shipping
Qty:

Add to Wishlist

About this item

The XGA-resolution (1,024 x 768) Hitachi CP-X3511 3LCD Projector has 3,500 ANSI lumens of projection power at a 2,000:1 contrast ratio so it will give you a fine image, even when you can't achieve theater-level darkness. Its 0.63" 3LCD imaging panels (the part that creates the image) deliver sharper and brighter pictures with superior grayscale detail. Smooth, seamless color combined with an unparalleled grayscale range delivers incredible detail to every image displayed by the CP-X3511.

Those images can be displayed in a wide variety of formats. The CP-X3511 can project in 720p, 1080i and 1080p high definition. Its international credentials are equally impressive. It can project images in the NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, and SECAM video formats and since it has a 100 - 240V AC 50/60Hz power supply, it can do so anywhere in the world.

No matter where you use it, if you need to make presentations, you'll appreciate the remote control as a mouse function. Just plug one end of a USB cable (available separately) into your laptop and the other into the projector's USB type B port and you're no longer tied to your computer when presenting.

The CP-X3511 makes your audience's life easier too. It can display all four closed captioning channels as well as all four text channels from programming sources that provide CC. CC is useful not only for the hearing impaired but also for people learning English as a second language and or anyone presenting in noisy environments like gyms or trade shows.

And if you are working in a noisy environment your CP-X3511 won't be part of the problem. Its fan noise is a mere 35 dB in Standard mode and in Eco mode it runs at 29 dB, literally quieter than a whispered conversation.

What's Included With This Item

  • Hitachi CP-X3511 XGA 3LCD Projector
  • Remote Control with Batteries (AA x 2)
  • Lens Cap
  • Power Cord
  • Computer Cable
  • User Manual (Book)
  • User Manual CD
  • Security Label
  • Hitachi Warranty

Key Features

  • 3,500 ANSI Lumens: Project a clear image in any classroom or conference room
  • Hybrid Filter (5,000 Hours between maintenance): The projector provides users by offering less frequent maintenance
  • 6,000 Hour Lamp Life (Eco Mode): The lamp is rated at 3,000 hours in standard mode and 6,000 hours in Eco mode
  • 16 Watt Audio Output: 16W Audio Output eliminates the need to connect external speakers
  • Whiteboard Mode: Limits the peak white by changing the gamma curve limiting its brightness when used with a whiteboard to protect the eye health of teachers and students
  • Input Source Naming: Users can name input sources in simple language instead of factory default name
  • Transition Detector and Security Bar: A security sensor located inside the projector recognizes when the projector has been moved. Moving the projector without using the correct PIN Code will disable the projector

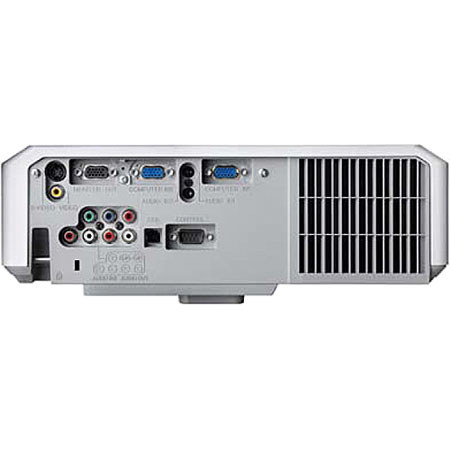

  • 2 RGB In 1 RGB Out / Composite / S-Video / Video: The rich connectivity allows you to connect to two computer and multiple video sources at the same time. Monitor loop-through for ease of use with desktop computers
  • Power Saving Mode: The Saving Mode reduces the stand-by power consumption to 0.5W when using 120 volts with limitation of some features
  • Easy Maintenance: Easy Maintenance is another attractive function, as the lamp door is on top of the model and the filter slides to the front
  • Template Function: Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates to choose from
  • IR Remote Frequency Change: To avoid conflict with fluorescent lights or IrDA (IR Signal) from notebook PC, the frequency of the IR remote control can be changed from the menu
  • MyButton / MySource - Doc Camera: Two customizable buttons on the remote control allow users to create a shortcut for any projector command such as: Direct Input (RGB1, S-Video etc.), Picture Mode, or Filter Reset
  • PIN Lock / MyScreen / MyText: PIN lock protection can limit projector users. MyScreen PIN Lock keeps captured images on the startup screen. Users can set a school's name or company's logo to "MyScreen," clearly identifying ownership
  • Auto Vertical Keystone: Automatic Vertical Keystone detects the angle of the projector and corrects the image
  • Serial Number Label on Side: It is convenient for users or auditors to be able to check the model name and serial number of an asset easily when the product is ceiling mounted. The label is upside-down and easily viewable for ceiling-use

Technical Specs

Projector Display System 0.63" 3LCD Polysilicon Active-Matrix TFT x3
Native Resolution XGA (1,024 x 768)
Number of Pixels 786,432
Lumens Brightness 3,500 ANSI
Contrast Ratio 2000:1
Aspect Ratio 4:3, 16:9 compatible
System NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
HDTV Compatibility 720p, 1080i, 1080p
Focus/Zoom Adjusting Manual / Manual 1.2x
Throw ratio (distance: width): 1.5 - 1.8:1
Lens Shift No
Recommended Projection Size 30 - 300" (76.2 - 762 cm)
Keystone Correction ±30 Degree Vertical
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker 8W x2
Input Terminals Component (3 RCA Y, Cb/Pb, Cr/Pr) x3
Composite (RCA Jack) x1
S-Video (Mini DIN 4 Pin) x1
USB (for Mouse) x1
Audio (Stereo Mini Jack) x1
Output Terminals RGB (Mini D-Sub 15 Pin) x1
Audio (RCA L/R Pair) x1
Control Terminals RS-232C (Mini D-Sub 9 Pin) x1
Lamp (Bulb) 210W UHB
Fan Noise 29 dB Eco mode
35 dB Standard mode
Remote Control IR wireless
Power Requirements 100 - 240V 50 / 60Hz
Dimensions (W x H x D) 12.5 x 3.9 x 11.3" (317 x 96.5 x 288 mm)
Weight 8.2 lb (3.7 kg)
