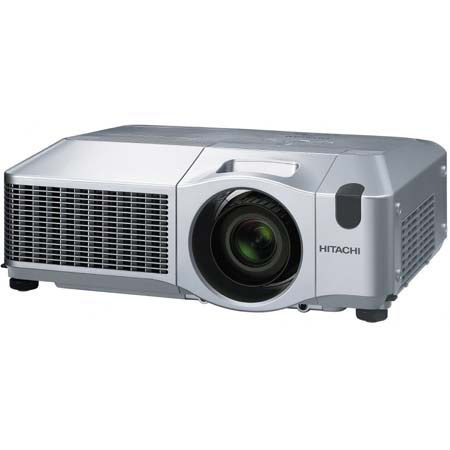

Hitachi CP-X615 LCD Multimedia Projector, 4000 ANSI Lumens, RGB (1024 x 768)
Mfr. Part: CPX615 SKU: HICPX615
enlarge image
|
|
 |
|
|
|
Item Includes
Hitachi CP-X615 LCD Multimedia Projector - Remote Control - Batteries (AA) - RGB Cable - US Power Cord - Multiple Language Operator / Safety Manual - Security Label - Hitachi 3 Year Projector & 90 Day Lamp Warranty
|
Description
Featuring Hitachi PJMan software, the Hitachi CP-X615 3LCD projector can be remotely controlled and maintained through a LAN network connection. The network functionality also makes it easy to control multiple projectors in different rooms and to monitor functions such as remaining lamp life. Additionally, the CP-X615 features Hitachi's proprietary e-Shot technology, which allows AV/IT administrators to transfer still images, such as emergency alerts, from a PC to each projector on the network.
When the e-Shot function is utilized, the images are automatically displayed on all the projectors, including ones that are not in use at the time. This is ideal for applications in which multiple projectors are networked across a large space, such as a school, campus or large corporate environment. The CP-X615 offers a brightness of 4,000 ANSI lumens and a 1000:1 contrast ratio. Additionally, it displays images via a 1.2x zoom lens and is outfitted with a bayonet lens that can support up to four optional lenses for specific application needs based on the size and environment of a room.
The CP-X615 also features horizontal and vertical lens shift. Further lowering the total cost of ownership, the CP-X615 features a lamp door on top of the projector, making lamp replacement easier. Additionally, a high-performance air filter on the side means less time will be spent on maintenance. The CP-X615 also offers Hitachi's proprietary MyText functionality, allowing users to customize the start-up screen with their own text. The CP-X615 features an HDMI (High-Definition Multimedia Interface) input, allowing for the transmission of uncompressed digital audio/video streams.
Other inputs include an RGB port, BNC, Component, S-Video and Composite connectivity. The CP-X615 features a USB port that allows for mouse control. The CP-X615 also offers advanced anti-theft features, including a transition detector (a sensor located inside the projector that recognizes when the projector has been moved), as well as a security bar and Kensington slot. The CP-X615 also boasts four 4W built-in speakers, providing sufficient sound without the need for external audio devices. |
Features
 |
4,000 ANSI Lumens |
|
Native XGA Resolution |
|
1 RGB input / 1 BNC input |
|
1 RGB output |
|
16W speaker output |
|
Lamp door on the top |
|
29 dB (Whisper Mode) |
|
Horizontal & Vertical lens shift |
|
Side-Mounted High Performance Filter |
|
Component / Composite / S-Video |
|
Approx. 3,000 hrs. (whisper Mode) |
|
Security Bar & Transition Detector |
|
Network Control, Maintenance & Security |
|
Instant On/Off |
|
1000:1 Contract Ratio |
Specifications
| Liquid Crystal Panel Structure | 0.8" Polysilicon Active-matrix TFT x 3 |
| Number of Pixels | 786,432 Pixels |
| Resolution Video | 540 TV lines |
| Resolution RGB | 1024 dots x 768 lines |
| Colors | 16.7 million colors |
| Aspect Ratio | Native 4:3 / 16:9 compatible |
| Lens | F1.7 - 1.9, manual zoom x 1.2 |
| Throw Ratio (distance : width) | 1.5 - 1.8 : 1 |
| Lamp | 275W UHB |
| Brightness | 4,000 ANSI lumens |
| Expected lamp Life | Approximately 2,000 hours (normal) 3,000 hours (whisper) |
| Contrast Ratio | 1000 : 1 (using Active Iris) |
| Speaker Output | 16W (4 speakers) |
| Power Supply | AC100 - 120V / AC220 - 240V 50/60 Hz Power |
| Power Consumption | 460W |
| Operating Temperature | 5°C - 35°C (41°F - 95°F) |
| Input Signals RGB | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13", MAC16" |
| Input Signals Composite Video | NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N |
| Input Signals Component Video | 480i, 576i, 480p, 720p, 1080i |
| Acoustic Noise Level | 35 dB (29 dB in whisper mode) |
| H-Sync | 15 kHz - 106 kHz |
| V-Sync | 50 kHz - 120 kHz |
| Vertical Keystone | + / - 40° |
| Horizontal Keystone | + / - 20° |
| Approvals | UL60950 / C-UL, FCC Part15, Class B, EN60950 |
| RGB Input | Analog RGB: 15-pin D-sub connector x 1, BNC Terminal x 1 |
| RGB Output | RGB: 15-pin D-sub connector x 1 |
| Digital Input | RGB: HDMI X1 |
| Video Input S-Video | Mini DIN 4-pin connector x 1 |
| Video Input Composite Video | RCA jack x 1 |
| Video Input Component Video | RCA jack x 3, BNC Terminals (Shared with Analog RGB) |
| Audio Input | Stereo mini jack x 2, RCA (L/R) x 2 pairs |
| Audio Output | Stereo mini jack x 1 |
| Ethernet | RJ-45 port / 100 base-T |
| Control Terminals | 9-pin D-sub connector x 1 (RS-232 control) |
| Lamp | CPX807LAMP (DT00871) |
| Remote Control | HL02194 |
| Filter | MU03642 |
| Additional Features | Kensington Slot, MyMemory / MyScreen / MyButtons, Digital Gamma Correction, Whiteboard/Blackboard Mode, Input Source Naming, Wired Remote |
| Dimensions (W x D x H) | 16.5" x 12.6" x 5.5" |
| Weight | 15.8 lbs |
| Warranty | Hitachi 3 year projector & 90 day lamp warranty |
| | |
|
|
|
|
|
|
|
|
|
|
