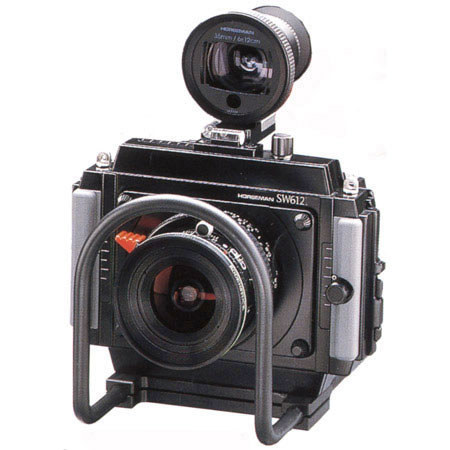

Horseman Super Wide SW-612 Professional Multi-Format Panorama Camera Kit w/Shift, w/Apo-Grandagon 55mm f/4.5, Viewfinder and 6x12 Back

SKU: HM21644 MFR: 21644
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$7,368.90
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Horseman SW-612

Current and potential users of the Horseman SW612 super wide-angle camera can now expand their range of tools by a new dimension: SHIFT. To this end, Horseman has developed a three-part camera body which permits 17mm (either way) of up/down and 15mm (also either way) of sideways shift.

The world's first hand-held super wide angle camera with shift capabilities in both directions, the Horseman SW612 Professional is a particularly welcome addition in architectural and interior photography where perspective often needs to be controlled, and when working in restricted spaces.

A masterpiece of precision engineering, the SW612 Professional is a three-part body consisting of three extremely thin frames which move relatively to each other on tapered roller steel bearings. Movement is smooth and quiet, and the bearings have been designed for long service life without ever requiring lubrication. The front (lens-side) frame provides the vertical shift with a total stroke of 34mm, while the rear frame shifts sideways with a maximum stroke of 30mm.

The Horseman SW612 Professional is available as a complete system including lenses, and film holders, etc., but the body is also retro-fittable to all current 612 systems. It is now equipped with fluid levels, permitting accurate leveling in all three axes.

Wherever super wide-angle coverage is required, the Horseman SW612 Professional opens up entirely possibilities of image control with the world's first two-way shift capability.

Horseman SW-612 Includes

  • Camera Body, Lens Unit, Roll Film Holder and View Finder with a standard mask and a pre-shifted mask set.

Horseman SW-612 Features

  • World's first hand held Ultra Wide-Angle medium format cameras.
  • Ideal equipment for Architectural, Interior Design and Scenic photography.
  • The SW612 Profesiional features a Vertical and Horizontal Shift capability of 34mm rise/fall and 30mm lateral shift.

Horseman SW-612 Specifications

Type 6x12cm / 6x9cm / 6x7cm Multi-Format Panoramic Camera with Vertical and Lateral Shift movements
Lens Mount Helicoid Focusing Mounted on Special Board
Lenses Rodenstock Apo-Grandagon 35mm F4.5
Apo-Grandagon 45mm F4.5
Apo-Grandagon 55mm F4.5
Grandagon-N 65mm F4.5
Grandagon-N 75mm F6.8
Grandagon-N 90mm F6.8
Viewfinder Optional 5-Element Covers a Maximum Viewing Angle of 105 degrees with Interchangeable Finder Masks Matched to Different Focal Lengths
Focusing by Focus Ring

(Visual Focusing or Ground Glass Focusing)
Film 120 Rollfilm 6 Exposures with 6x12 Back, 8 Exposures with 6x9 Back and 10 Exposures with 6x7 Back
Winding Rollfilm Holder Film Advance Lever
Shutter Mechanical Leaf Type in Lens with Speeds from 1 Sec to 1/500 Sec + B and T
Flash Synch X Sync All Speeds Up to 1/500 Sec
Dimensions 171(W) x 136(H) x 133(D)
Weight 1.9kg (45mm Lens + 6x12 Film Holder, without View Finder)
Notes & Special features Vertical Shift 34mm (Rise 17mm + Fall 17mm), Lateral Shift 30mm (15mm L/R each)
