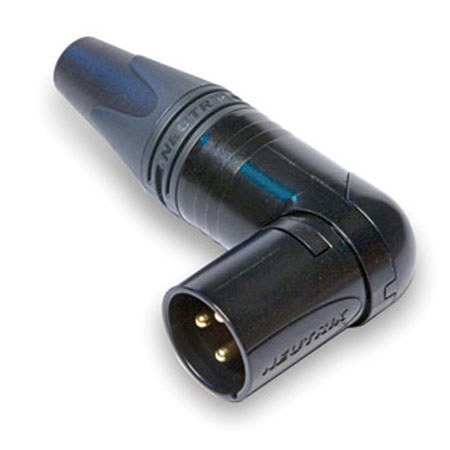

Hosa Technology Neutrik 3 Pole Right Angle XLR Male Cable Connector, Gold-Plated Contacts, Black-Chrome Housing

Hosa Technology
SKU: HONC3MRXB MFR: NC3MRX-B
Made in USA

Our Price

$10.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Hosa Technology

The Hosa Neutrik 3 Pole Right Angle XLR Male Cable Connector (Gold-Plated Contacts) is the right angle version of the XX connector series cable. This cable connector offers features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Hosa Technology Features

  • Slim right-angled connector
  • 7 selectable cable outlet positions
  • Male connector with improved locking recess without "window," more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland offers high protection against cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design makes it valuable and handy

Hosa Technology Specifications

Capacitance
Between Contacts: =4 pF
Contact Resistance
Inner: =3 mOhm
Dielectric Strength
1.5 kVDC
Insulation Resistance
Initial: >2 GOhm
Rated Current Per Contact
16 A
Rated Voltage
50 V
Cable
OD (Outer Diameter): 0.14 to 0.32" (3.5 to 8 mm)
Insertion Force
=20 N
Withdrawal Force
=20 N
Lifetime
>1,000 mating cycles
Wire Size
0.1 sq. in (2.5 sq. mm)
14 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Boot
Polyurethane
Contact Plating
2 um Ag
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Locking Element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Black chromium
Strain Relief
Polyacetal (POM)
Flammability
UL 94 HB
Standard Compliance
IEC 61076-2-103
Protection Class
IP40
Solderability
Complies with IEC 68-2-20
Temperature Range
-22 to 176deg.F (-30 to 80deg.C)
Dimensions
2.73x1.52x0.75" / 6.93x3.86x1.90cm
