iKan

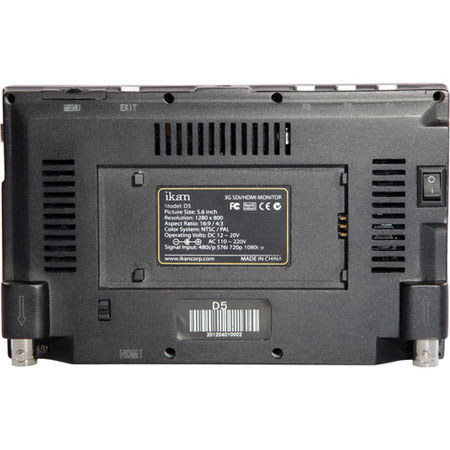

ikan D5 5.6" 3G-SDI LCD Monitor with Nikon EN-N Battery Plate, 300 NIT LCD Brightness, 1280x800 HD Panel, 400:1 Contrast Ratio

SKU: IAD5N MFR: D5-N
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$770.00 List Price

Our Price

$629.10
Free Shipping
Qty:

Add to Wishlist

About this item

The ikan D5 5.6" 3G-SDI LCD Monitor with Nikon EN-N Battery Plate is outfitted with 1280 X 800 HD resolution for the attention to detail a video professional needs. It is equipped with false color and peaking the D5 enables the video professional to deliver precision shots. The D5's small, lightweight design is perfect for handheld rigs.

The D5's HDMI input is complimented by a 3G-SDI input/ output along with a headphone audio out feature. The customized function buttons on the back of the D5 can be tailored for your workflow. Furthermore, the D5's frame has a rubberized texture for better grip and handling making it easy to maneuver.

What's Included With This Item

  • ikan D5-N 5.6" 3G-SDI LCD Monitor
  • Nikon EN-N Battery Plate
  • AC Adapter
  • SM201 Mount
  • ikan 1 Year Warranty

Key Features

  • HD Resolution: Although the D5 has a 5.6-inch screen, with 1280 X 800 HD resolution what you see is what you get! The D5 outputs crisp, clear shots on the field, which means less time in the editing room
  • Flexible Battery System: The D5 has a flexible battery system that supports ikan's BP5 battery plate of your choice
  • Advanced Software Features: The D5 is loaded with advanced software features like false color and peaking. The D5 is designed with a flexible battery system that supports Sony, Canon, Canon-E6 and Panasonic
  • Peaking: The D5 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • DSLR Scaling: The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen - convenience made simple
  • Movable pixel-to-pixel: The D5's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • Clip Guides: The D5 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

Technical Specs

Diagonal Size 5.6"
LCD Brightness 300 NIT
Viewing Angles 160 Horizontal
160 Vertical
Video Outputs 3G-SDI
Resolution 1280 x 800
Contrast Ratio 400:1
Operating Volts DC 6v to 24v
Inputs 3G-SDI, HDMI
Audio Output Headphone
Supported Resolutions & Frame Rates 3G SDI:
1920x1080p at 50, 59.94, 60Hz
HD SDI:
1280x720p at 50, 59.94, 60Hz
1920x1080i at 50, 59.94, 60Hz
1920x1080psf at 23.98, 24, 25, 29.97, 30Hz
1920x1080p at 23.97, 24, 25, 29.94, 30Hz
SD SDI:
720x480i at 60Hz
720x576i at 50Hz
HDMI: 720x480i & 720x480p at 59.94, 60Hz
720x576i & 720x576p at 50Hz
1280x720p at 50, 59.94, 60Hz
1920x1080i at 50, 59.94, 60Hz
1920x1080psf at 24, 25, 29.97, 30Hz
1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
Dimension (HxWxD) 4.10x6.50x0.90" (10.41x16.51x2.28cm)
Weight 0.60lbs (0.27kg)
