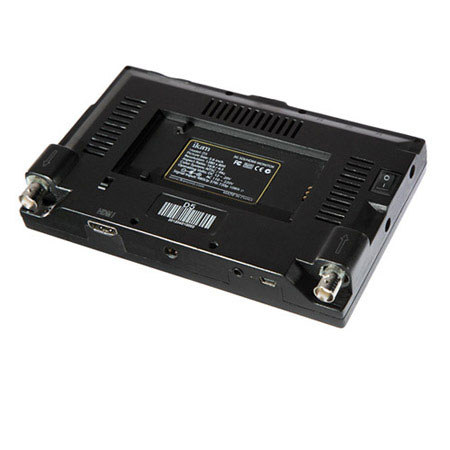

iKan D5 5.6" 3G-SDI LCD Monitor with Hi-Def Panel and Panasonic G6 Battery Plate

SKU: IAD5PG6 MFR: D5-PG6
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$770.00 List Price

Our Price

$629.10 $25 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the iKan D5

The ikan D5 5.6" 3G-SDI LCD Monitor with Hi-Def Panel and Panasonic G6 Battery Plate is outfitted with 1280 X 800 HD resolution for the attention to detail a video professional needs. It is equipped with false color and peaking the D5 enables the video professional to deliver precision shots.

The D5's small, lightweight design is perfect for handheld rigs. The D5's HDMI input is complimented by a 3G-SDI input/ output along with a headphone audio out feature. The customized function buttons on the back of the D5 can be tailored for your workflow. Furthermore, the D5's frame has a rubberized texture for better grip and handling making it easy to maneuver.

Although the D5 has a 5.6-inch screen, with 1280 X 800 HD resolution what you see is what you get! The D5 outputs crisp, clear shots on the field, which means less time in the editing room.

The D5 has a flexible battery system that supports ikan's BP5 battery plate of your choice. The D5 is loaded with advanced software features like false color and peaking. The D5 is designed with a flexible battery system that supports Sony, Canon, Canon-E6 and Panasonic. Each of these features is highly effective in their own right creating a smooth workflow for superior results. With all the features you need at the prices you want the D5 provides endless possibilities for the video professional.

iKan D5 Includes

  • ikan D5 5.6" 3G-SDI LCD Monitor
  • AC Adapter
  • Panasonic G6 Battery Plate
  • SM201 Shoe Mount
  • ikan 1 Year Warranty

iKan D5 Features

  • Peaking: The D5 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • DSLR Scaling: The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen - convenience made simple
  • "Movable pixel-to-pixel: The D5's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • Clip Guides: The D5 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan D5 Specifications

Diagonal 5.6"
LCD Brightness 300 NIT
Viewing angles 160 (H)/160 (V)
Video Outputs 3G-SDI
Resolution 1280 x 800
Contrast Ratio 400:1
Operating Volts DC 6v to 24v
Inputs 3G-SDI, HDMI
Audio Output Headphone
Supported Reso & Frame Rates: 3G SDI 1920x1080p at 50, 59.94, 60 Hz
Supported Reso & Frame Rates: HD SDI 1280x720p at 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 23.98, 24, 25, 29.97, 30 Hz
1920x1080p at 23.97, 24, 25, 29.94, 30 Hz
Supported Reso & Frame Rates: SD SDI 720x480i at 60Hz
720x576i at 50Hz
Supported Reso & Frame Rates: HDMI 720x480i & 720x480p at 59.94, 60 Hz
720x576i & 720x576p at 50 Hz
1280x720p at 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 24, 25, 29.97, 30 Hz
1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
Dimensions (HxWxD) 4.1x6.5x0.9" / 10.41x16.51x2.28cm
Weight 0.6 lbs / 0.27 kg
