About iKan D5w

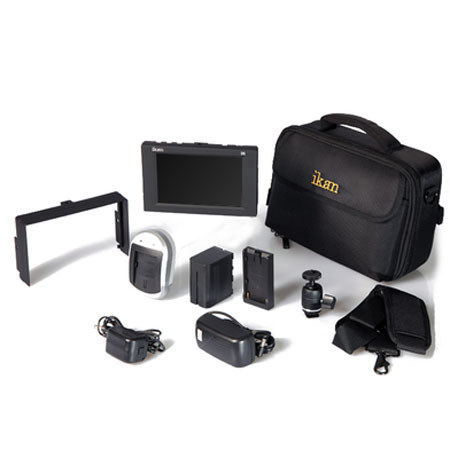

The iKan D5w Field Monitor Deluxe Kit with Canon LP-E6 Battery Plate is a trendy and efficient monitor with SDI and HDMI connections, with a hi-def screen and with a comprehensive set of software features. The software features include the advanced and not-so-common Waveform. The purpose of these features and of the rest of the software features, is to help you fine-tune factors like exposure and focus before you shoot your scene. In relation, the monitor's hi-def screen, at 1280 x 800 pixels, also not-so-common, is optimal for displaying and making use of these features.

The monitor weighs only about a half-a-pound and is about an inch thick and its outer body has a rubberized texture. All the buttons are away from clear view, most located at the top corners, more towards the back panel than the front. Three of these buttons are assignable. Another button, an "EXIT" button, along with a rotary wheel control the monitor's menu. And an "INPUT" button selects between the SDI and HDMI inputs.

The monitor comes with a Canon LP-E6 battery plate, which is at any point optionally interchangeable for a different plate. Compact and full-featured, the D5w is great for precision shooting, whether in videography or filmmaking.

iKan D5w Features

  • Peaking: The D5 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • DSLR Scaling: The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen - convenience made simple
  • Movable pixel-to-pixel: The D5's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • Clip Guides: The D5 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan D5w Specifications

Screen Size
5.6" diagonally
1280 x 800
300 nit
Contrast Ratio
1x 3.5 mm headphone jack
Viewing Angle
160 x 160deg.
Supported Resolutions: 3G-SDI
1920 x 1080p at 50, 59.94, 60 Hz
Supported Resolutions: HD-SDI
1280 x 720p at 50, 59.94, 60 Hz
1920 x 1080i at 50, 59.94, 60 Hz
1920 x 1080psf at 23.98, 24, 25, 29.97, 30 Hz
1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz
Supported Resolutions: SD-SDI
720 x 480i at 60 Hz
720 x 576i at 50 Hz
Supported Resolutions: HDMI
720 x 480i & 720 x 480p at 59.94, 60 Hz
720 x 576i & 720 x 576p at 50 Hz
1280 x 720p at 50, 59.94, 60 Hz
1920 x 1080i at 50, 59.94, 60 Hz
1920 x 1080psf at 24, 25, 29.97, 30 Hz
1920 x 1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
Operating Voltage
DC6 to 24V
Dimensions (HxWxD)
4.1x6.5x0.9" / 10.41x16.51x2.28cm
Monitor: 0.6 lbs (0.27 kg)
