iKan D5w 5.6" 3G-SDI LCD Waveform Monitor with Hi-Def Panel and Sony L Series Battery Plate

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,100.00 List Price

Our Price

$899.10 $35 per week
Free Expedited Shipping
Add to Wishlist

About the iKan D5w

The ikan D5w 5.6" 3G-SDI LCD Waveform Monitor with Sony L-Series Battery Plate is a trendy and efficient monitor with SDI and HDMI connections, with a hi-def screen and with a comprehensive set of software features. The software features include the advanced and not-so-common Waveform, RGB Parade and Vectorscope. The purpose of these features and of the rest of the software features, is to help you fine-tune factors like exposure and focus before you shoot your scene. In relation, the monitor's hi-def screen, at 1280 x 800 pixels, also not-so-common, is optimal for displaying and making use of these features.

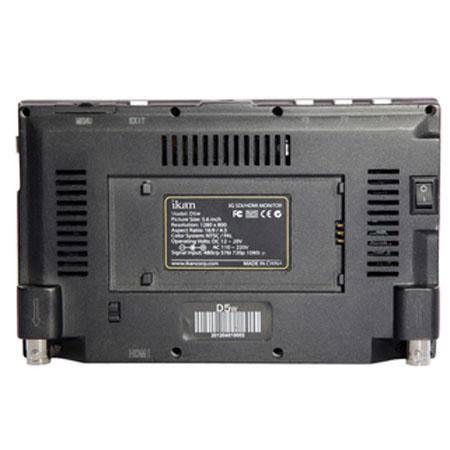

The monitor weighs only about a half-a-pound and is about an inch thick and its outer body has a rubberized texture. All the buttons are away from clear view, most located at the top corners, more towards the back panel than the front. Three of these buttons are assignable. Another button, an "EXIT" button, along with a rotary wheel control the monitor's menu. And an "INPUT" button selects between the SDI and HDMI inputs.

The monitor comes with a Sony L series battery plate, which is at any point optionally interchangeable for a different plate. Compact and full-featured, the D5w is great for precision shooting, whether in videography or filmmaking.

iKan D5w Includes

  • ikan D5w 5.6" 3G-SDI LCD Waveform Monitor
  • AC Adapter
  • SM201 Shoe Mount
  • Sony L Series Battery Plate
  • ikan 1 Year Warranty

iKan D5w Features

  • Peaking: The D5w is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • DSLR Scaling: The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen - convenience made simple
  • Movable pixel-to-pixel: The D5w's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • Clip Guides: The D5w offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan D5w Specifications

Diagonal 5.6"
LCD Brightness 300 NIT
Viewing angles 160(H)/160 (V)
Video Outputs 3G-SDI
Resolution 1280 X 800
Contrast Ratio 400:1
Operating Volts DC6 to 24V
Inputs 3G-SDI, HDMI
Audio Output Headphone
Supported Reso & Frame Rates: 3G SDI 1920x1080p at 50, 59.94, 60 Hz
Supported Reso & Frame Rates: HD SDI 1280x720p at 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 23.98, 24, 25, 29.97, 30 Hz
1920x1080p at 23.97, 24, 25, 29.94, 30 Hz
Supported Reso & Frame Rates: SD SDI 720x480i at 60Hz
720x576i at 50Hz
Supported Reso & Frame Rates: HDMI 720x480i & 720x480p at 59.94, 60 Hz
720x576i & 720x576p at 50 Hz
1280x720p at 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 24, 25, 29.97, 30 Hz
1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
Dimensions (HxWxD) 4.1x6.5x0.9"/ 10.41x16.51x2.28cm
Weight 0.6 lbs / 0.27kg
