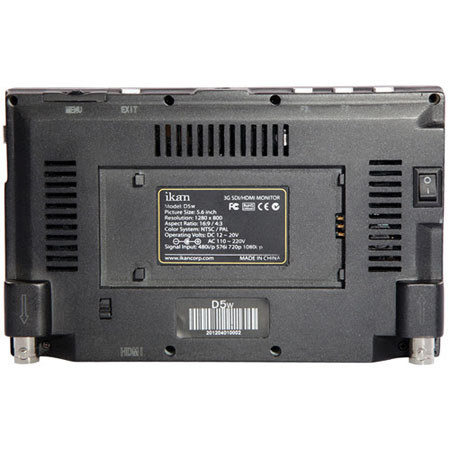

iKan D5W 5.6" 3G-SDI Waveform LCD Monitor with Sony BP-U Battery Plate


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $1,100.00

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • HD Resolution
  • Flexible Battery System
  • Advanced Software Features
  • Monochrome & Color Peaking features
  • False Color for flawless shot exposure
  • DSLR Scaling
  • Movable pixel-to-pixel
  • Adjustable Clip Guide displays overexposed images
iKan D5W: Picture 1 regular $999.00

About iKan D5W

The iKan D5W 5.6" 3G-SDI Waveform LCD Monitor with Sony BP-U Battery Plate features assist the video professional in getting the shot right the first time. The D5w's 1280 X 800 high definition panel is optimal for displaying its advanced software features. The D5w is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.

The D5w's small lightweight design makes it perfect for handheld rigs and easy to store. The D5w's HDMI input is complimented by a 3G-SDI input/output along with the feature of headphone audio out. The customized function buttons on the back of the D5w can be tailored for your workflow and optimization. Furthermore, the D5w's frame has a rubberized texture for better grip and handling making it easier to maneuver.

This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

iKan D5W Features

  • HD Resolution: Although the D5 has a 5.6-inch screen, with 1280 X 800 HD resolution what you see is what you get! The D5 outputs crisp, clear shots on the field, which means less time in the editing room
  • Flexible Battery System: The D5 has a flexible battery system that supports iKan's BP5 battery plate of your choice
  • Advanced Software Features: The D5 is loaded with advanced software features like false color and peaking. The D5 is designed with a flexible battery system that supports Sony, Canon, Canon-E6 and Panasonic
  • Peaking: The D5 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: he False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • DSLR Scaling: The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen - convenience made simple
  • Movable pixel-to-pixel: The D5's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • Clip Guides: The D5 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan D5W Specifications

Diagonal Size
LCD Brightness
300 NIT
Viewing Angles
160 Horizontal
160 Vertical
Video Outputs
1280 x 800
Contrast Ratio
Operating Volts
DC 6v to 24v
Audio Output
Supported Resolutions & Frame Rates
1920x1080p at 50, 59.94, 60Hz
1280x720p at 50, 59.94, 60Hz
1920x1080i at 50, 59.94, 60Hz
1920x1080psf at 23.98, 24, 25, 29.97, 30Hz
1920x1080p at 23.97, 24, 25, 29.94, 30Hz
720x480i at 60Hz
720x576i at 50Hz
HDMI: 720x480i & 720x480p at 59.94, 60Hz
720x576i & 720x576p at 50Hz
1280x720p at 50, 59.94, 60Hz
1920x1080i at 50, 59.94, 60Hz
1920x1080psf at 24, 25, 29.97, 30Hz
1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
Dimension (HxWxD)
4.10x6.50x0.90" (10.41x16.51x2.28cm)
0.60lbs (0.27kg)
Mfr #
