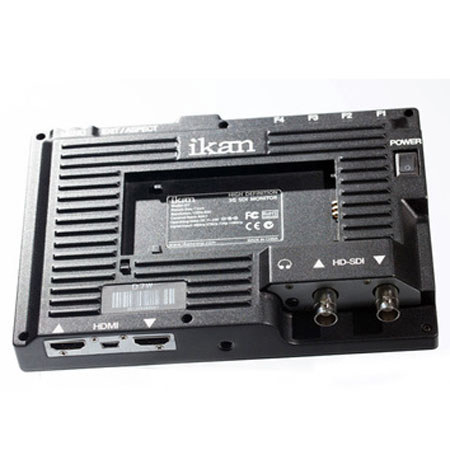

iKan D7W 7" 3G-SDI LCD Waveform Monitor with Sony BP-U Battery Plate, 400 nits Brightness, 1280x800 HD Panel, 800:1 Contrast Ratio, DSLR Scaling

iKan D7W: Picture 1 thumbnail iKan D7W: Picture 2 thumbnail

About iKan D7W

The iKan D7W 7" 3G-SDI LCD Waveform Monitor with Sony BP-U Battery Plate is one of the newest, sturdiest additions to the family of iKan field monitors. The D7w is a 7" (digital only) on camera field monitor devised for the video professional who utilizes various input types and power options. Its sleek yet durable aluminum construction dissipates heat and greatly enhances the D7w's longevity. The D7w is equipped with peaking and false color features that the VX series is renown for plus it has an IPS (In-plane switching) panel which puts out vibrant colors and great viewing angles.

This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

iKan D7W Features

  • 1280 X 800 IPS HD Panel: With the D7's 7-inch 1280 X 800 IPS HD panel what you see is truly what you get! The IPS HD Panel delivers near perfect viewing angles outputting crisp, clear shots on the field, which means less time in the editing room
  • Durable Aluminum Construction: The D7's frame is constructed with heavy-duty aluminum making it perfect for the video professional bouncing from set to set. Its solid, roughed design ensures the D7 performs at its best even in the roughest terrains
  • Flexible Battery System: The D7 has a flexible battery system that supports iKan's BP5 battery plate of your choice
  • Advanced Software Features: The D7 is loaded with advanced software features like false color, peaking, movable pixel-to-pixel and DSLR scaling. Each of these features is highly effective in their own right creating a smooth workflow for superior results
  • Peaking: The D7 is equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • Movable pixel-to-pixel: The D7's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • Clip Guides: The D7 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan D7W Specifications

Diagonal Size
LCD Brightness
400 NIT
Viewing Angles
178deg. horizontal
178deg. vertical
Video Outputs
1280 x 800
Contrast Ratio
Operating Volts
7-24V (DC)
Supported Resolutions & Frame Rates
1920x1080p at 50, 59.94, 60Hz
1280x720p at 50, 59.94, 60Hz
1920x1080i at 50, 59.94, 60Hz
1920x1080psf at 23.98, 24, 25, 29.97, 30Hz
1920x1080p at 23.97, 24, 25, 29.94, 30Hz
720x480i at 60Hz
720x576i at 50Hz
720x480i & 720x480p at 59.94, 60Hz
720x576i & 720x576p at 50Hz
1280x720p at 50, 59.94, 60Hz
1920x1080i at 50, 59.94, 60Hz
1920x1080psf at 24, 25, 29.97, 30Hz
1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
Dimension (HxWxD)
7x4.90x1" (17.78x12.44x2.54cm)
1 lbs (0.45 kg)
