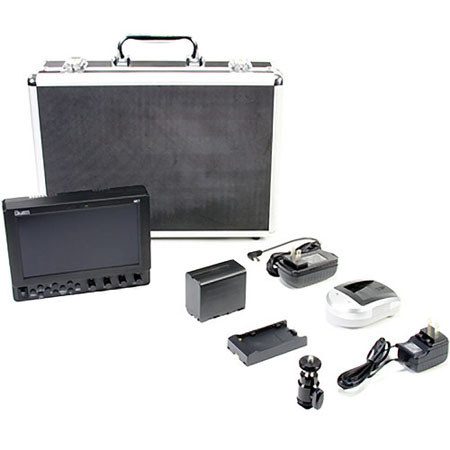

iKan VK7i Field Monitor Deluxe Kit for Sony L Series Battery

iKan
SKU: IAVK7IDKS MFR: VK7I-DK-S
iKan VK7i: Picture 1 thumbnail iKan VK7i: Picture 2 thumbnail iKan VK7i: Picture 3 thumbnail iKan VK7i: Picture 4 thumbnail

About iKan VK7i

The iKan VK7I-DK-S Deluxe Kit with Sony's L-Series DV Battery Plate supports the VK7i 7" (17.78 cm) IPS LCD Monitor and makes it a complete kit with Sony's L Series DV Battery Plate and other important accessories. The VK7i 7" (17.78 cm) IPS LCD Monitor comes with a HD IPS (In Plane Switching) LCD panel and gives the monitor a resolution of 1280 x 800 with a much better viewing angle and better color rendition. It comes equipped with new features like on-screen tally, HDMI loop through, and many other features that make this a dependable field kit monitor. The power solutions in the kit are as diverse as the monitor itself.

The VK7i 7" (17.78 cm) IPS LCD Monitor has On-Screen Tally System. This monitor has an integrated tally system at the front and rear, but instead of using lights on the front chassis of the monitor, the front tally is displayed on the screen. A variety of inputs are all complimented with lossless outputs. This monitor includes Composite (BNC), Component HD and SD (BNC), and HDMI ports.

iKan VK7i Features

  • BP5-S Sony L-Series DV Battery Plate
    @@ 12 V power
    @@ BP5-S is compatible with any Sony-style L-series batteries
    @@ Compatible with iKan monitors
  • Peaking - The Monitor is equipped with Monochrome Peaking features, which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For best results, be sure that the subject is properly exposed.
  • False Color - The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under / over luminance warning ensures consistent quality. By adjusting the camera's iris, the subject of the image changes color based on specific brightness values indicating optimal exposure.
  • Movable Pixel-To-Pixel - The VK7i 7" (17.78 cm) IPS LCD Monitor's 1:1 pixel-to-pixel mapping allows a video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.
  • Clip Guides - The VK7i 7" (17.78 cm) IPS LCD Monitor offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit flashes in a vivid purple, indicating only the overexposed area.
  • @@ SM103 Camera Shoe Mount v.3
    @@ 1280 x 800 IPS LCD panel
    @@ Manual backlight adjustment
    @@ Guides (4:3 & 16:9 Framing Safe Area)
    @@ Check field (blue, green, red, monochrome)
    @@ H / V line field delay
    @@ DSLR scaling (only HDMI)
    @@ Adjustable RGB
    Underscan

iKan VK7i Specifications

Diagonal Size
7"
LCD Brightness
400 Nits
Viewing angles
178°
Video Inputs
HDMI, Composite, Component
Resolution
1280 x 800
Contrast Ratio
800:1
Operating Volts
DC 6v to 24v
Power Consumption
8 Watts
Dimensions (HxWxD)
5.6x7.3x1.6" / 14.22x18.54x4.06cm
Weight
6.5 lbs / 2.94kg (monitor 1.1 lbs/0.5kg)
Mfr #
VK7I-DK-S
SKU
IAVK7IDKS
