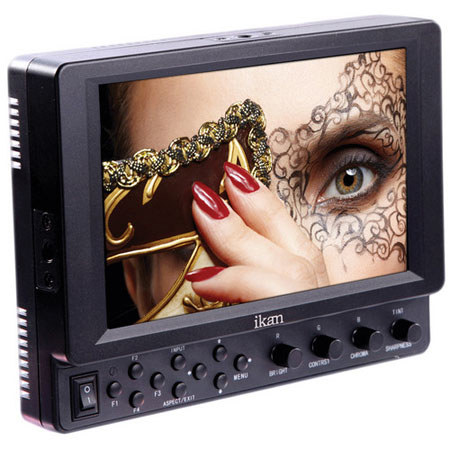

iKan VK7I-S 7" IPS LCD Monitor with Sony L Series Battery Plate, 1280 x 800 Resolution, 400 LCD Brightness, 800:1 Contrast Ratio

iKan
iKan VK7I-S: Picture 1 thumbnail iKan VK7I-S: Picture 2 thumbnail iKan VK7I-S: Picture 3 thumbnail

About iKan VK7I-S

The iKan VK7I-S 7" IPS LCD Monitor with Sony L Series Battery Plate now employs an HD IPS (In-plane Switching) LCD panel, giving the monitor 1280 x 800 resolution, wider viewing angles and exceptional color rendition. An upgraded feature set includes on-screen tally and HDMI loop-through, plus the original VK7 features such as; RGB adjust, Peaking, False Color, DSLR Scaling and Clip Guides.

The VK7i is easy to power in the field with multiple battery plate options from DV battery, DSLR, or Pro battery. The VK7i has an IPS Panel with a resolution of 1280x800(720p+). In-Plane Switching provides the monitor with wider viewing angles and better color reproduction than standard LCD panels. The VK7i has an integrated tally system front and rear, but instead of using lights on the front chassis of the monitor, the front tally is displayed on screen. A variety of inputs are all complimented with lossless outputs. The monitor includes Composite (BNC), Component HD and SD (BNC) and HDMI ports.

iKan VK7I-S Features

  • The VK7i is equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus
  • The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time
  • The VK7i's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail
  • The VK7i offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan VK7I-S Specifications

Diagonal
7"
LCD Brightness
400 Nits
Viewing angles
178 deg.
Video Outputs
HDMI, Composite, Component
Resolution
1280 x 800
Contrast Ratio
800:1
Operating Volts
DC 6v to 24v
Power Consumption
8 Watts
Inputs
HDMI, Composite, Component
Supported reso & Frame Rate: Video
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM
Supported reso & Frame Rate: YPrPb
720x480i at 60 Hz
720x576i at 50 Hz
1280x720p at 23.97, 24, 25, 29.94, 30 Hz
1280x720p at 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 24, 25, 29.97, 30 Hz
1920x1080p at 23.97, 24, 25, 29.94, 30 Hz
1920x1080p at50,59.94, 60 Hz
Supported reso & Frame Rate: HDMI
1920x1080p at 50,59.94, 60 Hz
720x480i & 720x480p at 59.94, 60 Hz
720x576i & 720x576p at 50 Hz
1280x720p at 50, 59.94, 60 Hz
1920x1080i at 50, 59.94, 60 Hz
1920x1080psf at 24, 25, 29.97, 30 Hz
1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
Weight
1.1lbs / 0.49kg
