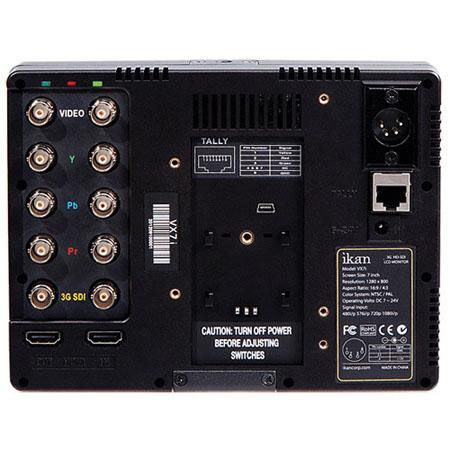

iKan VX7i 7" 3G-SDI Camera Monitor with IPS Panel and Sony L Battery Plate

SKU: IAVX7IS MFR: VX7I-S
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$899.00 List Price

Our Price

$809.00 $32 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the iKan VX7i

The ikan VX7i 7" 3G-SDI Camera Monitor with IPS Panel and Sony L Battery Plate includes a 7" monitor that's closely similar to other 7" ikan monitors, even identical to some, in all respects except one: the VX7i features a tally system, a dual-sided one, with three indicators built into the rear chassis and with three functioning on-screen.

The monitor comes coupled with a Sony L DV battery plate and optionally accepts V-mount and Anton Bauer pro battery plates via mounting holes on its rear panel. Front panel controls include two assignable function buttons, input selection buttons and knobs for aspect ratio, brightness, contrast and chroma.

iKan VX7i Includes

  • ikan VX7i 7" 3G-SDI Camera Monitor with IPS Panel
  • Sony L Series DV Battery Plate
  • AC Adapter
  • Cold Shoe Mount
  • ikan 1 Year Warranty

iKan VX7i Features

  • HD & IPS: The screen has a resolution of 1280 x 800, which is higher than 720p, letting you see images in hi-res HD. The screen also features IPS functionality (in-plane switching), which gives you a wide viewing angle of 170deg. by 170deg
  • Dual Tally Systems: The monitor features front and back tally systems: three different colors on-screen and three LED lights on the back of the panel. When the tally is connected, it lets the user know when they are recording or switched to on air
  • Input / Output: A diverse set of connections: 3G-SDI, HDMI, Composite and Component inputs and outputs. The Component and Composite ones are on BNC connectors
  • Support for Multiple Battery Solutions: Your VX7i comes with a Sony L battery plate, which will accept a compatible DV battery, but alternatively you can connect V-mount or Anton Bauer pro battery plates. The monitor features mounting holes for these
  • Peaking: The VX7i is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus
  • False Color: The False Color feature uses a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning lets you get the quality you want every time
  • DSLR Scaling: The DSLR Scaling function enables you to extend your DSLR's HDMI output to any option of four display options: Normal, 3:2, 16:9 or Full Screen
  • Movable Pixel-to-Pixel: 1:1 pixel-to-pixel mapping lets you choose an element in your shot and to zoom in on that element to see it in the resolution it was shot in
  • Clip Guides: Offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. You would simply assign the upper IRE to you preference and any exposure over the IRE limit will flash in a vivid purple, indicating only the over exposed area

iKan VX7i Specifications

Diagonal 7"
LCD Brightness 400
Viewing angles 170 (H) 170 (V)
Inputs 3G-SDI, HDMI, Component, Composite
Resolution 1280 x 800
Contrast Ratio 800:1
Operating Volts DC 6v to 24v
Power Consumption 8 Watts
Dimensions (HxWxD) 5.6x7.3x1.6" / 14.22x18.5x4.06cm
Weight 1.1lbs / 0.49kg
