| Image sensor |
1/3-inch CMOS |
| Total Pixels |
Approx. 16.8 Megapixels |
| Effective Pixels |
Approx. 10.1 Megapixels |
| Focal Length |
4.0 (W) - 48.0mm (T) (35mm film equivalent: 28 (W) - 336mm (T)) |
| Digital Zoom |
4x |
| Focusing Range |
Auto: 0.4 in. (1cm) - infinity (W), 3.3 ft. (1m) - infinity (T) Normal: 2.0 in. (5cm) - infinity (W), 3.3 ft. (1m) - infinity (T) Macro: 0.4 in. - 1.6 ft. (1-50cm) (W) |
| Autofocus System |
TTL Autofocus |
| LCD Monitor |
3.0-inch TFT Color with wide-viewing angle |
| LCD Pixels |
Approx. 461,000 dots |
| LCD Coverage |
Approx. 100% |
| Maximum Aperture |
f/3.4 (W)-f/5.6 (T) |
| Shutter Speed |
1-1/4000 sec. 15-1/4000 sec. (Total shutter speed range) |
| Sensitivity |
Auto, ISO 100/200/400/800/1600/3200 |
| Light Metering Method |
Evaluative, Center weighted average, Spot |
| Exposure Control Method |
AE Lock |
| Exposure Compensation |
+/-2 stops in 1/3-stop increments |
| White Balance Control |
Auto, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom |
| Built-in Flash |
Auto, On, Slow Synchro, Off |
| Flash Range |
1.6 - 8.2 ft. (W), 3.3 - 4.9 ft. (T) (50 cm - 2.5 m (W), 1.0 - 1.5 m (T)) |
| Recycling Time |
10 sec. or less (battery voltage: 3.5 V) |
| Shooting Modes |
Auto, P, Movie Digest, Portrait, Smooth Skin, Smart Shutter, High-Speed Burst, Handheld Night Scene, Low Light, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Soft Focus, Monochrome, Super Vivid, Poster Effect, Color Accent, Color Swap, Underwater, Snow, Fireworks, Long Shutter, Stitch Assist, iFrame Movie, Super Slow Motion Movie |
| Photo Effects |
My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin, Darker Skin, Vivid Blue, Vivid Green, Vivid Red, Custom Color |
| Self Timer |
Approx. 10-sec. delay/approx. 2-sec. delay/custom |
| Continuous Shooting |
[Normal] Approx. 2.8 shots/sec. (in P Mode) Approx. 6.8 shots/sec. (in High-Speed Burst mode) |
| Storage Media |
microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card |
| File Format |
Design rule for Camera File system, DPOF (Version 1.1) compliant |
| Image Recording Format |
Normal, Fine |
| JPEG Compression Mode |
Still Image: Exif 2.3 (JPEG) Video: MOV (Image: H.264; Audio data; Linear PCM (2 channel stereo)) |
| Recording Pixels: Still Images [16:9] |
Large: 3648 x 2048, Medium 1: 2816 x 1584 Medium 2: 1920 x 1080, Small: 640 x 360 |
| Recording Pixels: Still Images [3:2] |
Large: 3648 x 2432, Medium 1: 2816 x 1880 Medium 2: 1600 x 1064, Small: 640 x 424 |
| Recording Pixels: Still Images [4:3] |
Large: 3648 x 2736, Medium 1: 2816 x 2112 Medium 2: 1600 x 1200, Small: 640 x 480 |
| Recording Pixels: Still Images [1:1] |
Large: 2736 x 2736, Medium 1: 2112 x 2112 Medium 2: 1200 x 1200, Small: 480 x 480 |
| Number of Recording Pixels: Video |
[iFrame Movie]: 1280 x 720 (30 fps) [Super Slow Motion Movie]: 640 x 480, 320 x 240 [Miniature Effect]: 1280 x 720, 640 x 480 [Other than the above]: 1920 x 1080 (24 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) |
| Playback Modes File 1 |
Stills & Videos: Auto Rotate (Automatic vertical/horizontal detection), Image Advance (Operation Tools, Transition effects, Scroll Display), Rotate, Favorites, My Category, Smart Shuffle, Slide Show (Playback Interval, Repeat, Effect, Playlist) |
| Playback Modes File 2 |
Still Images: Single, Index (4-100 thumbnails), Magnification (2-10x), Information Display, Red-eye Correction, i-Contrast, Trimming, Resize, My Colors, Focus Check, Histogram, Overexposure Warning Videos: Normal Playback, Slow Motion, Special Playback, Editing, Resume |
| Video Out |
NTSC/PAL (dedicated connector (female) with unified type of digital, audio and video Mini-HDMI connector |
| Audio Out |
Stereo (dedicated connector (female) unified type of digital, audio and video) |
| Other Interface |
Mini-HDMI cable: connection to high definition monitor; miniSD Memory card slot; direct connection to Canon SELPHY Compact Photo Printers, PIXMA Inkjet Photo Printers and PictBridge-compatible printers via camera's USB 2.0 Hi-speed cable |
| Power Source |

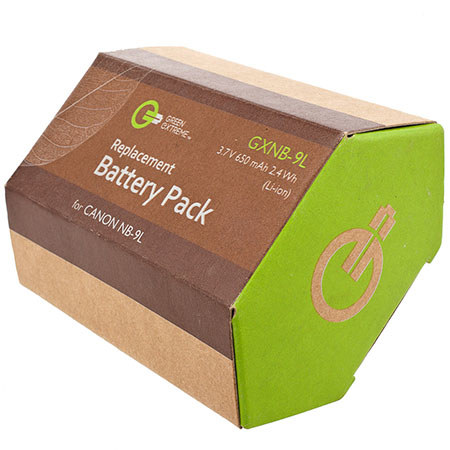

Rechargeable lithium-ion Battery Pack NB-9L |
| Shooting Capacity |
Approx. 190 shots |
| Playback Time |
Approx. 4 hours |
| Operating Temperature |
32-104deg.F/0-40deg.C |
| Operating Humidity |
10-90% |
| Dimensions (W x H x D) |
3.43 x 2.12 x 0.76 in / 87.1 x 53.9 x 19.2mm |
| Weight |
Approx. 5.47 oz. (155g) (Including the battery and memory card) Approx. 4.76 oz. (135g) (Camera only) |
