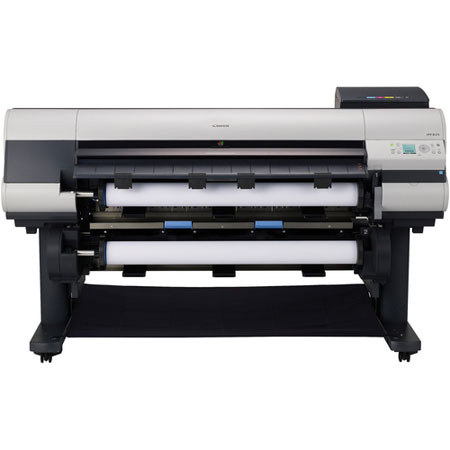

Canon imagePROGRAF iPF825 5-Color 44" Dual Roll Printer, 2,400x1,200 dpi, USB 2.0 / 10/100 Base-T/TX

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Canon iPF825

A 44-inch wide powerhouse printing system designed to enhance productivity for medium to large workgroups, with dual media rolls and high speed throughput, the imagePROGRAF iPF825 is a complete production printing solution. With incredible line accuracy, an 160GB hard drive, excellent media handling and on-board support for HP-GL/2 and HP RTL files, the iPF825 is a complete and easy-to-use printing solution for any professional with a need for producing intricately detailed full-color renderings, CAD drawings, GIS maps and other large-format output.

Equipped with dual media rolls, the iPF825 eliminates the cause of many bottlenecks in busy printing environments. Automatically switch between different media type, sizes or use two rolls of the same paper for printing of large, consecutive runs. Its built-in 160GB hard drive makes handling multiple complex jobs simple, especially in shared printer environments. Relieve workload from your computer, store and retrieve print jobs with the touch of a button and utilize a Remote User Interface and password-protected mailboxes to keep your workgroup productive.

The iPF825's Economy Print Mode helps lower cost per print while its sub-ink tank system enables on-the-fly ink replacement for continuous printing. Add a stacker and large format scanner and realize maximum productivity in any environment.

Summary of Customer Reviews

Customers most agreed on the following attributes:
Difficult to use (3)

Canon iPF825 Features

  • Productivity: Print Longer Without Interruption
  • High-Speed Printing: L-COA processor
  • Precision Printing: High-Density Print Head
  • 160GB Hard Drive
  • Accounting Manager
  • Economy Print Mode
  • Reactive Ink System
  • HDI Driver
  • Canon Printer Driver
  • PosterArtist Lite

Canon iPF825 Specifications

Printer Type
5-Color 44-inch Dual Roll Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2,400 x 1,200 dpi (Max)
OS Compatibility
Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit), Macintosh OSX 10.3.9-10.6 (32 bit), OS X 10.5-10.6 (64 bit)
Standard Interfaces
USB 2.0 High-Speed
10/100 Base-T/TX
Ink Compatibility
4 picoliter
Ink Capacity
330ml per color (Optional 700ml)
Ink Droplet Size
Dye/Pigment Reactive Ink
Buffer Ram
32 GB dedicated file processing memory, 384MB RAM
Hard Drive
160 GB
Media Width
Cut Sheet: 8" - 44"
Roll: 10" - 44"
Media Thickness
Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Roll: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length
59 Feet (18 meters)
Maximum Media Roll Diameter
5.9" (150mm)
Borderless Printing Width
(Roll Media Only): 10", 14", 17", B2 (20.3"/515 mm), A1 (23.4" /594 mm), A0 (33.1"/841 mm), 24", 36", B0 (40.6"/1,030mm), 42"
Paper Feed Method
Roll Feed: Two Rolls, front output
Front Loading Manual Feed: One sheet, front output
GARO (Canon Proprietary), HP-GL/2, HP RTL
Noise Level Approx
Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.8 Belts
Power Source
AC-100-120V (50-60Hz)
Power Consumption
Maximum: 190W or less
Standby: 6W or less
Power Off: 1W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59deg.-86deg. F (15deg.-30deg. C)
User-replaceable items
Print Head (PF-03)
Maintenance Cartridge (MC-09)
Ink Tanks (PFI-303/PFI-703)
Software Included
PosterArtist Lite, Accounting Manager, Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD
Color Set
Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Dimensions (H x W x D)
45.1" x 74.6" x 50.9" / 114.55 x 189.48 x 129.29 cm
Weight Approx.
416.7 lbs. / 189.01 kg with stand

Canon iPF825 Reviews

Reviewed by 4 customers


Can't get it to rotate or print pdf


from Undisclosed

Title says it all. Hard to set odd print sizes so they rotate properly. Won't print any PDF's at all. Difficult to deal with when you cant control what form of input you are getting and stupid since pdf is supposed to be a standard file type.


Good quality, terrible user-friendability


from Undisclosed

First, I advise to everybody who has this plotter - do not upgrade your firmware! Firmware 1.12 adds more headache than features - plotter is turning itself off every 8 or 12 hours, media types disappeared from the list, etc. 1. Print quality is good. It is better than it used to be on our old OCE TSC500. 2. Performance is poor - plotter is simply slow! especially, when it decides to perform a maintenance and you need an urgent print - good luck on that! 3. Loading the paper is very awkward. you need to open covers, remove the shaft, make sure your roll is oriented correctly. Then, plotter wont take it for some reason and you have to start over. 4. My biggest problem now is lack of media types after upgrading firmware to version 1.12. My CAD clear film is gone as an option now and printing transparencies is a nightmare now. Canon told me to install Media Configuration Tool to manage the media, but it is incompatible with Windows 8.1 x64! No way I'm going to downgrade my system just because somebody screwed up plotter firmware! 5. Print catcher is a ridiculous design. You have to keep it open so it can catch the paper, but it might be a problem for the small office where space is limited. As a summary, I wouldn't recommend this printer to anyone and I wish I could find more reviews for it when we bought it otherwise I'd never buy it.


Good Plotter


from Florida

We use the ipf825 on an almost daily basis. It is quick, simple to use and produces nice quality images. The paper is easy to load and ink cartridges are easy to swap out. We are perfectly happy with this plotter.

(18 of 24 customers found this review helpful)




from Undisclosed

Let me start off by saying that this plotter does produce some very nice prints in color or monochrome, but it is extremely difficult to use and manipulate. I’ve had numerous problems, many scrapped prints, and spent many hours trying to get this machine to work the way I and the rest of my office want it to. Some specific examples: • At our company we primarily use either 30� or 36� paper, so we loaded one of each into our plotter. This led to a problem in that, when one roll runs out, the plotter started using the other roll without any notification. To make matters worse, the last bit of paper would catch on the roll, causing it to look like there was still sufficient paper. We finally found the setting that affects this. In order to STOP this automatic switching of paper, we had to ENABLE the setting “Automatically switch paper sources�. I don’t think I need to explain why that is confusing. • Both the plotter and the Status Monitor frequently report one or both rolls as being “Empty� when they clearly are not. We use 500’ rolls, and manually input this distance every time we load a new one, so why it’s prematurely detecting it as empty I have no idea. • Switching the orientation from Portrait to Landscape seems to have no effect. Checking the box “Rotate Page 90 degrees (Conserve Paper)� gave us the result we were looking for, but it would be helpful for the orientation settings to work as typically expected, or to indicate why they are not working this way. I’m sure it’s a simple settings change, but finding it can be difficult and time-consuming. • When paper gets jammed, the plotter does nothing to tell you so. The screen indicates a hardware malfunction, and asks that you power it off and back on again. Naturally, this is not going to clear a paper jam. • The print catcher that came with our plotter is useless. It collects prints into a messy pile which will quickly overflow onto the floor if someone isn’t there to manually attend to it. At times we need to plot hundreds of sheets, and this means someone has to sit there for hours collecting and organizing them. The thing is also very large and bulky, and in our particular situation it gets in the way and presents a tripping hazard. I think this plotter could be very capable and effective, but it is too difficult to reach the intended result. We have spent inordinate amounts of time and materials fighting with this thing, and it’s left my coworkers and myself very frustrated and unsatisfied.
