| Printer Type |

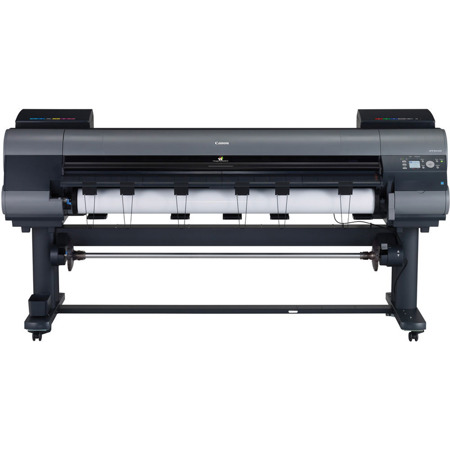

12-Color 60" Printer |
| Number of Nozzles |
Total: 30720 All Colors: 2560 nozzles each |
| Nozzle Pitch |
1200 dpi |
| Nozzle Recovery System |
Non-firing nozzle detection and compensation |
| Print Resolution (Up to) |
2400 x 1200 dpi (Max) |
| OS Compatibility |
Windows (XP/Vista 32/64bit/Windows 7 32/64bit) Macintosh (OSX) |
| Standard Interfaces |
USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| Ink Droplet Size |
4 picoliter LUCIA EX Ink (Pigment based) |
| Ink Capacity |
330ml per color (Optional 700ml) |
| Color Set |
Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Red, Green. Blue, Gray, Photo Gray |
| Buffer Ram |
640MB |
| Hard Drive |
250GB |
| Media Width |
Cut Sheet: 8" - 60" Roll: 10" - 60" |
| Media Thickness |
Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil) Roll: 0.07 - 0.8mm (2.8 - 31.4mil) |
| Maximum Roll Print Length |
59 Feet (18 meters) |
| Maximum Media Roll Diameter |
5.9" (150mm) |
| Borderless Printing Width |
515mm (JIS B2), 1,030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42", 44", 50", 60" |
| Paper Feed Method |
Roll Feed: One Roll, front output Front Loading Manual Feed: One sheet, front output |
| Languages |
GARO (Canon Proprietary) |
| Noise Level Approx |
Operation: 68 dB (A) or less Standby: 35 dB (A) or less |
| Power Source |
AC-100-240V (50-60Hz) |
| Power Consumption |
Maximum: 190W or less Standby: 6W or less Power Off: .5W or less (Compliant with Executive Order) |
| Temperature |
59deg.-86deg. F (15deg.-30deg. C) |
| Relative Humidity |
10-80% (No Condensation) |
| Dimensions (H x W x D) |
45x90.5x30.2" / 1143x2298.7x767.08mm |
| Weight |
316 lbs / 143.34 kg (with stand) |
