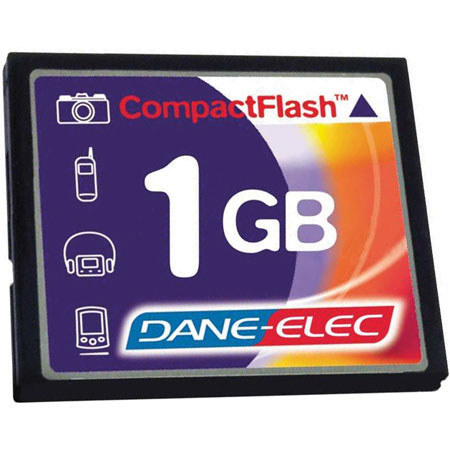

Dane-Elec 1 GB Compact Flash Memory Card
Mfr. Part: DACF1024R SKU: IDECF1GB
enlarge image
|
|
 |
|
|
|
Description
· The DANE-ELEC CompactFlash memory card, type 1, is a non volatile memory extension. It is generally used in digital cameras, handheld computers and laptops via a PCMCIA adaptor. DANE-ELEC CompactFlash memory cards will help you transfer your data easily and quickly with no loss of data over time.
|
Features
 |
Complies with the "CompactFlash Association" standard specifications, version 1.4 |
|
Complies with ATA standard specifications (via PCMCIA adaptor) and I/O Card mode |
|
Compatible with True IDE mode |
|
AND or NAND type Flash memory |
|
Capacity to 8GB and more in the future |
|
Low power consumption |
Specifications
| Type Of Media | Compact Flash Card Type 1 |
| Reliability |
| MTBF (mean time between failures) | 1,000,000 hours |
| Number of insertions | 10,000 minimum |
| Data retention | 100,000 hours |
| Endurance | 1,000,000 cycles (read/write) |
| Data reliability | < 1 error/1014 bits in read mode |
| Preventive maintenance | none |
| Physical Charactaristics |
| Width/Thickness/Height | 42.8mm/ 3.3mm/ 36.4mm |
| Weight | 11.4 g max |
| Specifications |
| Capacity | 1 GB |
| Number of Sectors | 2,000,880 |
| Sectors/Track | 63 |
| Number of heads | 16 |
| Number of Cylinders | 1,985 |
| System Performance |
| Start Time: Standby/Write | 2.5 ms max. |
| Start Time: Standby/Read | 2.0 ms max. |
| Start Time: Initialization | 50 ms typical / 400 ms max |
| Data Transfer Rate: Write | from 10x to 22x
(1.5 MB/sec. to 3.15 MB/sec.) |
| Data Transfer Rate: Read | up to 43x |
| Power Supply |
| Voltage | ( dual voltage ) 3.3V±5% / 5V±10% |
| Power Consumption: Standby | <200µA / <500µA |
| Power Consumption: Reading | 20 mA max / 40 mA max |
| Power Consumption: Writing | 25 mA max / 45 mA max |
| Environment |
| ECC Operation | Yes |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | - 40 to 85 °C |
| Tolerated Humidity | 8 95 % |
| Tolerated Vibrations | 15G maximum "peak to peak" |
| Tolerated Impacts | 2KG maximum |
| | |
|
|
|
|
|
|
|
|
