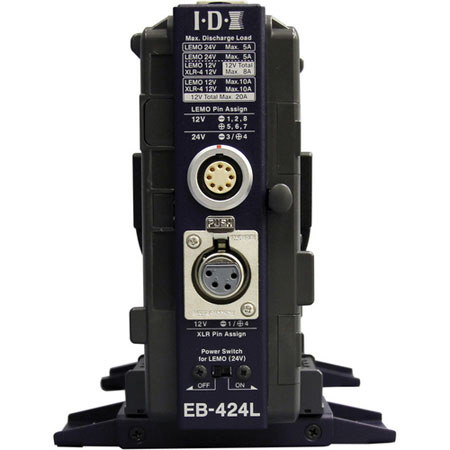

IDX EB-424L 4-Position Power Base Station, Supports up to 8 ENDURA Batteries

SKU: IDXEB424L MFR: EB-424L
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,148.00
Free Shipping
Qty:

Add to Wishlist

About the IDX EB-424L

Rugged, compact and field portable, the EB-424L is a V-Mount power base station designed for use in environments where voltage and current capacity are a challenge. High-end broadcast camera systems (such as Sony F23, Sony F35, RED ONE) have specific power requirements that can be fulfilled by the EB-424L. Power Base mode also provides a battery backup station to the camera so that no critical production material is lost or shooting is delayed. The EB-424L has two output terminals-industry standard 12V and professional 24V. Both voltages can be used either separately or simultaneously.

IDX EB-424L Includes

  • IDX EB-424L 4-Position Power Base Station
  • LEMO Connector
  • IDX 2 Years Limited Warranty

IDX EB-424L Features

  • Supports up to Eight (8) ENDURA batteries when in PowerLink or dual stack configuration-up to 744Wh with eight IDXLithium Ion ENDURA batteries
  • Features uninterrupted battery change-over during normal operation
  • Selection of 12V or 24V output voltage of the LEMO connector via a dedicated 24V output switch. Activation of power switch turns on pilot LED; 24V is output from the LEMO connector
  • Additionally, 12V output is always continuous from both the LEMO and XLR connector depending on how the cable/pin is configured (when the 24V switch is active)
  • Compact, lightweight and durable design with extendable feet for use on location, in studio and desktop surfaces
  • Maximum current of 12V is 20A (10A each output); in 24V operation, the maximum current is 5A
  • LED Indicator for 24V output includes detection of protection circuit, dual low voltage warning when below 14V and 12V

IDX EB-424L Specifications

Battery Type All IDX ENDURA Lithium Ion Batteries - Individually or in PowerLink (dual stack); Maximum 8 in PowerLink Mode
DC Input IDX ENDURA Battery-12V to 17V DC
DC Output 8-Pin LEMO connector for 12V/24V: LEMO Connector Part EGG-3B-308CLL
12V: Pin 1,2,8-Neg; Pin 5,6,7-Pos
24V: Pin 3-Negative; Pin 4-Positive
4-Pin XLR connector for 12V: XLR Connector Part ITT Cannon XLR-4-31 Pin 1-Negative; Pin 4-Positive
Output Voltage 24V output-Regulated
12V output-Unregulated
Dimensions (W x H x D) 3.2 x 6.5 x 8.5" (81 x 165 x 216mm)
Feet extended (W): 5.04" (128mm)
Weight 2.9 lbs (1.3kg)
