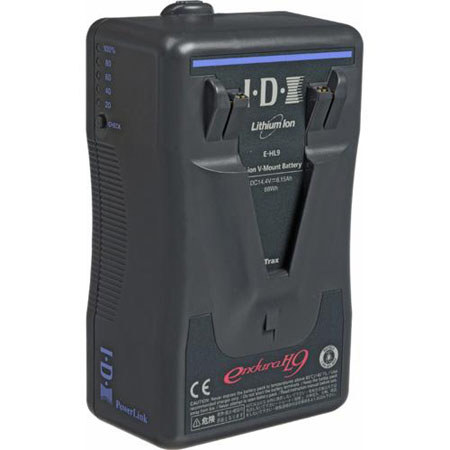

IDX E-HL9 88Wh Li-ion High Load Battery with V-Mount, PowerLink & Digi-View

IDX
SKU: IDXEHL9 MFR: EHL9
IDX E-HL9: Picture 1 thumbnail IDX E-HL9: Picture 2 thumbnail

List Price: $578.00

29% Off

Our Price

$409.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About IDX E-HL9

IDX E-HL9 Combines the best characteristics of most popular power models, the E-HL9 is designed to match the demands of power-hungry HD environments by supporting sustained high current loads. Standard IDX features such as PowerLink, Digi-View and the Battery Management System are inherent in the E-HL9 series.

IDX E-HL9 Features

  • With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology
  • High-load capacity results in 50% higher discharge rate for this series.
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environment conditions.
  • Longer overall lifecycle-operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  • PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
  • Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity, shown via the camera's viewfinder.
  • 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
  • BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
  • Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  • Most environmentally friendly and safest battery in its classification.
  • Weighing only 1.63 lbs., the E-HL9 is compact and durable, ideal for regular use and transportation to and from location.
  • Attaching E-HL9 batteries to cameras without a standard V-Mount connection is possible through the use of P-V2 and P-VS2 adaptor plates, available separately from IDX and can be fully recharged using an ENDURA sequential or simultaneous charger.

IDX E-HL9 Specifications

Battery Capacity
14.4V, 6.15Ah, 88Wh
Max. Output Voltage
16.8V DC
Nominal Voltage
14.4V DC
Maximum Discharge Current
10A (120W)
End Voltage
12V
Battery Protection
Over charge (reset)
Over discharge (reset)
Over current (reset)
Temperature protection (non reset)
Ambient Temperature
To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
To store: -4°F ~ 140°F (32°F ~ 68°F recommended)
Dimensions
3.35(W) x 5.51(H) x 2.28(D) inches
Weight
1.63 lbs. approx.
Warranty
IDX 2 years extended warranty
Mfr #
EHL9
SKU
IDXEHL9
