About IDX E-HL9S

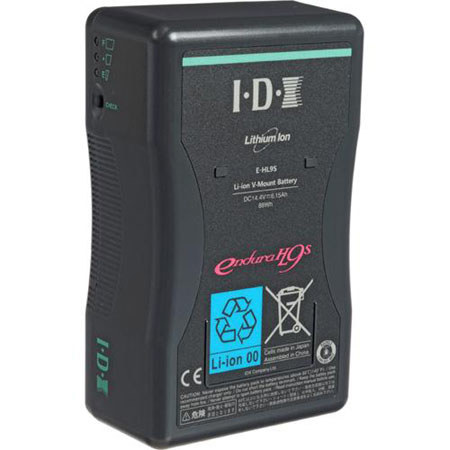

IDX E-HL9S Combines some of the best characteristics of most popular power models, the ENDURA-HL9S has been developed to match the demands of power-hungry HD environments by supporting sustained high current loads. An economical power module, it's used as a single unit in the EHL9S series and shares the same sleek, elegant design as the E-10 and E-7 series models.

IDX E-HL9S Features

  • With a continuous draw of up to 10 Amps, the E-HL9S has an impressive capacity using highly durable cell technology.
  • The high-load capacity results in 50% higher discharge rate in operating the battery.
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environmental conditions.
  • Longer overall lifecycle-operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  • 3 Power Indicator LEDs are located on the side of the E-HL9S for a quick and easy check to see if the battery is empty, full or requires charging. This can be checked at any time.
  • Battery circuit protection ensures the E-HL9S is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  • The highest grade Lithium Ion cells are used to ensure the E-HL9S is one of the most reliable batteries available.
  • Most environmentally friendly and safest battery in its classification.
  • Weighing only 1.59 lbs., the E-HL9S is compact and durable, ideal for regular use and transportation to and from location.
  • Attaching E-HL9S batteries to cameras without a standard V-Mount connection is possible through the use of P-V2 and P-VS2 adaptor plates, available separately from IDX.
  • The E-HL9S can be fully recharged quickly and safely using a sequential or simultaneous ENDURA charger.

IDX E-HL9S Specifications

Battery Capacity
14.4V, 6.15Ah, 88Wh
Max. Output Voltage
16.8V DC
Nominal Voltage
14.4V DC
Maximum Discharge Current
10A (120W)
End Voltage
12V
Battery Protection
Over charge (reset)
Over discharge (reset)
Over current (reset)
Temperature protection (non reset)
Ambient Temperature
To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
To store: -4°F ~ 140°F (32°F ~ 68°F recommended)
Dimensions
3.35(W) x 5.59(H) x 1.96(D) inches
Weight
1.59 lbs. approx.
Warranty
IDX 2 years extended warranty
