IDX Endura E-HL9S Basic Pack with VL-2PLUS Charger & E-HL9S Batteries
What's Included With This Item:
- IDX Endura One (1) VL-2PLUS Two-Channel Charger
- CA4XLR Power Cable
- Two (2) E-HL9S 88Wh Li-ion Batteries
- IDX Endura Warranty
The IDX Endura E-HL9S Basic Pack comes with E-HL9S 88Wh Li-ion V-Mount High Load Battery. It has been developed to match the demands of power-hungry HD environments by supporting sustained high current loads. An economical power module, it's used as a single unit in the EHL9Sseries and shares the same sleek, elegant design as the E-10 and E-7 series models.

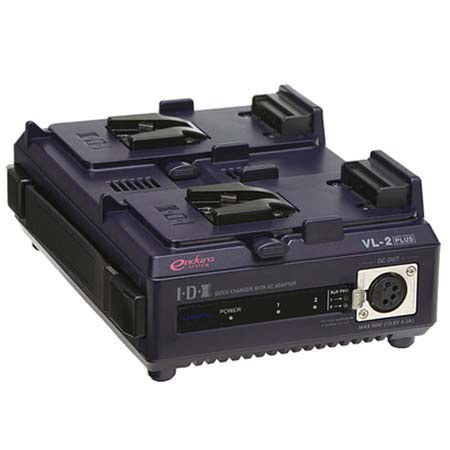

The VL-2Plus Sequential quick charger can charge lithium ion battery in approx. 2 and 1/2 hours. It can charge 2 batteries sequentially. The sequence for battery charging is called the charging sequence loop. The charging sequence loop charging starts at channel 1 then progresses through to channel 2 and then back to channel 1 again (1, 2, 1, 2,...). The charger automatically searches each channel for a battery to charge, in a continuous loop. The charging sequence loop is interrupted only by the detection of a valid battery to be charged.
|Battery Capacity||14.4V, 6.15Ah, 88Wh|
|Battery: Max. Output Voltage||16.8V DC|
|Battery: Nominal Voltage||14.4V DC|
|Battery: Maximum Discharge Current||10A (120W)|
|Battery: End Voltage||12V|
|Battery Protection||Over charge (reset)
Over discharge (reset)
Over current (reset)
Temperature protection (non reset)
|Battery: Ambient Temperature||To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
To store: -4°F ~ 140°F (32°F ~ 68°F recommended)
|Charger: Applicable batteries||ENDURA-50, 50S,80S, Lithium Ion Batteries,|
|Charger: Quick charge current||2.0A|
|Charger: DC Output||60W (4.3A @13.8V)|
|Charger: DC Output Connector||4-pin XLR (Pin 1 negative, Pin 4 positive)|
|Charger: Input voltage||100 ~ 240V AC 50/60 Hz Automatic|
|Charger: Power consumption||130 VA max.|
|Battery: Dimensions||3.35(W) x 5.59(H) x 1.96(D) inches|
|Battery: Weight||1.59 lbs. approx|
|Charger: Dimension||147 (W) x 72 (H) x 207 (D) mm
57.8(W) x 2.83(H) x81.4(D) inches
|Charger: Weight||1.6 Kg approx.
3.3 lbs approx.
|Warranty||IDX Endura warranty|
