Epson BrightLink 430i Interactive Projector with Wall Mount
Epson

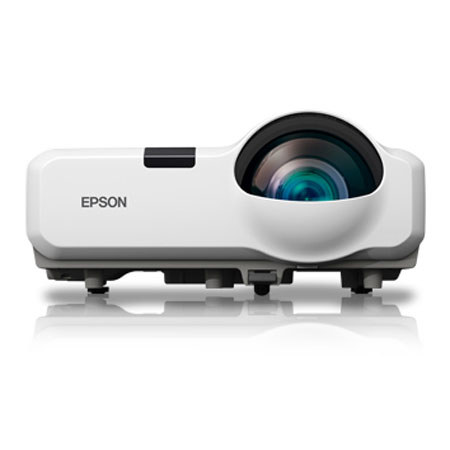

Epson BrightLink 430i Interactive Projector with Wall Mount, 3000 Lumens Color/White Light Output, 1024x768 XGA Resolution

SKU: IESBL430I MFR: V11H46952M
What's Included
What's Included With This Item:
  • Epson BrightLink 430i Interactive Projector

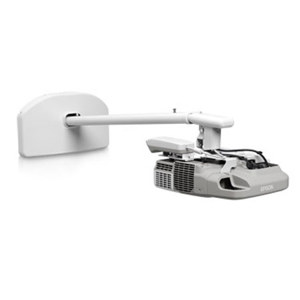

  • Projector Wall Mount
  • Interactive Module
  • 2 x Interactive Module Pens
  • 4 x AAA Rechargeable Batteries and Battery Charger
  • Pen Tray
  • Projector Remote Control
  • 2 x AA Batteries
  • Lens Cover
  • BrightLink Welcome Kit
  • User's Guide CD
  • Installation Guide
  • Easy Interactive Driver CD (Mac/Win)
  • Teamboard Draw CD (Mac/Win)
  • Network Management Software CD
  • 16.4' Power Cord
  • Epson 90 Days Lamp and 2 Years Projector Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

1,322.50
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Epson 430i

The Epson BrightLink 430i Projector with Wall Mount turns ordinary dry-erase boards or plain walls into interactive learning centers at a fraction of the traditional whiteboard systems.

Bright and ultra flexible, this feature-rich performer shines with a dazzling 3000 lumens of color/white light output, creating an interactive area up to 106". And, because it is short-throw, it is easy to create traditional 77" whiteboard-sized images from as close as 3 feet away, greatly reducing shadowing and glare.

Attach to the network to unleash the power of remote management and monitoring, as well as the ability to deliver both image and audio content over the LAN.

Add the included wall mount, interactive module pens, HDMI connectivity, built-in 16 W speaker and convenient microphone jack and it's easy to see how the BrightLink 430i short-throw interactive projector shines with unsurpassed value.

Epson 430i Includes

  • Epson BrightLink 430i Interactive Projector
  • Projector Wall Mount
  • Interactive Module
  • 2 x Interactive Module Pens
  • 4 x AAA Rechargeable Batteries and Battery Charger
  • Pen Tray
  • Projector Remote Control
  • 2 x AA Batteries
  • Lens Cover
  • BrightLink Welcome Kit
  • User's Guide CD
  • Installation Guide
  • Easy Interactive Driver CD (Mac/Win)
  • Teamboard Draw CD (Mac/Win)
  • Network Management Software CD
  • 16.4' Power Cord
  • Epson 90 Days Lamp and 2 Years Projector Limited Warranty

Epson 430i Features

  • Total interactive solution - includes short-throw projector, two interactive module pens, wall mount, cables and annotation software; fully PC and Mac compatible
  • Turn most any surface into an interactive learning center - interactive functionality in one projector + pen combination;
  • Large images, short throw distance - project XGA (1024 x 768), 4:3 images up to 106" with minimal shadowing
  • Advanced connectivity - connect devices via HDMI, wired or optional wireless LAN and more; supports PC, Mac, DVD/Blu-ray and document cameras, plus wireless iPad/iPod connectivity
  • Easy installation and setup - included convenient telescopic mount arm, horizontal and vertical keystone correction, Quick Corner and more
  • Bright, colorful images - 3000 lumens color light output, 3000 lumens white light output
  • Powerful sound and communication features - built-in 16 W speaker, microphone input and closed captioning decoder
  • Remote monitoring/control or projecting content over the network - RJ-45 LAN with included EasyMP software
  • Broadcast your message - advertise events or broadcast instructions to all networked Epson projectors
  • Energy-efficient E-TORL lamp - lasts up to 6000 hours
  • High density filter - 8x the surface area of previous filters for even more protection against dust; long filter cleaning cycle up to 5000 hours

Epson 430i Specifications

Item Includes-1 16.4' USB Cable - 15' VGA Cable - PrivateLine Support Card - Password Protection Sticker
Projection System RGB liquid crystal shutter projection system
Projection Method Front / Rear / Ceiling Mount
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 786,432 dots (1024 x 768) x 3
Color Light Output 3000 lumens
White Light Output 3000 lumens (ISO 21118 standard)
Aspect Ratio 4:3
Native Resolution 1024 x 768 (XGA)
Resize 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA / 435Wi only), 1152 x 864 (SXGA), 1280 x 800 (WXGA / 430i only), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1280 x 768 (WXGA 60-1 / 430i only), 1360 X 768 (WXGA 60-2), 1440 X 900 (WXGA+), 1400 X 1050 (SXGA+), 1600 X 1200 (UXGA)
Lamp Type 230 W UHE (E-TORL)
Lamp Life ECO mode: Up to 6000 hours
Normal mode: Up to 4000 hours
Size (projected distance) 63" - 106"
Keystone Correction Manual:
Vertical: ±15 degrees
Horizontal: ±15 degrees
Contrast Ratio Up to 3000:1
Color Reproduction 16.77 million colors
Projection Lens Type No optical zoom / Manual focus
F-number 180
Focal Length 6.48 mm
Throw Ratio Range 0.54 - 0.74
Zoom Ratio Digital zoom 1.0 - 1.35
Display Performance NTSC: 480 lines
PAL: 576 lines
Input Signal NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60/ SECAM
Interfaces Computer / component video: D-sub 15 pin x 2
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (L and R), Mini stereo x 2
USB connector: Type B x 1 (USB display, audio and mouse control)
USB connector: Type A x 1 (USB memory/document camera)
HDMI x 1
RJ-45 x 1
Serial: RS-232c x 1
Monitor out: D-sub 15pin x 1
Audio out: Mini stereo x 1
Microphone: Mini stereo x 1
Wireless LAN port: 802.11 b/g/n
Speaker 16 W mono
Operating Temperature 41deg. to 95deg. F (5deg. to 35deg. C)
Power Supply Voltage 100 - 240 V ±10%, 50/60 Hz AC
Power Consumption ECO mode: 241 W
Normal mode: 332 W
Communication on: 6.80 W standby
Communication off: 0.28 W standby
Fan Noise ECO mode: 29 dB
Normal mode: 37 dB
Security Kensington security lock port, padlock and security cable hole, password protect function
Interactive Technology Infrared; 940 nm
Interactive Area WXGA: 63 - 106"
XGA: 60 - 100"
Widescreen: 58- 97
Interactive Modes Computer interactivity:
Interactive mode
Whiteboard mode
Computer-Free Interactivity:
No
Calibration Method Manual
Interactive Connectivity USB Type A/B
Rated Voltage 5 V
Rated Current 180 mA
System Compatibility Microsoft Windows - Epson Easy Interactive Driver for Windows, Windows XP SP2, Windows XP SP3 (Home Edition/Professional), Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 7, Windows 7 SP1 (All editions except for Starter)
Macintosh - Easy Interactive Driver for MAC, Mac OS X 10.3.9, Mac OS X 10.4.x, Mac OS X 10.5.x, Mac OS X 10.6.x, Mac OS X 10.7.x
Interactive Software Requirements-1 Easy Interactive Driver:
Windows 2000 SP4, Windows XP SP2 (Home Edition / Professional), Windows Vista (All editions except for Starter), Windows 7 (32-bit or 64-bit), Mac OS X 10.3.x, 10.4.x, 10.5.x, 10.6.x, 10.7.x
Easy Interactive Tools:
Windows 2000 SP4, Windows XP SP2 (Home Edition / Professional), Windows Vista (All editions except for Starter), Windows 7 (32-bit or 64-bit), Mac OS X 10.4.x, 10.5.x, 10.6.x, 10.7.x
Interactive Software Requirements-2 Teamboard Draw Software:
Windows XP SP3 (32-bit), Windows Vista (32- or 64-bit), Windows 7 (32- or 64-bit), Quicktime player and Flash player installed; Macintosh: Intel Mac OS X 10.5x or later
RM Easiteach Next Generation (optional):
Windows XP SP3 (32-bit), Windows Vista (32- or 64-bit), Windows 7 (32- or 64-bit); Intel Macintosh 10.5 or later
Type of Interactive Input Device Digital pen (two included)
Multiple Pen Support No
Interactive Pen Functions Mouse functions (left and right click), Electronic pen, LED battery status indicator
Interactive Pen Power AAA batteries, rechargeable
Compatible Pen Battery Types SANYO eneloop(HR-3UTG / HR-3UTGA)3, Manganese dry cell, alkaline dry cell,
Remote Control Operating Angle Right / Left: ±30 degrees
Upper / Lower: 10 to 70 degrees
Remote Control Operating Distance 19.7' (6 m)
Interactive Pen Dimensions (L x W) 6.5 x 0.87" / 16.51 x 2.20cm
Dimensions (W x D x H) Including feet: 13.6 x 11.7 x 6.2" / 34.54 x 29.71 x 15.74 cm
Excluding feet: 13.6 x 10.9 x 4.1" / 34.54 x 27.68 x 10.41cm
Weight 8.7 lb / 3.94kg
Interactive Pen: 1.2 oz / 34.01g
