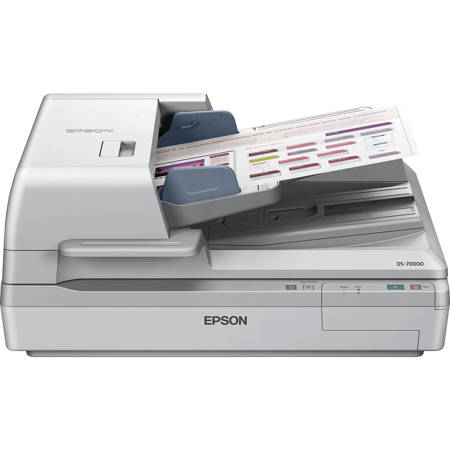

Epson WorkForce DS-70000 Document Scanner, 600 dpi Resolution, 11.7x17" Flatbed Document Size, Hi-Speed USB 2.0

SKU: IESDS7000 MFR: B11B204321
Epson DS-70000: Picture 1 thumbnail Epson DS-70000: Picture 2 thumbnail Epson DS-70000: Picture 3 thumbnail Epson DS-70000: Picture 4 thumbnail

About Epson DS-70000

The Epson WorkForce DS-70000 Document Scanner delivers surprising speeds, racing through 2-sided documents in just one pass, scanning everything from 2.7" x 4.7" up to 11.7" x 100". Use the 200-sheet Automatic Document Feeder (ADF) to quickly scan stacks of one- or 2-sided, large-size documents. Or, use the 11.7" x 17" flatbed to scan drawings or maps, hard-bound books or other odd-sized items. The WorkForce DS-70000 blazes through each task at speeds up to 70 ppm /140 ipm1. And, it consistently delivers vivid colors and crisp, sharp text thanks to its 4 line CCD sensor (RGB and black). It even makes it easy to dropout selected colors or chooses a color and converts it to black. With this versatile performer, you get high-volume, precision document imaging. Plus, with productivity software included and the optional networking module, each member of your team can access high performance scanning for critical project needs.

Epson DS-70000 Features

  • Capture large, 2-sided documents in a single scan - scan documents as large as 11.7" x 100" down to 2.7" x 4.7" through the ADF or 11.7" x 17" on the scanner bed
  • Remarkable results - 4 line CCD sensor (RGB and black) provides crisp, sharp text
  • Ultra-fast speeds - one-pass duplex at speeds of 70 ppm /140 ipm
  • Work smarter and more efficiently - built-in 200-sheet Automatic Document Feeder, plus auto duplex scanning
  • Ultrasonic double-feed detector - automatically stops the scanning process if two pages feed together; just separate the pages and continue
  • Convenient, network scanning capabilities - use the optional networking module and included Document Capture Pro software to scan to any PC on the local network
  • Scan directly to popular cloud services - scan to SharePoint, Evernote, Google Docs and more
  • Scan to a searchable PDF - save scanned documents as PDF files
  • Do more with powerful productivity software - includes EPSON Scan, Document Capture Pro (Windows only) and ABBYY FineReader Sprint OCR
  • One-touch scanning - create up to 30 user-programmable jobs

Epson DS-70000 Specifications

Scanner Type
Flatbed color image scanner
Optical Sensor
600 dpi color CCD 4 line sensor (RGB & Black)
Optical Resolution
600 dpi
Color Bit Depth
Input: 16 bit / pixel / color
Output: 8 bit / pixel / color
Maximum Scan Area
Flatbed 11.7" x 17"
ADF 11.7" x 100"
Light Source
ReadyScan LED
Scanning Speed
200 dpi
B/W: Up to 70 ppm / 140 ipm with ADF
Color: Up to 70 ppm / 140 ipm with ADF
300 dpi
B/W: Up to 50 ppm / 100 ipm with ADF
Color: Up to 50ppm / 100 ipm with ADF
600 dpi
B/W: Up to 25 ppm / 50 ipm with ADF
Color: Up to 12ppm / 24 ipm with ADF
Document Feeder Type
Sheet fed 1-pass duplex scanning
Hinge: Free stop, 15 mm max lift
Paper Supply: Face up load, face down eject
200 pages (75 g/m2)
Document Sizes
A4, Letter, Legal, B5, A5; Max. Size 11.7" x 100" (ADF), 11.7" x 17" flatbed; Min. Size 2.7" x 4.7"" (ADF)
Paper Weight
35 g/m2 - 128 g/m2 less than 4" x 6": 60 g/m2 - 190 g/m2
Scanner Interface
Hi-Speed 2.0
System Requirements
Windows 8
Windows 7
Windows Vista
Windows XP
Windows XP Professional x64 Edition
Mac OS X 10.5.x, 10.6.x, 10.7.x, 10.8.x
Main Unit MCBF
300000 cycles
600000 cycles
Daily Duty Cycle
8000 pages per day
Operating Temperature
5 deg.C to 35 deg.C
Storage Temperature
-25 deg.C to 60 deg.C
Operating Humidity
10% - 80% without condensation
Storage Humidity
10% - 85% without condensation
Power Requirements
Voltage: AC 100 V -120 V or AC 220 V, 220 V-240 V
Frequency: 50 - 60 Hz
Power consumption
Operating: 79 W
Standby: 12.5 W
Sleep: 1.5 W
Dimensions (W x D x H)
25.2 x 18.5 x 11.3" (64 x 47 x 28.7cm)
59.2lbs (26.85 kg)
Mfr #
