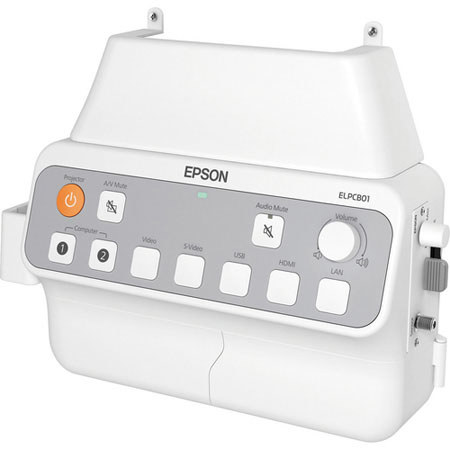

Epson ELPCB01 PowerLite Pilot Connection and Control Box

Epson ELPCB01: Picture 1 thumbnail Epson ELPCB01: Picture 2 thumbnail Epson ELPCB01: Picture 3 thumbnail Epson ELPCB01: Picture 4 thumbnail Epson ELPCB01: Picture 5 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Epson ELPCB01

Simplify cable management and control of your Epson short-throw or ultra-short-throw classroom projector with the Epson ELPCB01 PowerLite Pilot (ELPCB01), a convenient connection and control box. PowerLite Pilot easily installs on any wall and makes it easier than ever to connect to and operate your audio and video sources, computer, iPod and more. The optional speakers and wireless microphone offer expanded audio performance, helping you to enhance any learning environment. PowerLite Pilot is the perfect solution to manage your classroom multimedia devices.

Epson ELPCB01 Features

  • Wall Mounted Projector Control Box: Manage your Epson short-throw or ultra-short-throw projector (power, AV mute, volume, sources) via RS-232; no remote control needed
  • Comprehensive Input/Output Connections: HDMI, AUX audio, USB Type A, USB Type B, Audio inputs, 2 VGA inputs, Audio outputs, Rec out, S-video, composite, RS-232
  • Use as an Extension Box: Expand the range of your cables for added flexibility
  • Simplified Cable Management: Convenient wall placement helps avoid potential hazards
  • Easy Operation: Large, individual source buttons that match the Epson projector inputs
  • Easy Installation: Easily attach to the wall using four screws (screws not included)
  • Audio Solution Available: Optional speakers and wireless pendant microphone, to help amplify sound and ensure the entire class can hear the lessons
  • Play Music from Your Device: Connects to iPods, iPhones and other portable audio devices
  • Sleek, Clean Design: Protective cable cover included
  • Convenient Storage: Included iPod/pen holder

Epson ELPCB01 Specifications

Input video: VGA x 2, composite video x 1, S-video x 1, HDMI x 1, USB-A x 1, USB-B x 1
Input audio: stereo mini jack (3.5 mm) x 4, RCA connector (L/R) x 1
Output video: VGA x 2, composite video x 1, S-video x 1, HDMI x 1, USB-A x 1, USB-B x 1
Output audio: stereo mini jack (3.5 mm) x 1, RCA connector (L/R) x 1
Control: RS-232C (9-pin) x 1
Projector control: Power on/off, source selection (computer 1/computer 2/video/s-video/USB(A/B)/HDMI/LAN), A/V Mute
Audio Control: Audio mute, volume adjustments
Operating Temperature
41-95Deg.F (5-35Deg.C)
20-80% RH
Power Supply
100-240 V AC/DC
Power Frequency
Power Consumption
Less than 8W
Standby mode: Less than 0.5W
Output Voltage
DC 12 V
11.2 x 3.9 x 6.8" (284.5 x 99.1 x 172.7 mm)
3.7 lbs (1.7 kg)
