| Projection |
Projection System: High-aperture EPSON 3LCD, 3-chip technology
Projection Method: Front / ceiling mount, table
Driving Method: EPSON Poly-silicon TFT Active Matrix
Pixel Number: 786,432 x 3LCDs
Color Brightness (Color Light Output): 4500 lumens
White Brightness (White Light Output): 4500 lumens
Aspect Ratio: Native 4:3
Native Resolution: 1024 x 768 (XGA)
Brightness Uniformity: Typical: 89%
Pixel Arrangement: Cross stripe |
| Lamp Type |
245 W UHE |
| Lamp Life |
ECO Mode: Up to 4000 hours
Normal Mode: Up to 2500 hours |
| Throw Ratio Range |
1.38 - 2.24 |
| Size (projected distance) |
30" - 300" |
| Keystone Correction |
Horizontal: ±30 degrees
Vertical: ±30 degrees |
| Contrast Ratio |
Normal, Dynamic Mode: Up to 3000:1 |
| Color Reproduction |
16.77 million colors |
| Projection Lens |
Type: Manual zoom / focus
F-number: 1.51 - 1.99
Focal Length: 18.2 mm 29.2 mm
Zoom Ratio: Optical zoom 1.0 - 1.6 |
| Video Standards |
Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
HDMI: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p |
| Video Processing |
3D Y/C separation, 3D noise reduction, mosquito noise reduction
DCDi Directional Correlational Deinterlacing Motion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
Closed captioning |
| Network Connection |
Wired: Integrated 10/100 Mbps
Wireless: 802.11b/g/n |
| Network Control |
EasyMP Monitor
AMX Duet and Device Discovery
Crestron Integrated Partner and RoomView
PJLink |

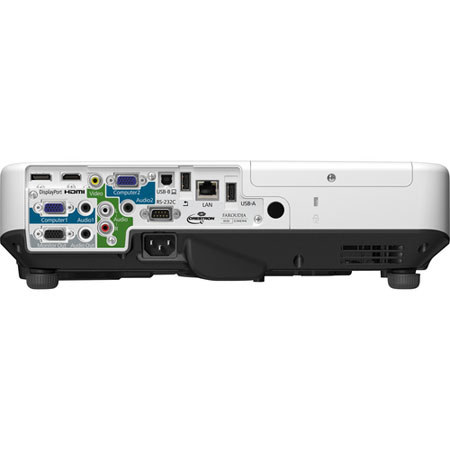

| Interface |
DisplayPort
HDMI
Computer: D-sub 15 pin x 2
Video: RCA
Wired Network: RJ-45
Wireless Network: WLAN
Serial: RS-232c
Monitor-Out: D-sub 15 pin
USB (Type A1): For document camera
USB (Type A2): For PC-free
USB (Type B): For computer |
| Speaker |
10 W monaural |
| Operating Temperature |
41° to 95° F (5° to 35° C) |
| Power Supply Voltage |
100 - 240 V ±10%, 50/60 Hz AC |
| Power Consumption |
Normal mode: 353 W
Network on: 3.8 W standby
Network off: 0.5 W standby |
| Fan Noise |
ECO mode: 29 dB
Normal mode: 37 dB |
| Security |
Kensington-style lock provision
Anchor (metal) bar for security lock or cable |
| Remote Control |
Features: Color mode, brightness, contrast, tint, color saturation, sharpness, input signal, sync, source search, Split Screen
Operating Angle: Front Upper / Lower: 0 to +16 degrees
Operating Distance: 39" 138" |
| Dimensions WxDxH |
14.8 x 10.7 x 3.6" / 37.6 x 27.2 x 9.1cm |
| Weight |
8.5 lbs / 3.9kg |
