| Projection System |
High-aperture Epson 3-chip 3LCD technology |
| Projection Method |
Front / rear / ceiling mount |
| Driving Method |
Epson Poly-silicon TFT Active Matrix |
| Pixel Number |
786,432 pixel (1024 x 768) x 3 LCDs |
| White Light Output |
5200 lumens (ISO 21118 Standard) |
| Color Light Output |
5200 lumens |
| Aspect Ratio |
Supports 4:3, 16:9, 16:10 |
| Native Resolution |
1024 x 768 (XGA) |
| Lamp Type |
330 W UHE |
| Lamp Life |
Normal mode: Up to 2000 hours
ECO mode: Up to 3000 hours |
| Brightness Uniformity |
89% |
| Pixel Arrangement |
Cross stripe |
| Effective Scanning Frequency Range |
Pixel Clock:
13.5 MHz - 162 MHz (up to UXGA 60 Hz)
Horizontal:
15 KHz - 92 KHz
Vertical: 50 Hz - 85 Hz |
| Throw Ratio Range |
1.3 - 2.36 |
| Size (projected distance) |
30" - 300" |
| Keystone Correction |
Horizontal: ±20 degrees
Vertical: ±40 degrees |
| Contrast Ratio |
High Brightness, Dynamic Mode: Up to 1000:1 |
| Color Reproduction |
16.7 million colors |
| Projection Lens Type |
Manual focus / Zoom |
| F-number |
1.65 - 2.55 (standard lens) |
| Focal Length |
21.28 mm - 37.94 mm |
| Zoom Ratio |
Optical zoom 1.0 - 1.8 |
| Lens Shift |
Horizontal: ±10 degrees
Vertical: ±50 degrees |
| Display Performance |
NTSC: 560 line
PAL: 560 line
(depends on observation of the multi-burst pattern) |
| Input Signal |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y/C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 - 2, 3 - 2 film detection) |

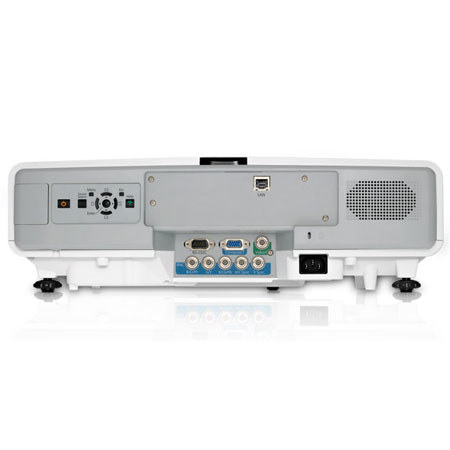

| Interfaces |
Computer: mini D-sub HD 15 pin x 2
Composite video BNC x 1
Video: 5-BNC x 1
Network: RJ-45 x 1 100Mbps
Serial: RS-232c x 1 |
| Operating Temperature |
32deg. to 104deg. F (0deg. to 40deg. C) |
| Power Supply Voltage |
100 - 240 V ±10%, 50/60 Hz AC |
| Power Consumption |
Normal mode: 464 W
ECO mode: 383 W
Communication on: 11 W standby
Communication off: 0.47 W standby |
| Fan Noise |
Normal mode: 38 dB
ECO mode: 32 dB |
| Security |
Kensington lock provision
Security Cable Hole, Lens Lock |
| Remote Control Operating Angle |
Right / Left: Front: ±60 degrees; Rear: ±30 degrees
Upper / Lower: Front: ±20 degrees; Rear: +10 to +45 degrees |
| Remote Control Operating Distance |
40' (12.19 m) |
| Dimensions (W x D x H) |
Including feet: (With standard lens) 18.50 x 12.26 x 5.96" /46.99 x 31.14 x 15.13 cm
Excluding feet and lens: 18.5 x 12.26 x 5.31" /46.99 x 31.14 x 13.48 cm |
| Weight |
15 lb /6.80 kg |
