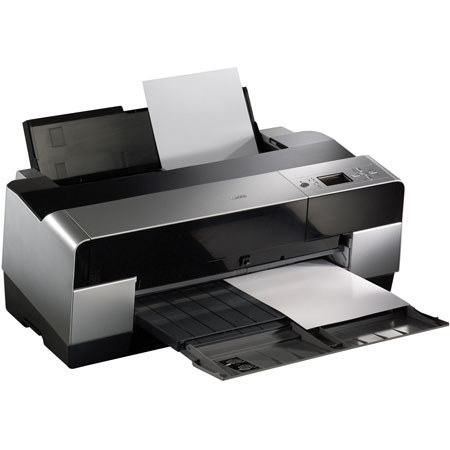

Epson Stylus Pro 3800, 17" Wide Format Color Inkjet Printer, 8 Color, with USB & 10/100Base-T Ethernet Port
Mfr. Part: C635011UCM SKU: IESS3800

enlarge image
$1295.00 Before $105.05 Savings
|
> $200.00 Mfr Rebate from Dec 1, 2008 - Jan 31, 2009 ** Download **
|
 |
|
 |
 |
Item Includes
Epson Stylus Pro 3800 Printer, ESC/P2® Raster Photographic Drivers, Instructions.
|
Description
The world's greatest images are printed on an Epson.
Designed from the beginning to exceed all expectations in the area of photographic image quality, the Epson Stylus®Pro 3800 incorporates an all-new, compact, 17-inch wide printer design, along with a radical new 17-inch wide printer design, along with a radical new photographic screening technology. And,when it is combined with our breakthrough Epson UltraChrome K3 Ink, it will deliver your creative vision without compromise.
Epson UltraChrome K3 Ink technology has produced some of the world's greatest images. Inspired by our past generations of pigmented ink, Epson UltraChrome K3 incorporates a three-level Black, along with new color pigments that raise the bar dramatically for professional color and black-and-white prints. The standardhas been set.
Even more remarkable, our latest high performance, one-inch wide print head now incorporates a new Auto-sharing Black Ink technology, allowing both Photo and Matte Black ink to be installed simultaneously.
Capable of handling virtually any type of cut-sheet media up to 17 inches wide, the Epson Stylus Pro 3800 incorporates a high-capacity paper feeder that accommodates sizes ranging from 4 x 6 up to 17 x 22. We've developed four different ways to load media, including a front-loading, straight-through path capable of handling media up to 1.5 mm thick and even a second, top-loading, single-sheet feeder optimized for fine art paper.
Imagine producing archival prints with amazing color fidelity, gloss-level and scratch resistance, while providing consistently stable colors that significantly outperform lesser ink technologies. Imagine producing professionalneutral and toned black-and-white prints with higher density levels and virtually no metamerism or bronzing.
The extreme precision of an Epson Stylus Pro print engine, along with the extraordinary performance of Epson UltraChrome K3 Ink technology, results in your image being masterfully printed, without any signs of how it was produced. Prepare to be inspired all over again.
|
Features
 |
The Future of Print Head Technology |
 |
8-channel print head with Auto-sharing Black Ink technology |
 |
Innovative, new print head design allows for all nine inks to be installed simultaneously |
 |
Without any user intervention, the printer automatically switches between Photo and Matte Black ink while utilizing the same physical ink channel |
 |
New, ultramodern photographic screening technology |
 |
Highly precise screening technology uses a radical new algorithm for determiningdot placement, resulting in an extreme level of photographic image quality |
 |
Produces extremely fine, photographic prints, even in bi-directional and lower resolution print modes |
 |
Compensates for various ink densities between resolutions - allowing for a single ICC profile to be used per media type |
 |
Advanced MicroPiezo AMC print head technology |
 |
One-inch wide, high performance print head offers a maximum resolution of 2880 x1440 dpi |
 |
Produces variable-sized droplets as small as 3.5 picoliters to greatly decrease print times, while optimizing photographic quality |
 |
Proprietary Active Meniscus Control (AMC) technology precisely controls the curvature of every ink droplet within each nozzle before releasing it onto the media |
 |
Extremely sharp and accurate placement of ink droplets consistently delivers outstanding photographic print quality from sheet to sheet |
 |
Automatic print head alignment and cleaning technology |
 |
Built-in sensor reads printed data for highly precise alignment of all color channels |
 |
Built-in sensor analyzes a printed nozzle check pattern and automatically cleansthe print head if any problems are found - even partially clogged nozzles |
 |
Epson PreciseColor Technology |
 |
In order to ensure consistent printing between multiple Epson Stylus Pro printers of the same model, Epson has enhanced the production process to includecolorimetric calibration. |
 |
This system evaluates and adjusts each printer at the manufacturing stage, assuring you'll get consistent color output from printer to printer. |
 |
Epson UltraChrome K3 Ink Technology |
 |
Advanced 8-color pigment-based ink system |
 |
Unique, high-density pigments for an extremely wide color gamut |
 |
Professional print permanence ratings for truly sellable quality prints |
 |
Microcrystal Encapsulation Technology for reduced gloss differential |
 |
Superior scratch resistance from improved pigment and resin chemistry |
 |
Stable color immediately after printing no short-term color shifting |
 |
Black density up to 2.3 with an L* value as low as 4.1 |
 |
Three-level Black ink technology |
 |
Simultaneously uses Black, Light Black, and Light Light Black ink |
 |
Significantly improves the gray balance while eliminating color casts |
 |
Delivers impressive midtones and highlights for a smoother tonal range |
 |
Virtually eliminates the metamerism and bronzing of basic pigment chemistry |
 |
Enhances the ICC profiling process for ColorSync and ICM workflows |
 |
Advanced Black-and-white printing technology |
 |
Two Auto-sharing Black Ink modes |
 |
New, high-precision print engine technology |
 |
Exclusive 17-inch wide printer design |
 |
All-new print engine technology that takes full advantage of the latest in precision mechanical design, resulting in a significant reduction in overall printer size and weight |
 |
Incredibly quiet operation, perfectly suited for even home use |
 |
Large, 2.5-inch, backlit LCD control panel for easy, direct printer control and operational status monitoring |
 |
Professional media handling |
 |
Prints on virtually any type of cut-sheet media from 4 x 6 up to 17 x 22 |
 |
Top-loading, high-capacity paper feeder handles up to 120 sheets of plain, letter-sized paper or up to 20 sheets of photographic media |
 |
Second, top-loading, manual sheet feeder accommodates thick fine art paper up to17 inches wide |
 |
Front-loading, straight-through, manual sheet feeder handles media up to 16 inches wide, up to 1.5 mm thick posterboard |
 |
Supports manual printing on both sides of specialty media |
 |
Prints on select BorderFree®, cut-sheet media from 4 x 6 up to 17 x 22 |
 |
High Performance Print Engine Speed |
 |
Epson intelligent, high-capacity ink system |
 |
Superior connectivity |
 |
Standard ports include one 10/100Base-T Ethernet and one Hi-Speed USB 2.0 (1.1 compatible) |
 |
Standard Professional Epson Photographic Drivers for Macintosh and Windows |
 |
Optional PANTONE licensed and SWOP® certified PostScript Language Level 3 Compatible RIP by ColorBurst® (included only with Professional Edition bundle) |
 |
Fully supported by most leading, third-party RIPs and workflows - Epson Stylus Pro series printers are used within the most demanding professional photography and graphic design environments |
 |
Epson PrintJob information system |
 |
World Class Service and Support |
 |
Free one-year of coverage under the Epson PreferredSM Protection Plan with toll-free telephone support available Monday through Friday and usually next-business-day, full unit exchange service |
 |
Optional one or two-year Epson Preferred Plus Service plans available |
Specifications
| Printing Method | Advanced MicroPiezo AMC print head technology 8-channel, drop-on-demand, ink jet print head 9-color (C, Lc, M, Lm, Y, Lk, LLk + PK or MK) Auto head alignment and cleaning technology Pigment-based Epson UltraChrome K3 Ink technology |
| Nozzle Configuration | Color and Monochrome heads 180 nozzles x 8 |
| Black Ink Mode Configuration | Auto-sharing Black Ink Technology Fully automatic switching between Black ink modes Black ink conversion times: Matte to Photo Black 2:55 min:sec Photo to Matte Black 1:55 min:sec Ink used during conversion; Matte to Photo Black Approx. 4.5 ml Photo to Matte Black Approx. 1.5 ml Actual quantity used in switch may vary with temperature and other factors. |
| Droplet Technology | Smallest droplet size: 3.5 picoliters Variable Droplet Technology can produce up to three different droplet sizes per print line |
| Resolution | 2880 x 1440 dpi; 1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi; 360 x 360 dpi; 360 x 180 dpi |
| Print Engine Speed | 8" x 10" prints from 2:03 to 7:47 - normal is 4:08 11" x 14" prints from 3:18 to 12:15 - normal is 6:39 16" x 20" prints from 5:32 to 19:40 - normal is 10:59 |
| Acoustic Noise Level | Approximately 47 dB(A) according to ISO 7779 |
| Printer Language / Drivers | Epson ESC/P2 raster photographic drivers standard Optional PANTONE licensed and SWOP certified PostScript Language Level 3 compatible RIP by ColorBurst (included only with Professional Edition bundle) Supported by most leading, third-party RIPs and workflows |
| Operating Systems Supported | Macintosh OS X 10.4.7 or higher (universal binary) Windows 2000 or XP (64-bit also supported) |
| Printer Interfaces | Includes as standard one Hi-Speed USB 2.0 (1.1 compatible) and one 10/100Base-T Ethernet port |
| BorderFree Printing | Complete borderless printing on the following cut-sheet sizes 4" x 6", 5" x 7", 8" x 10", 11" x 14", 16" x 20", 17" x 22" |
| Printable Area | Maximum paper width: 17" Maximum cut-sheet size: 17" x 22" Minimum cut-sheet size: 4" x 6" Left and right margins: 0 or 3 mm each (0.24" total) Top and bottom margins: 0 or 3 mm or 15 mm each Maximum printable width: 17.16" (full bleed, 17" width) |
| Media Handling | Main top-loading feeder: Up to 17" x 22"; up to 120 sheets plain paper; 20 photopaper Second top-loading feeder: Up to 17" x 22"; single sheet manual feeder, optimized for fine art paper Front manual feeder: Up to 16" x 20" straight-through, single sheet manual feeder up to 1.5 mm |
| Thickness, Weight | Weight: 12 lb bond, up to 1.5 mm cardboard |
| Line Accuracy | + or - 0.2° of specified page length |
| Epson Intelligent Ink Cartridge | Pressurized cartridge fill volume: 80 ml (fill vol.) each color x 9 colors total Ink cartridge shelf life: 2 years from printed production date or 6 months afteropened On-cartridge I.C. chip automatically tracks several ink usage data points for use in production cost estimations and reporting |
| Ink Shelf Life | 2 years from printed production date or 6 months after opened On-cartridge I.C. chip automatically tracks several ink usage data points for use in production cost estimations and reporting |
| Lightfastness Ratings | Epson UltraChrome K3 Ink Color: Up to 108 years Black-and-white: Over 200 years* |
| Temperature | Operating: 50° to 95°F (10° to 35°C) Storage: -4° to 104°F (-20° to 40 °C) |
| Humidity | Relative humidity: 20 to 80% Operating: 40 to 50° Recommended Storage :5 to 85% (no condensation) |
| Safety Approvals | Safety standards: UL1950, CSA 22.2 950 FDA EMI: FCC Part 15 subpart B class B, CSA C108.8 class B, AS/NZS 3548 class B |
| Rated Voltage/Frequency/Current | AC 110 - 120V 50 - 60 Hz 0.6A/110V - 120V |
| Power Consumption | Operating: Approx. 25W Standby: Less than 5W Power Off: Less than .3W Fully ENERGY STAR compliant |
| Note | Epson One-year limited warranty in the U.S. and Canada |
| Physical Dimensions | 27"x 15" x 10" (W x D x H) Printer weight: 43.2 lb |
| | |
|
 |
|
|
|
|
 |
 |
 |
 |
|
 |
 |
 |
|
