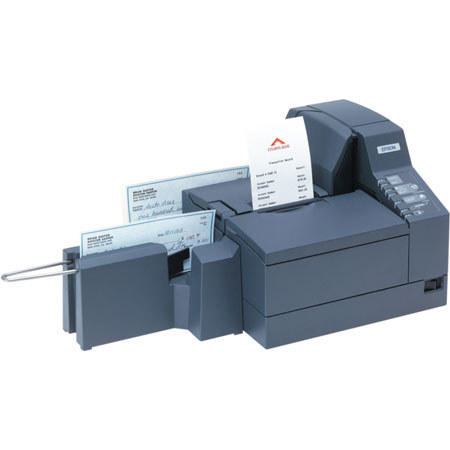

Epson TM-J9000 Check Scanner with Inkjet Printer, 300mm/sec Scan Speed, 200dpi Resolution, USB 2.0, 30 checks/min Continuous Mode
Your card will only be charged once item ships.
The Epson TM-J9000 Check Scanner with Inkjet Printer is packed with the features you need for fast, reliable check capture at the teller station. Epson's unique TransScan technology captures a two-sided image of a check in seconds. Its time-saving auto feeder scans up to 25 checks at a time. You can scan up to 30 checks per minute in continuous scanning mode and up to 15 checks per minute in one-by-one mode. And there's no risk of double check feeding with patented check sensor.
In addition to digital check imaging, the TM-J9000 features ProofPlus, the first ID card scanner integrated directly into the device. This lets you capture a complete image of a customer's ID card at the teller window, bringing greater protection against losses due to bad checks and helping you comply with the USA Patriot Act. It is packed with the features you need most at the teller station from quiet, high-speed printing of receipts and forms and drop-in validation to high-resolution one- and two-color printing of logos and marketing messages - all in a small, compact 8.8" x 9.1" footprint.
With a proven MICR accuracy of over 99.8% and ink cartridges that last up to 20 million characters, you can be assured that Epson's TM-J9000 scanner has the reliability and quality you need for busy teller lines.
|Scanner Type||TransScan: CIS (Contact Image Sensor)
ProofPlus: CIS (Contact Image Sensor)
|Scanner Media||TransScan: Personal- and business-size checks
ProofPlus: ISO/IEC7810 card
|Scanner Resolution||TransScan: 200 dpi
ProofPlus: 200 dpi
|Scanner Mode||TransScan: Black and white, 256 shade grayscale
ProofPlus: 256 shade grayscale
One-by-one mode: 8-15 checks/min
Continuous mode: 30 checks/min
|Scanner Data compression||TransScan: CCITT Group 4, JPEG
|Scanner Data transmission format||TransScan: TIFF, JPEG, Windows Bitmap, Raw
ProofPlus: TIFF, JPEG, Windows Bitmap, Raw
|Scanner Memory||TransScan: 4 MB DRAM
ProofPlus: 4 MB DRAM
|Printer Interface||USB, Dealer option: RS-232, Bi-directional parallel, Ethernet and Connect-It family|
|Printer Data buffer||4 KB|
|Printer speed||Character: 14.3 lps (8 lines/inch)/graphic: 43mm/sec. (76mm width paper, full columns print)|
|Printer Paper thickness||Receipt: 0.06 - 0.09mm
Endorsement/Validation: 0.09 - 0.14mm
|Printer Ink cartridge||SJIC8|
|Printer Ink yield||Up to 20,000,000 characters (mono)|
|Printer Power||24 VDC±10%|
|Printer Power consumption||1 A (operating)|
|Printer Reliability||MTBF: 180,000 hours
MICR reliability: 1 million reads
|Printer Environmental standards||WEEE, RoHS compliant|
|Printer EMC standards||VCCI Class A, FCC Class A, CE marking EN55022 Class A/N55024, Canada EMI, AS/NAS 3548 (CISPR22) Class A|
|Printer Safety standards||UL, CSA, T'V (EN60950)|
|Printer method||Serial inkjet, 64 nozzles|
|Printer resolution||180x180 dpi|
|Printer font||Font: Font A=12 x 24 dot/Font B=9 x 17 dot
Column capacity: Font A=40 cols/Font B=53 cols (roll receipt), Font A=62 cols/Font B=82 cols (validation station)
Special mode: Font A=43 cols/Font B=60 cols (roll receipt), Font A=67 cols/Font B=93 cols (validation station)
|Printer Character size||1.41(W) x 3.38(H)/0.99(W) x 2.4(H)mm|
|Printer Character set||95 Alphanumeric, 37 International, 128 x 11 Graphic|
|Printer Bar code||UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), 2 of 5 (ITF), Code39, Code93, Code128, CODABAR (NW7)|
|Printer Characters per inch||15 cpi (Font A)/20 cpi (Font B)|
|Scan Area||TransScan: 100x230mm / 3.94x9.06"
ProofPlus Scanner: 86x5mm / 3.38x0.19"
|Dimensions||Overall: 225x180x232mm / 8.85x7.08x9.13" (without feeder pocket)
390x180x232mm / 15.35x7.08x9.13"(with feeder pocket)
|Weight||4 kg / 8.81 lbs
With feeder pocket: 4.5 kg/9.92 lbs
