Epson

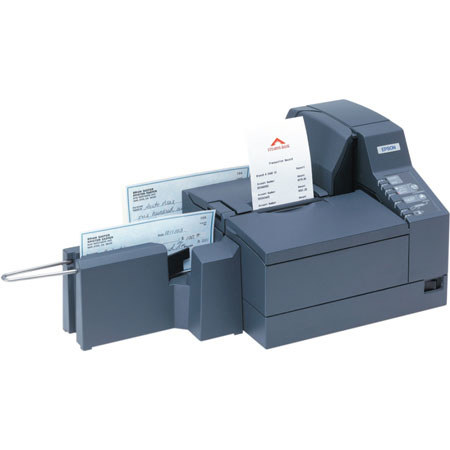

Epson TM-J9100 Contact Image Sensor Scanner with Inkjet Printer, 200 dpi Resolution, 120mm/sec Scan speed, USB 2.0 Compliant

SKU: IESTMJ910 MFR: C31C562121
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$909.00 $36 per week
Free Shipping
Qty:
Add to Wishlist

About the Epson TM-J9100

The Epson TM-J9100 Contact Image Sensor Scanner with Inkjet Printer is packed with the features you need most at the teller station from quiet, high-speed printing of receipts and forms and drop-in validation to high-resolution one- and two-color printing of logos and marketing messages - all in a small, compact 8.8" x 9.1" footprint.

Its TransScan technology captures a two-sided image of a check in seconds. Its time-saving auto feeder scans up to 25 checks at a time. You can scan up to 30 checks per minute in continuous scanning mode and up to 15 checks per minute in oneby-one mode. And there's no risk of double check feeding with the patented check sensor.

In addition to digital check imaging, it also feature ProofPlus, the first ID card scanner integrated directly into the device. This lets you capture a complete image of a customer's ID card at the teller window, bringing greater protection against losses due to bad checks.

Epson TM-J9100 Features

  • TransScan 2-sided digital check imaging
  • High-speed scanning of up to 30 documents/minute
  • 25-check auto feeder with double check detection
  • Drop-in validation
  • Proven MICR accuracy of 99.8% or greater
  • High-speed printing of receipts and forms
  • One- or two-color, crisp, quiet inkjet printing
  • ProofPlus ID card scanner
  • USB 2.0 compliant

Epson TM-J9100 Specifications

Scanner Type TransScan: CIS (Contact Image Sensor)
ProofPlus: CIS (Contact Image Sensor)
Scanner Media TransScan: Personal- and business-size checks
ProofPlus: ISO/IEC7810 card
Scanner Resolution TransScan: 200 dpi
ProofPlus: 200 dpi
Scanner Mode TransScan: Black and white, 256 shade grayscale
ProofPlus: 256 shade grayscale
Scanner Speed TransScan: 300mm/sec
One-by-one mode: 8-15 checks/min
Continuous mode: 30 checks/min
ProofPlus: 120mm/sec
Scanner Data compression TransScan: CCITT Group 4, JPEG
ProofPlus: JPEG
Scanner Data transmission format TransScan: TIFF, JPEG, Windows Bitmap, Raw
ProofPlus: TIFF, JPEG, Windows Bitmap, Raw
Scanner Memory TransScan: 4MB DRAM
ProofPlus: 4MB DRAM
Printer Interface USB, Dealer option: RS-232, Bi-directional parallel, Ethernet and Connect-It family
Printer Data buffer 4 KB
Printer Speed Character: 14.3 lps (8 lines/inch)/graphic: 43mm/sec. (76mm width paper, full columns print)
Printer Paper thickness Receipt: 0.06 - 0.09mm
Endorsement/Validation: 0.09 - 0.14mm
Printer Ink cartridge SJIC8
Printer Ink yield Up to 20,000,000 characters (mono)
Printer Power 24 VDC±10%
Printer Power consumption 1 A (operating)
Printer Reliability MTBF: 180,000 hours
MICR reliability: 1 million reads
Printer Environmental standards WEEE, RoHS compliant
Printer EMC standards VCCI Class A, FCC Class A, CE marking EN55022 Class A/N55024, Canada EMI, AS/NAS 3548 (CISPR22) Class A
Printer Safety standards UL, CSA, T'V (EN60950)
Printer Method Serial inkjet, 128 nozzles
Printer Resolution 180x180 dpi
Printer Font Font: Font A=12 x 24 dot/Font B=9 x 17 dot
Column capacity: Font A=40 cols/Font B=53 cols (roll receipt), Font A=62 cols/Font B=82 cols (validation station)
Special mode: Font A=43 cols/Font B=60 cols (roll receipt), Font A=67 cols/Font B=93 cols (validation station)
Printer Character size 1.41(W) x 3.38(H)/0.99(W) x 2.4(H)mm
Printer Character set 95 Alphanumeric, 37 International, 128 x 11 Graphic
Printer Bar code UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), 2 of 5 (ITF), Code39, Code93, Code128, CODABAR (NW7)
Printer Characters per inch 15 cpi (Font A)/20 cpi (Font B)
Scanner Thickness .5 to .84mm
Scanning area TransScan: 100x230mm / 3.93x9.05"
ProofPlus: 86x55mm / 3.39x2.16"
Dimensions Overall: 225x180x232mm / 8.85x7.08x9.13" (without feeder pocket)
390x180x232mm / 15.35x7.08x9.13"(with feeder pocket)
Weight 4 kg / 8.81 lbs
With feeder pocket: 4.5 kg /9.92 lbs
