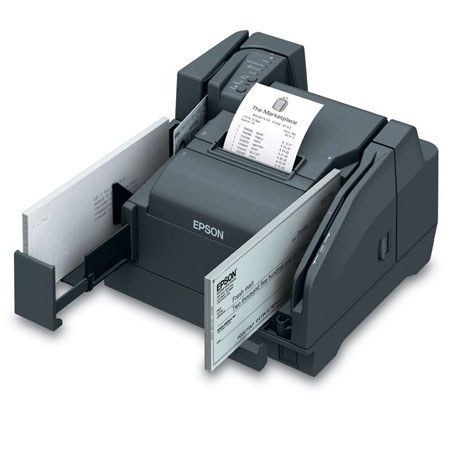

Epson TM-S9000 Multifunction Scanner/Printer, 200dpm Throughput, 180dpi Print Resolution, Upto 300mm/s Print Speed, 4.17x9.25" Scan Area
Your card will only be charged once item ships.
The Epson TM-S9000 Multifunction Scanner/Printer combines more functionality in one small footprint than any other teller scanner/printer available today. From the industry's fastest check scanner and best-selling TM-T88V thermal receipt printer to an inkjet printer for cashiers checks and a 2-sided ID scanner, the TM-S9000 has it all.
The TM-S9000 also offers options for a 3-track MSR, a 2nd pocket to process exceptions or separate documents and a USB hub, so you can select the features you need at your teller stations. Epson is known for its MICR accuracy. The TM-S9000 features an OCR with an improved MICR algorithm that increases MICR accuracy to over 99.9%. And it reads more of the check area to help ensure that even poorly positioned checks are read.
With print speeds up to 300 mm/second, the TM-S9000's thermal printer features fast receipt printing and paper-saving features that can greatly reduce your costs. Unlike competitive models, the TM-S9000 is truly integrated, which means there is only one power pack, one cable and one driver to install. The TM-S9000's scanner is easy to use and tasks like undoing a jam can be done quickly through side doors. It also features self diagnostics for easy maintenance.
|Scanner Throughput||Document: 110, 200 dpm (documents per minute)
ID Card: 1 at a time; multiple feeding is not available
|Scanner Speed||Document: Paper feeding is up to 800mm/s
ID Card: Card feeding is 118mm/s 600 dpi color
|Scanner Area||Document: 106mm x 235mm
ID Card: ISO/IEC7810 card
|Scanner Resolution||Document: 100 dpi, 120 dpi, 200 dpi, 240 dpi interpolated, 300 dpi optical
ID Card: 200 dpi interpolated, 300 dpi, 600 dpi optica
|Scanner Method||Document: CIS (Contact Image Sensor)
ID Card: CIS (Contact Image Sensor)
|Scanner Mode||Document: 24-bit color, 8-bit grayscale, bi-tonal
ID Card: 24-bit color, 8-bit grayscale
|Scanner Capacity||Document Scanner: Auto-input feeder of 100 items; exit pocket of 100 items, optional 2nd pocket of 50 items
ID Card Scanner: 1 ID
|Scanner MICR||E13B and CMC7|
|Scanner Rated life||2 million items|
|Scanner MCBF||Document: 4,940,000 cycles|
|Scanner MTBF||Document Scanner: 180,000 hours|
|Scanner D.K.D.||2 drawers|
|Scanner Factory options||MSR 3 tracks (ISO 7811-6 and AAMVA), HID-Keyboard interface; USB hub 2-ports, USB specification 2.0; 2nd pocket-maximum of 50 items|
|Scanner Power||PS-180, 24 VDC; There is only one power supply for the Scanner and Printer|
|Scanner Environmental Standards||WEEE, RoHS compliant|
|Printer Speed||Thermal: Up to 300mm/s (11.8 inches/sec)|
|Printer Method||Thermal: Direct thermal
Line Inkjet: Line ink, 360 nozzles
|Printer Resolution||180 dpi x 180 dpi|
|Printer Font||Thermal: Font A (default): 12 x 24 / Font B: 9 x 17
Line Inkjet: Font A (default): 12 x 24 / Font B: 9 x 17
|Printer Head life||Line Inkjet: 6 billion shots/nozzle|
|Printer Auto cutter||Thermal: 2 million cuts|
|Printer Roll Paper Diameter||83 mm / 3.27"|
|Printer Paper width||79.5 ± 0.5 mm (3.13 ± 0.02")|
|Printer MCBF||Thermal: 96,000,000 lines|
|Printer MTBF||Thermal: 360,000 hours
Line Inkjet: 180,000 hours
Single pocket: 177x263.8x361mm / 6.97x10.39x14.21"
Two pocket: 177x 298.7x386mm / 6.97x11.76x15.2"
|Weight||Scanner: 5 kg / 11.02 lbs|
