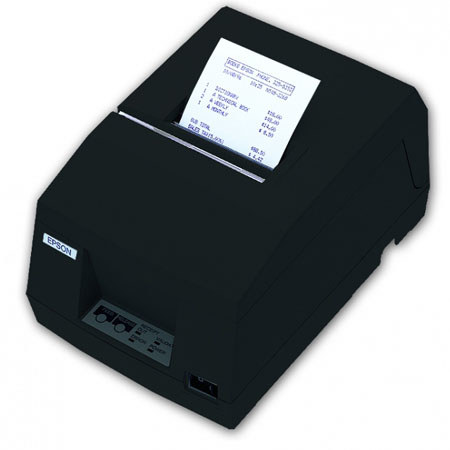

The TM-U325, a one-station, 9-pin dot matrix printer, features a fast print speed of 3.5 lines per second (lps) for 40 columns of print and 6.4 lps for 16 columns of print. The TM-U325 permits bi-directional printing, prints up to 12 lines of validation and has a flexible paper inch setting allowing the customer to print in user-defined formats. This bi-directional printer features multiple-line validation and selectable fonts for added printing versatility.
Other features include semi-automatic paper loading, a built in drawer kick that allows two drawers to be driven and an MCBF of 37 million lines. The TM-U325 conforms to Epson's standard ESC/POS (Epson Standard Code/Point of Sale) command structure that standardizes all printer control codes for the point of sale market. This standard allows for easy system expansion and future upgradeability making the TM-U325 ideal for growing financial institutions.
|Max Resolution ( B&W )||17.8 cpi|
|Character Sizes (mm)||0.049 in x 0.122 in, 0.061 in x 0.122 in|
|Columns||33, 35, 40, 42|
|Media Sizes||Roll (3 in), 7.16 in x 7.16 in|
|Roll Maximum Outer Diameter||3.3 in|
|Media Feeder(s)||1 x manual load, 1 rolls, Roll (3 in), 1 x manual load, 1 sheets, 7.16 in x 7.16 in|
|Connections||1 x USB, IEEE 1284 (EPP/ECP)|
|Compliant Standards||CE, FCC Class A certified, CSA, UL|
|Power Consumption Operational||43 Watt|
|Dimensions (W x D x H)||6.5" x 9.4" x 5.4" / 16.51 x 23.87 x 13.71 cm|
|Weight||5.1 lbs / 2.31 kg|
